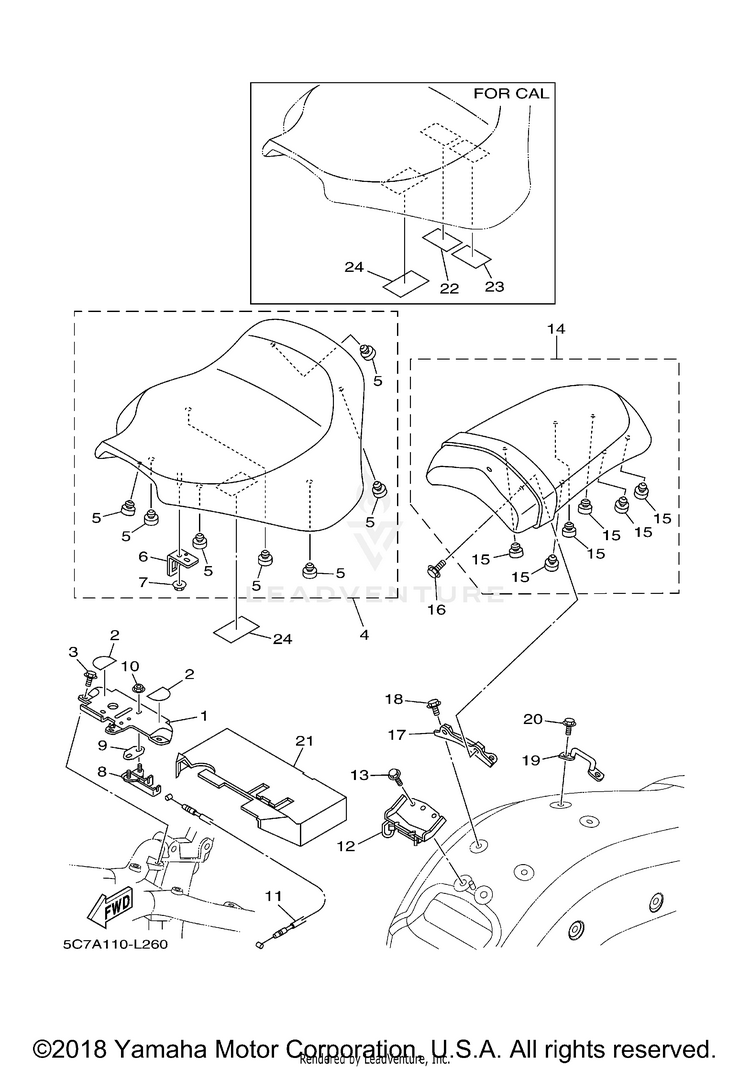

2016 Yamaha Raider XV1900C Seat OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	5C7-21341-00-00	BRACKET, SEAT 1	$50.99	$39.77	Usually ships in 7-10 business days
2	5PX-21735-00-00	SEAL 2	$11.49	$9.42	Usually ships in 7-10 business days
3	95817-08016-00 (replaces part # 90105-08485-00)	BOLT,FLANGE (JN5)	$5.49	$4.28	10+ In-Stock
4	5C7-24710-11-00 (replaces part # 5C7-24710-10-00)	SINGLE SEAT ASSY	$281.99	$233.79	Usually ships in 7-10 business days
5	22W-24741-00-00	PAD, SEAT	$9.49	$7.40	10+ In-Stock
6	4NK-24728-00-00	BRACKET, SEAT	$12.99	$10.65	Usually ships in 7-10 business days
7	95702-06500-00	NUT, WITH WASHER	$2.60	$2.24	10+ In-Stock
8	4BP-24780-00-00	SEAT LOCK ASSY	$105.99	$82.67	Usually ships in 7-10 business days
9	4BP-24792-00-00	PLATE	$10.99	$9.01	Usually ships in 7-10 business days
10	95702-06500-00	NUT, WITH WASHER	$2.60	$2.24	10+ In-Stock
11	5PX-2478E-00-00	CABLE, SEAT LOCK	$22.99	$18.85	Usually ships in 7-10 business days
12	5C7-2475N-00-00	BRACKET	$84.99	$66.29	Usually ships in 7-10 business days
13	95022-08012-00	BOLT, FLANGE	$13.49	$10.52	4 In-Stock
14	5C7-24750-12-00 (replaces part # 5C7-24750-11-00)	TANDEM SEAT ASSY	$237.99	$188.67	Usually ships in 7-10 business days
15	22W-24741-00-00	PAD, SEAT	$9.49	$7.40	10+ In-Stock
16	95022-08012-00	BOLT, FLANGE	$13.49	$10.52	4 In-Stock
17	5C7-2475H-00-00	BRACKET, SEAT LEVER 1	$28.99	$23.77	Usually ships in 7-10 business days
18	95022-08012-00	BOLT, FLANGE	$13.49	$10.52	4 In-Stock
19	1D7-2475R-00-00	BRACKET 6	$18.99	$15.57	Usually ships in 7-10 business days
20	95022-08012-00	BOLT, FLANGE	$13.49	$10.52	4 In-Stock
21	5C7-24796-00-00	COVER	$50.99	$39.77	Usually ships in 7-10 business days
22	34B-21684-00-00	PLATE, ROUTING \| FOR CAL	$7.49	$6.74	3 In-Stock
23	5RU-21686-00-00	PLATE, ROUTING 2 \| FOR CAL	$5.99	$5.39	Usually ships in 7-10 business days
