2016 Yamaha Raider XV1900C Valve OEM Parts Diagram

Submodel RAIDER - XV19CGCR - 2016

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

VALVE

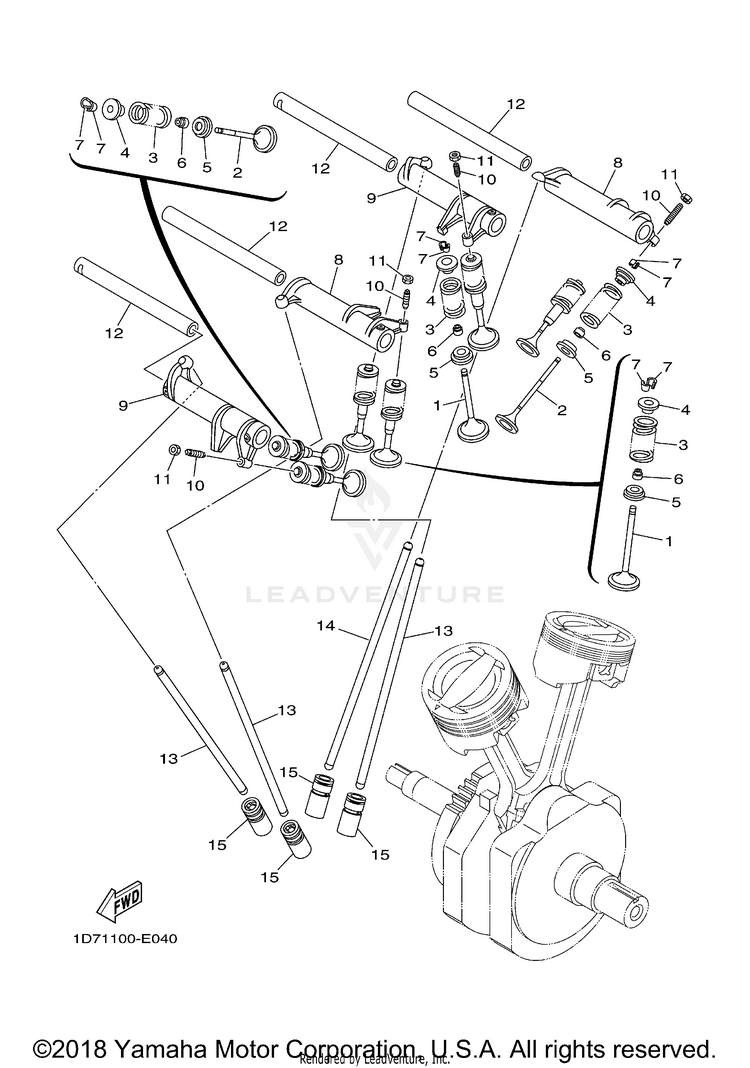

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11D7-12111-00-00VALVE, INTAKE$44.99$36.89Usually ships in 7-10 business days
21D7-12121-00-00VALVE, EXHAUST$75.99$59.27Usually ships in 7-10 business days
31D7-12113-00-00SPRING, VALVE INNER$17.99$14.75Usually ships in 7-10 business days
43YF-12117-01-00RETAINER, VALVE SPRING$16.49$12.868 In-Stock
51D7-12116-00-00SEAT, VALVE SPRING$4.75$4.28Usually ships in 7-10 business days
64KM-12119-00-00SEAL, VALVE STEM$16.49$12.868 In-Stock
74G0-12118-00-00LOCK, VALVE SPRING RETAINER$8.49$6.6210+ In-Stock
81D7-12151-10-00

(replaces part #
1D7-12151-00-00)

ARM, VALVE ROCKER$119.99$93.59Usually ships in 7-10 business days
91D7-12161-10-00

(replaces part #
1D7-12161-00-00)

ARM, VALVE ROCKER 2$122.99$95.93Usually ships in 7-10 business days
1031G-12159-02-00SCREW, VALVE ADJUSTING$10.99$8.574 In-Stock
1131G-12158-00-00NUT, LOCK$7.49$5.845 In-Stock
121D7-12146-00-00SHAFT, ROCKER$35.99$29.51Usually ships in 7-10 business days
131D7-12154-01-00

(replaces part #
1D7-12154-00-00)

ROD, VALVE PUSH$30.99$25.41Usually ships in 7-10 business days
141D7-12144-00-00ROD, VALVE PUSH 2$45.99$37.71Usually ships in 7-10 business days
154WM-12153-10-00LIFTER, VALVE$84.99$66.29Usually ships in 7-10 business days
