2016 Yamaha Stryker Crankshaft Piston OEM Parts Diagram

Submodel STRYKER - XVS13CGCO - 2016

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKSHAFT PISTON

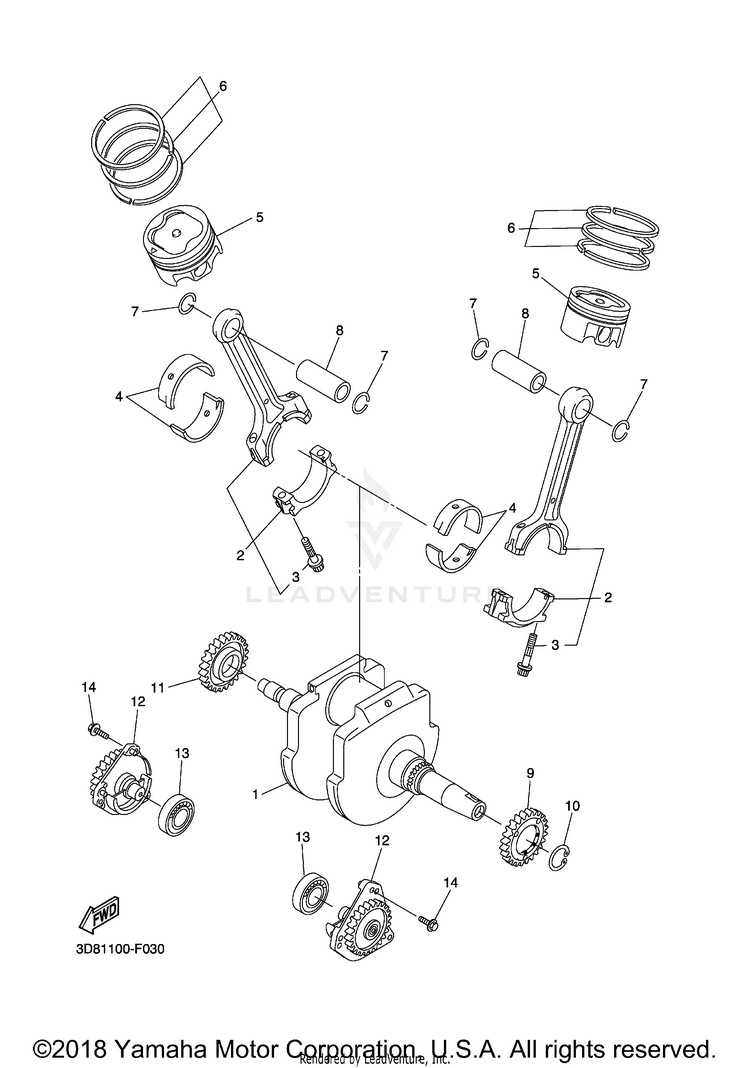

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-5YU-11656-40-00PLANE BEARING, CONNECTING ROD | UR YELLOW$18.99$15.57Usually ships in 7-10 business days
-5YU-11656-10-00PLANE BEARING, CONNECTING ROD | UR BLACK$18.99$15.57Usually ships in 7-10 business days
-5YU-11656-20-00PLANE BEARING, CONNECTING ROD | UR BROWN$18.99$15.57Usually ships in 7-10 business days
-5YU-11656-00-00PLANE BEARING, CONNECTING ROD | UR BLUE$18.99$15.57Usually ships in 7-10 business days
13D8-11400-01-00CRANKSHAFT ASSY$583.99$488.74Usually ships in 7-10 business days
23D8-11650-10-00CONNECTING ROD ASSY$202.99$161.05Usually ships in 7-10 business days
35YU-11654-00-00BOLT, CONNECTING ROD$8.49$7.64Usually ships in 7-10 business days
45YU-11656-30-00PLANE BEARING, CONNECTING ROD | UR GREEN$17.99$14.75Usually ships in 7-10 business days
53D8-11631-00-00PISTON (STD)$176.99$138.05Usually ships in 7-10 business days
61D7-11610-00-00PISTON RING SET (STD)$58.99$46.01Usually ships in 7-10 business days
793450-24154-00CIRCLIP$3.40$2.9210+ In-Stock
85VK-11633-00-00PIN, PISTON$45.99$35.8710+ In-Stock
93D8-11530-00-00BALANCER WEIGHT GEAR COMP.$185.99$147.14Usually ships in 7-10 business days
1099009-40400-00CIRCLIP$4.20$3.78Usually ships in 7-10 business days
113D8-11543-00-00GEAR, 1$117.99$92.03Usually ships in 7-10 business days
123D8-11500-00-00BALANCER ASSY$281.99$234.46Usually ships in 7-10 business days
1393306-20458-00

(replaces part #
93306-20402-00)

BEARING$47.99$37.433 In-Stock
1490109-06015-00

(replaces part #
90110-06060-00)

BOLT$5.49$4.2810+ In-Stock
