2016 Yamaha Stryker Intake 2 OEM Parts Diagram

Submodel STRYKER - XVS13CGCO - 2016

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INTAKE 2

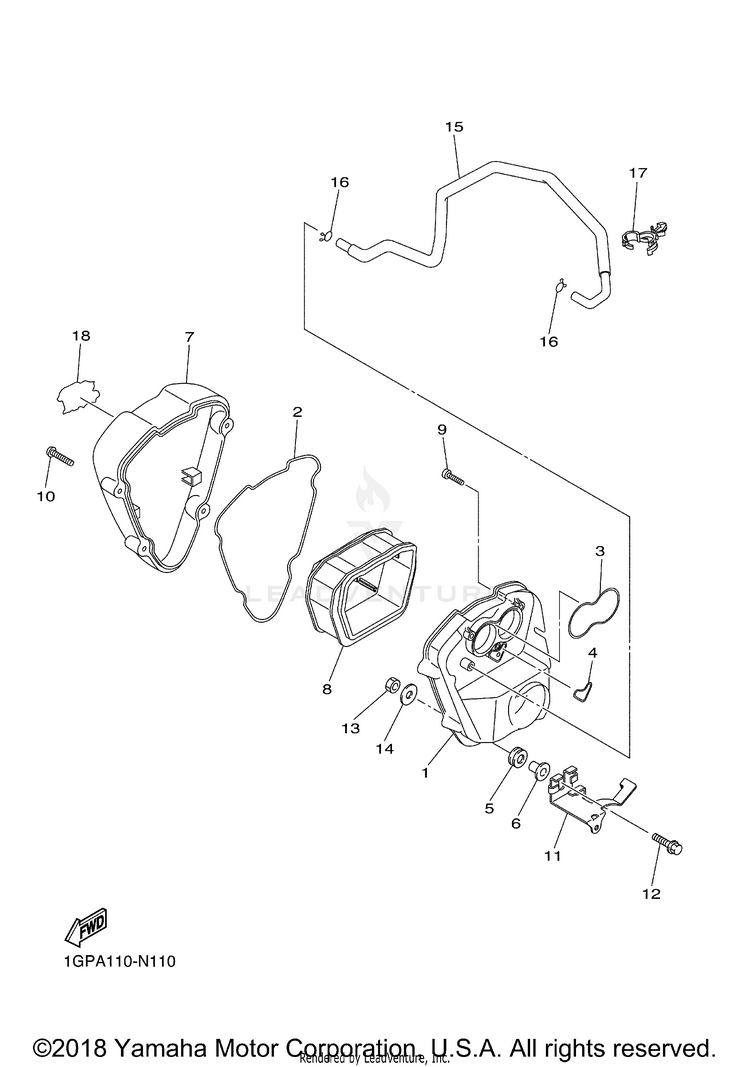

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13D8-14411-02-00CASE, AIR CLEANER 1$126.99$99.05Usually ships in 7-10 business days
251Y-14462-00-00

(replaces part #
4GA-14452-00-00)

SEAL$19.99$15.598 In-Stock
33D8-14457-00-00SEAL$7.49$6.74Usually ships in 7-10 business days
43D8-14462-00-00SEAL$7.49$6.74Usually ships in 7-10 business days
590480-11006-00GROMMET$4.50$4.05Usually ships in 7-10 business days
690387-087L0-00COLLAR$9.49$7.4010+ In-Stock
71GP-14421-02-00CASE, AIR CLEANER 2$233.99$182.51Usually ships in 7-10 business days
83D8-14451-01-00

(replaces part #
3D8-14451-00-00)

ELEMENT, AIR CLEANER$36.99$28.854 In-Stock
991312-05025-00BOLT, HEXAGON SOCKET HEAD$9.49$7.406 In-Stock
1090111-05024-00BOLT, HEX. SOCKET BUTTON$4.50$4.054 In-Stock
113D8-14498-10-00STAY 1$28.99$23.77Usually ships in 7-10 business days
1297017-06020-00

(replaces part #
97012-06020-00)

BOLT$4.06$3.4910+ In-Stock
1395702-06500-00NUT, WITH WASHER$2.60$2.2410+ In-Stock
1490201-06088-00WASHER, PLATE$9.49$7.407 In-Stock
153D8-11166-00-00PIPE, BREATHER 1$65.99$51.47Usually ships in 7-10 business days
1690467-15M14-00

(replaces part #
90467-16195-00)

CLIP$3.55$3.053 In-Stock
1790464-20009-00CLAMP$2.25$2.02Usually ships in 7-10 business days
181GP-1441K-10-00EMBLEM$14.49$11.88Usually ships in 7-10 business days
