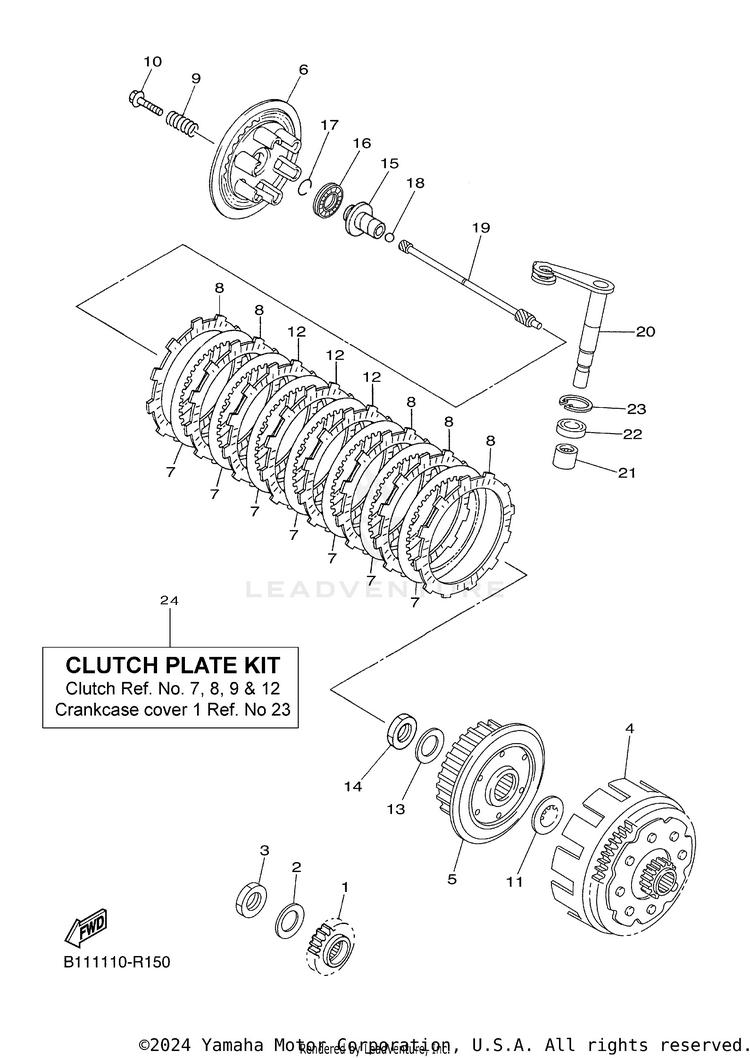

2016 Yamaha YZ450F Clutch OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	2S2-16111-60-00	GEAR, PRIMARY DRIVE	$159.99	$124.79	3 In-Stock
2	90208-20008-00	WASHER, CONICAL SPRING	$7.99	$6.23	6 In-Stock
3	90170-20255-00	NUT	$11.49	$8.96	10+ In-Stock
4	B11-16150-00-00	PRIMARY DRIVEN GEAR COMP.	$508.99	$412.88	Usually ships in 7-10 business days
5	5TA-16371-20-00	BOSS, CLUTCH	$151.99	$118.55	10+ In-Stock
6	2S2-16351-01-00	PLATE, PRESSURE 1	$99.99	$77.99	10+ In-Stock
7	BR9-16324-10-00 (replaces part # 4B1-16324-00-00)	PLATE, CLUTCH 1 \| INCL. IN CLUTCH PLATE KIT	$11.49	$8.96	10+ In-Stock
8	5TA-16321-00-00	PLATE, FRICTION \| INCL. IN CLUTCH PLATE KIT	$28.99	$22.61	10+ In-Stock
9	90501-240A3-00	SPRING, COMPRESSION \| INCL. IN CLUTCH PLATE KIT	$8.49	$6.62	10+ In-Stock
10	90159-06010-00	SCREW, WITH WASHER	$8.49	$6.62	10+ In-Stock
11	5XD-16154-00-00	PLATE, THRUST 1	$16.49	$12.86	10+ In-Stock
12	5VY-16321-00-00	PLATE, FRICTION \| INCL. IN CLUTCH PLATE KIT	$34.99	$27.29	10+ In-Stock
13	90208-20008-00	WASHER, CONICAL SPRING	$7.99	$6.23	6 In-Stock
14	90170-20255-00	NUT	$11.49	$8.96	10+ In-Stock
15	33D-16356-00-00	ROD, PUSH 1	$71.99	$56.15	Usually ships in 7-10 business days
16	93340-21209-00	BEARING	$18.99	$14.81	9 In-Stock
17	93440-10085-00	CIRCLIP	$9.49	$7.40	10+ In-Stock
18	93511-32027-00	BALL	$9.49	$7.40	10+ In-Stock
19	1SL-16357-10-00	ROD, PUSH 2	$50.99	$39.77	3 In-Stock
20	1SL-16381-00-00	PUSH LEVER COMP.	$102.99	$80.33	Usually ships in 7-10 business days
21	93317-11096-00	BEARING	$25.99	$20.27	10+ In-Stock
22	93102-10008-00	OIL SEAL	$6.49	$5.06	10+ In-Stock
23	99009-18500-00	CIRCLIP	-	$1.06	3 In-Stock
24	1SL-W001G-00-00	CLUTCH KIT '14 YZ450 \| NOT SHOWN	$163.99	$127.91	2 In-Stock
	AFTERMARKET ALTERNATIVE	$79.99	$64.99	10+ In-Stock
