2016 Yamaha YZ450F Crankshaft Piston OEM Parts Diagram

Submodel YZ450F - YZ450FGL - 2016

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKSHAFT PISTON

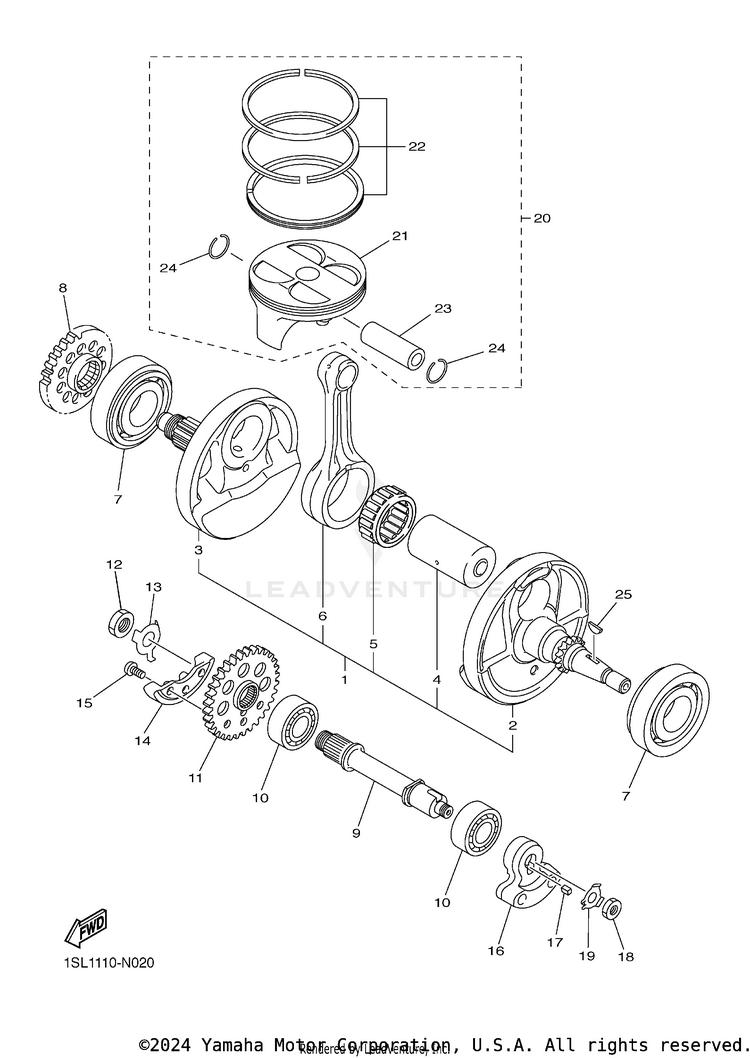

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11SL-11400-03-00CRANKSHAFT ASSY$659.99$532.612 In-Stock
21SL-11412-00-00CRANK 1$277.99$231.09Usually ships in 7-10 business days
31SL-11422-00-00CRANK 2$259.99$216.26Usually ships in 7-10 business days
45TG-11681-01-00PIN, CRANK 1$51.99$40.55Usually ships in 7-10 business days
593310-63458-00BEARING$125.99$98.273 In-Stock
633D-11651-03-00ROD, CONNECTING$140.99$109.97Usually ships in 7-10 business days
793306-30633-00BEARING$110.99$86.5710+ In-Stock
81SL-11536-00-00GEAR, DRIVE$104.99$81.89Usually ships in 7-10 business days
933D-11455-00-00SHAFT 1$190.99$148.97Usually ships in 7-10 business days
1093304-20310-00BEARING$120.99$94.3710+ In-Stock
112S2-11531-00-00GEAR, BALANCE WEIGHT$124.99$97.49Usually ships in 7-10 business days
1290170-14171-00NUT$10.49$8.184 In-Stock
1390215-14287-00WASHER, LOCK$6.49$5.0610+ In-Stock
1433D-11454-00-00WEIGHT 1$84.99$66.29Usually ships in 7-10 business days
1590149-06084-00

(replaces part #
90149-06083-00)

SCREW$9.49$7.404 In-Stock
1633D-11464-00-00WEIGHT 2$95.99$74.87Usually ships in 7-10 business days
1790282-05034-00KEY, STRAIGHT$10.49$8.187 In-Stock
1890170-10405-00NUT$8.49$6.622 In-Stock
1990215-10009-00WASHER, LOCK$16.49$12.8610+ In-Stock
201SL-116A0-00-00PISTON ASSY$220.99$172.3710+ In-Stock
211SL-11631-00-00PISTON (STD)$131.99$102.95Usually ships in 7-10 business days
2233D-11603-00-00PISTON RING SET (STD)$69.99$54.597 In-Stock
2333D-11633-00-00PIN, PISTON$39.99$31.191 In-Stock
2493450-19052-00CIRCLIP, INNER$7.99$6.2310+ In-Stock
2590280-03006-00KEY, WOODRUFF$9.49$7.4010+ In-Stock
