2017 Yamaha Bolt Front Wheel OEM Parts Diagram

Submodel BOLT - XVS95CHCB - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

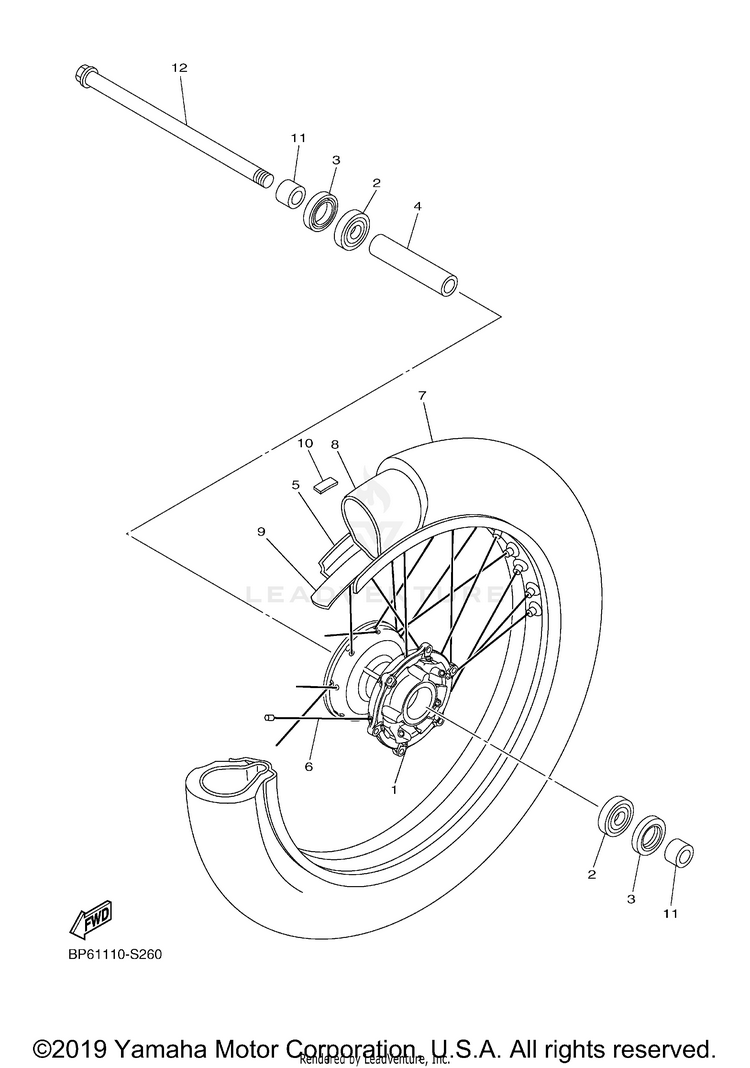

FRONT WHEEL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BP6-25111-00-00HUB, FRONT$219.99$174.12Usually ships in 7-10 business days
293306-30317-00BEARING$43.99$34.3110+ In-Stock
393102-28022-00OIL SEAL$16.49$12.8610+ In-Stock
490387-172A5-00COLLAR$26.99$22.13Usually ships in 7-10 business days
594425-19007-00RIM (2.50-19)$343.99$285.81Usually ships in 7-10 business days
6BP6-25104-00-00SPOKE SET, FRONT$206.99$163.70Usually ships in 7-10 business days
794110-19039-00TIRE | BRIDGESTONE$285.99$226.94Usually ships in 7-10 business days
894210-19222-00TUBE (100/90-19 M/C TR4) | BRIDGESTONE$53.99$42.111 In-Stock
994321-19157-00BAND, RIM (2.15-19) | BRIDGESTONE$3.76$3.38Usually ships in 7-10 business days
102CR-25398-00-00BALANCER, WHEEL (5G) | UN$5.99$5.39Usually ships in 7-10 business days
1190387-173R6-00COLLAR$33.99$27.87Usually ships in 7-10 business days
123MA-25181-10-00AXLE, WHEEL$69.99$54.59Usually ships in 7-10 business days
