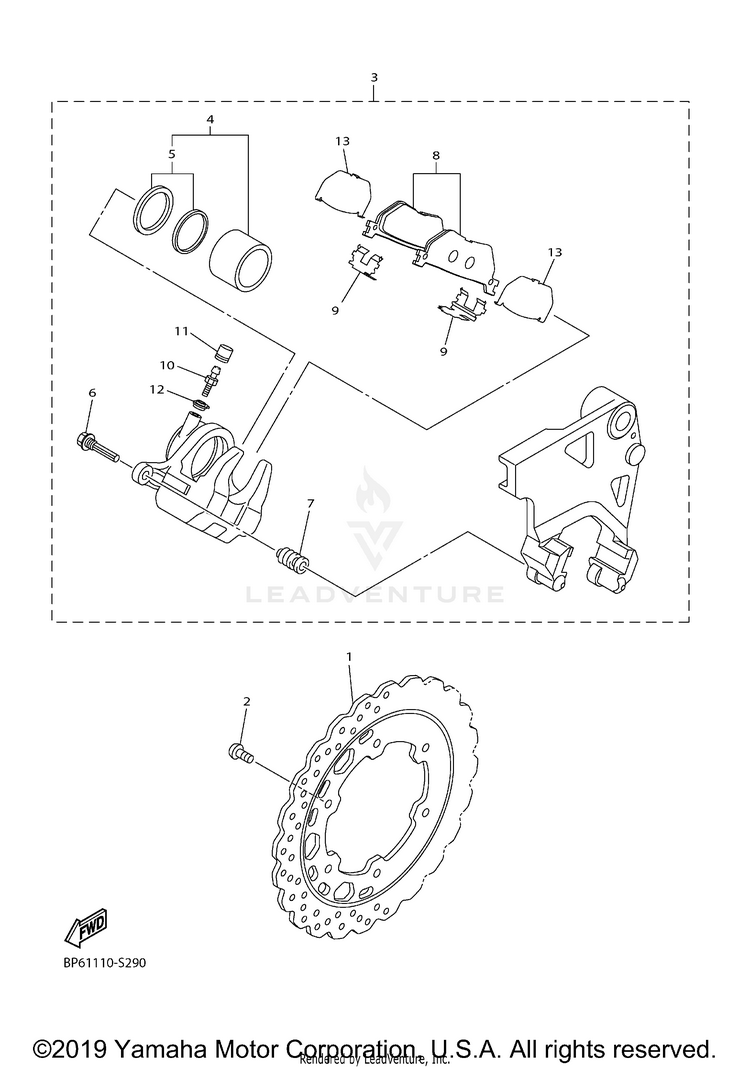

REAR BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11TP-2582W-00-00DISC, REAR BRAKE 2$232.99$181.73Usually ships in 7-10 business days
290111-08053-00

(replaces part #
90109-081F0-00)

BOLT,HEX. SOCKET BUT$10.49$8.6010+ In-Stock
31TP-2580W-00-00CALIPER ASSY, REAR 2$509.99$412.20Usually ships in 7-10 business days
41D7-25802-00-00

(replaces part #
1D7-W0057-00-00)

PISTON ASSY, CALIPER$61.99$48.35Usually ships in 7-10 business days
55JW-25803-00-00

(replaces part #
5JW-W0047-00-00)

CALIPER SEAL KIT$17.99$14.75Usually ships in 7-10 business days
63P6-25914-00-00PIN, SLIDE$17.99$14.75Usually ships in 7-10 business days
74TT-25937-00-00BOOT 2$17.99$14.75Usually ships in 7-10 business days
83D8-25806-00-00

(replaces part #
1D7-W0046-00-00)

BRAKE PAD KIT 2$52.99$41.335 In-Stock
91D7-25919-00-00SUPPORT, PAD$19.99$16.39Usually ships in 7-10 business days
105GM-25824-00-00SCREW, BLEED$7.49$6.74Usually ships in 7-10 business days
111D7-25825-00-00CAP$8.49$6.622 In-Stock
125GM-25975-00-00RUBBER, BUSHING$4.85$4.36Usually ships in 7-10 business days
135GJ-25827-00-00SHIM, CALIPER$14.49$11.88Usually ships in 7-10 business days
