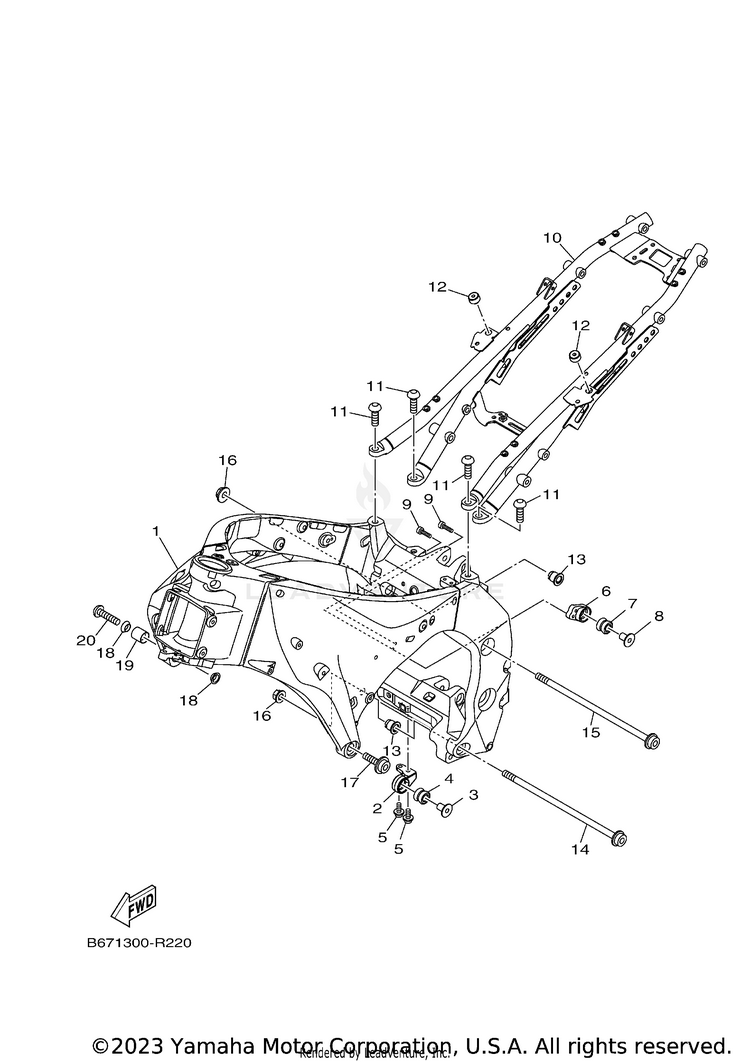

2017 Yamaha FZ-10 Frame OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	B67-21110-00-00	FRAME COMP.	$2,943.99	$2,943.99	Usually ships in 7-10 business days
2	B67-21435-00-00	BRACKET, MUFFLER 1	$54.99	$42.89	Usually ships in 7-10 business days
3	90387-08021-00	COLLAR	$11.49	$8.96	4 In-Stock
4	5VY-14747-00-00	DAMPER, MUFFLER	$15.49	$12.08	10+ In-Stock
5	90110-06248-00	BOLT, HEXAGON SOCKET HEAD	$4.05	$3.48	8 In-Stock
6	2CR-21436-00-00	BRACKET, MUFFLER 2	$24.99	$20.49	Usually ships in 7-10 business days
7	5VY-14747-00-00	DAMPER, MUFFLER	$15.49	$12.08	10+ In-Stock
8	90387-08021-00	COLLAR	$11.49	$8.96	4 In-Stock
9	91312-06016-00	BOLT, HEXAGON SOCKET HEAD	$6.49	$5.06	10+ In-Stock
10	B67-21190-00-00	REAR FRAME COMP.	$683.99	$554.10	Usually ships in 7-10 business days
11	90149-10065-00 (replaces part # 90149-10064-00)	SCREW	$5.49	$4.94	Usually ships in 7-10 business days
12	157-27114-00-00	STOPPER, MAIN STAND	$10.99	$8.57	1 In-Stock
13	5YU-21495-00-00	BOLT, ENGINE ADJUSTING	$18.99	$15.57	Usually ships in 7-10 business days
14	90110-12010-00	BOLT, HEXAGON SOCKET HEAD	$30.99	$25.41	Usually ships in 7-10 business days
15	90110-12008-00	BOLT, HEXAGON SOCKET HEAD	$25.99	$21.31	Usually ships in 7-10 business days
16	90179-12004-00	NUT	$8.49	$6.62	10+ In-Stock
17	90110-12007-00	BOLT, HEXAGON SOCKET HEAD	$7.49	$6.74	1 In-Stock
18	14B-21414-00-00	BOSS, ENGINE MOUNT	$24.99	$20.49	Usually ships in 7-10 business days
19	14B-21424-00-00	BOSS, ENGINE MOUNT	$34.99	$28.69	Usually ships in 7-10 business days
20	90111-12003-00	BOLT, HEX. SOCKET BUTTON	$8.49	$7.64	Usually ships in 7-10 business days
