2017 Yamaha FZ-10 Intake OEM Parts Diagram

Submodel FZ10 - FZ10HCB - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INTAKE

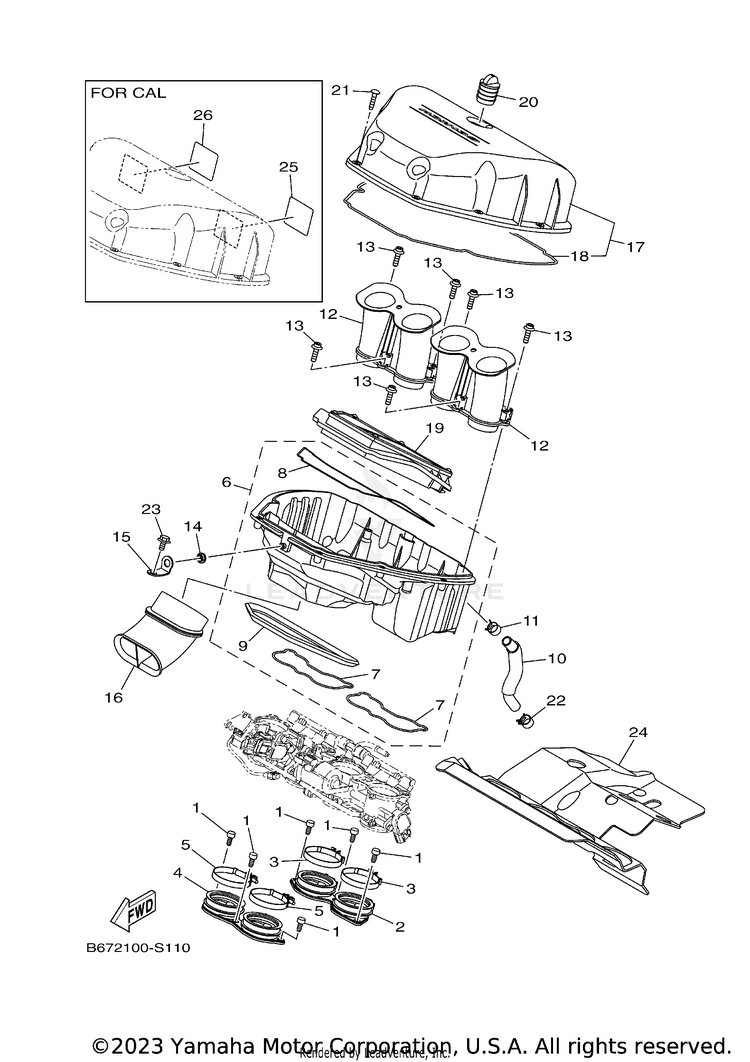

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
191312-06014-00

(replaces part #
90110-06168-00)

BOLT$5.49$4.2810+ In-Stock
22CR-13635-00-00JOINT, INTAKE 1$57.99$45.23Usually ships in 7-10 business days
390450-60004-00HOSE CLAMP ASSY$18.49$14.426 In-Stock
42CR-13636-00-00JOINT, INTAKE 2$57.99$45.23Usually ships in 7-10 business days
590450-60004-00HOSE CLAMP ASSY$18.49$14.426 In-Stock
6B67-14411-00-00CASE, AIR CLEANER 1$133.99$104.51Usually ships in 7-10 business days
72CR-14457-00-00SEAL$8.49$7.64Usually ships in 7-10 business days
82CR-14462-00-00SEAL$12.99$10.65Usually ships in 7-10 business days
92CR-14425-00-00DAMPER 1$4.65$4.18Usually ships in 7-10 business days
102CR-15393-00-00PIPE, BREATHER 2$15.49$12.70Usually ships in 7-10 business days
1190467-15001-00CLIP$8.49$7.641 In-Stock
12B67-14469-01-00

(replaces part #
B67-14469-00-00)

FUNNEL, AIR$53.99$42.11Usually ships in 7-10 business days
1390110-06163-00BOLT, HEXAGON SOCKET HEAD$11.49$8.9610+ In-Stock
1490480-12010-00GROMMET$6.49$5.84Usually ships in 7-10 business days
15B67-14498-00-00STAY 1$6.99$6.29Usually ships in 7-10 business days
16B67-14437-00-00DUCT$53.99$42.11Usually ships in 7-10 business days
17B67-14421-00-00CASE, AIR CLEANER 2$112.99$88.13Usually ships in 7-10 business days
182CR-14452-00-00SEAL$21.99$18.03Usually ships in 7-10 business days
192CR-14451-01-00

(replaces part #
2CR-14451-00-00)

ELEMENT, AIR CLEANER$43.99$34.311 In-Stock
205VY-14862-00-00PLUG$10.99$9.01Usually ships in 7-10 business days
2190160-05013-00SCREW, ROUND TAPPING$9.49$7.408 In-Stock
2290467-160A6-00CLIP$3.50$3.15Usually ships in 7-10 business days
2390119-06051-00BOLT, WITH WASHER$9.49$7.405 In-Stock
242CR-12682-10-00PROTECTOR, HEAT$68.99$53.81Usually ships in 7-10 business days
2514B-21684-00-00PLATE, ROUTING | FOR CAL$6.49$5.84Usually ships in 7-10 business days
262CR-21686-00-00PLATE, ROUTING 2 | FOR CAL$8.49$7.64Usually ships in 7-10 business days
