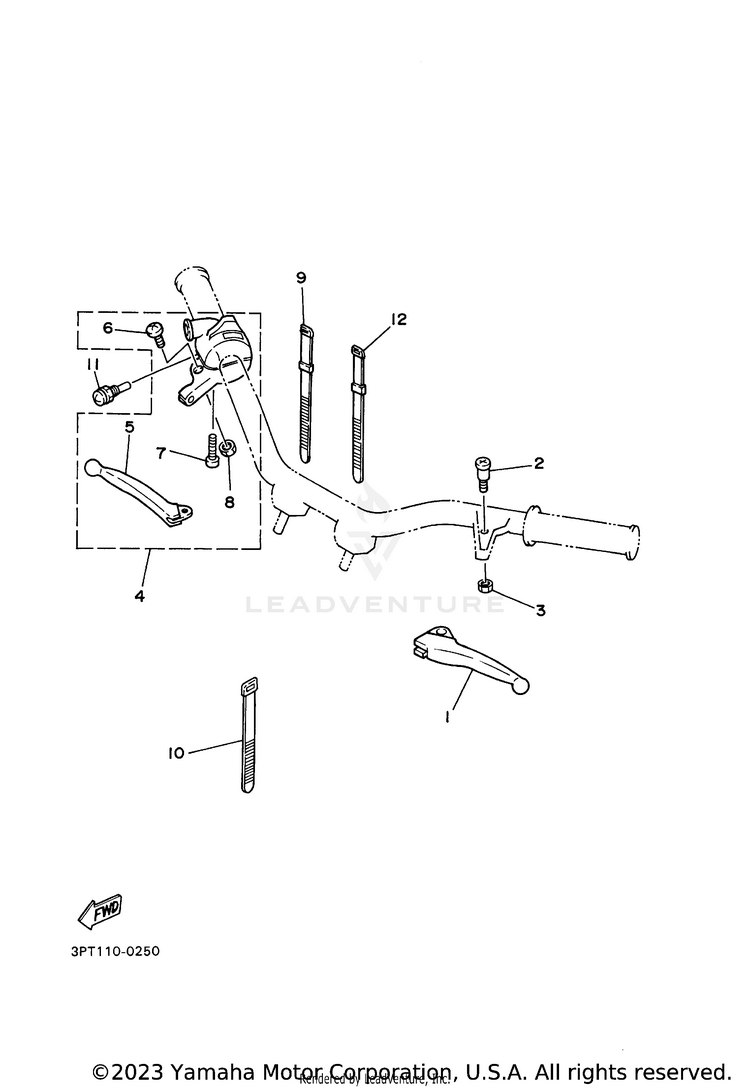

2017 Yamaha PW50 YZinger Handle Switch Lever OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	2T4-83912-03-00	LEVER 1	$19.99	$15.59	6 In-Stock
2	90149-05162-00	SCREW	$10.49	$8.18	10+ In-Stock
3	95617-05100-00 (replaces part # 95607-05100-00)	NUT, U	$10.49	$8.18	10+ In-Stock
4	5PG-82920-01-00	LEVER HOLDER ASSY (RIGHT)	$131.99	$102.95	10+ In-Stock
5	2T4-83922-03-00	LEVER 2	$18.99	$14.81	10+ In-Stock
6	90149-05119-00	SCREW	$10.49	$8.18	3 In-Stock
7	98507-05025-00	SCREW, PAN HEAD	$9.49	$7.40	10+ In-Stock
8	95617-05100-00 (replaces part # 95607-05100-00)	NUT, U	$10.49	$8.18	10+ In-Stock
9	437-83936-01-00	BAND, SWITCH CORD	$8.49	$6.62	10+ In-Stock
10	90465-13M39-00	CLAMP	$5.99	$5.39	Usually ships in 7-10 business days
11	4X4-26257-00-00	STOPPER	$9.49	$7.40	10+ In-Stock
12	90465-10098-00	CLAMP	$2.80	$2.41	7 In-Stock
