2017 Yamaha PW50 YZinger Steering Handle Cable OEM Parts Diagram

Submodel PW50 - PW50H2 - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING HANDLE CABLE

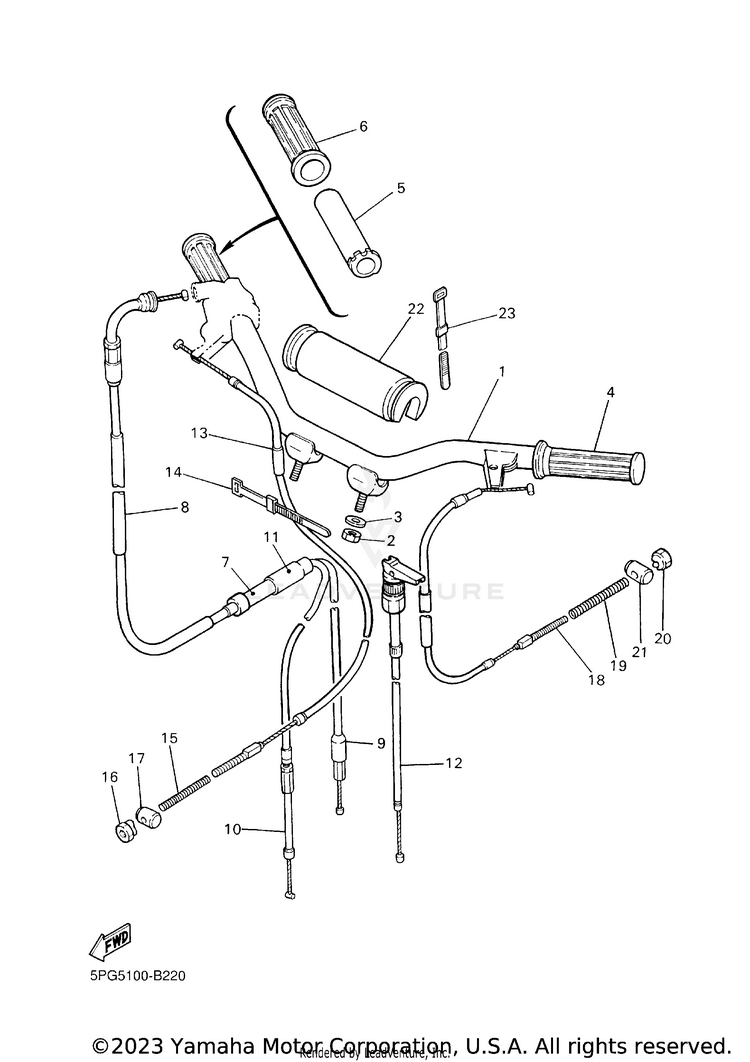

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13PT-26111-00-00HANDLEBAR$93.99$73.311 In-Stock
295617-08100-00

(replaces part #
95607-08100-00)

NUT, U$10.49$8.1810+ In-Stock
32E9-26129-00-00WASHER$5.99$4.674 In-Stock
44X4-26241-00-00GRIP$25.99$20.278 In-Stock
54X4-26243-00-00TUBE, THROTTLE GUIDE$24.99$19.4910+ In-Stock
64X4-26242-00-00GRIP (RIGHT)$25.99$20.272 In-Stock
74U1-26261-00-00

(replaces part #
266-26261-00-00)

CONNECTOR, CABLE$43.99$34.3110+ In-Stock
84X4-26311-11-00

(replaces part #
4X4-26311-10-00)

CABLE,THROTTLE 1$23.99$20.7110+ In-Stock
AFTERMARKET ALTERNATIVE
$13.99$9.9910+ In-Stock
95PG-26312-00-00CABLE, THROTTLE 2$10.99$8.5710+ In-Stock
104X4-26321-10-00CABLE, PUMP$19.99$15.598 In-Stock
115L6-26272-00-00CAP$9.49$7.409 In-Stock
124X4-26331-01-00CABLE, STARTER 1$44.99$35.0910+ In-Stock
133PT-26341-00-00WIRE, BRAKE 1$25.99$20.277 In-Stock
14437-83936-11-00

(replaces part #
3TB-83936-00-00)

BAND, SWITCH CORD$5.00$4.3010+ In-Stock
1590501-10513-00SPRING, COMPRESSION$9.49$7.407 In-Stock
1690179-06411-00NUT, SPECIAL SHAPE$9.49$7.409 In-Stock
1790249-12008-00PIN, SPECIAL SHAPE$9.49$7.4010+ In-Stock
184X4-26351-10-00CABLE, BRAKE$26.99$21.0510+ In-Stock
1990501-10074-00SPRING, COMPRESSION$10.49$8.187 In-Stock
2090179-06411-00NUT, SPECIAL SHAPE$9.49$7.409 In-Stock
2190249-12008-00PIN, SPECIAL SHAPE$9.49$7.4010+ In-Stock
2236R-26124-10-00PROTECTOR, HANDLEBAR$34.99$27.294 In-Stock
23437-83936-11-00BAND, SWITCH CORD$5.00$4.3010+ In-Stock
