2017 Yamaha RAPTOR 90 Electrical 1 OEM Parts Diagram

Submodel RAPTOR 90 - YFM09RYXHW - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 1

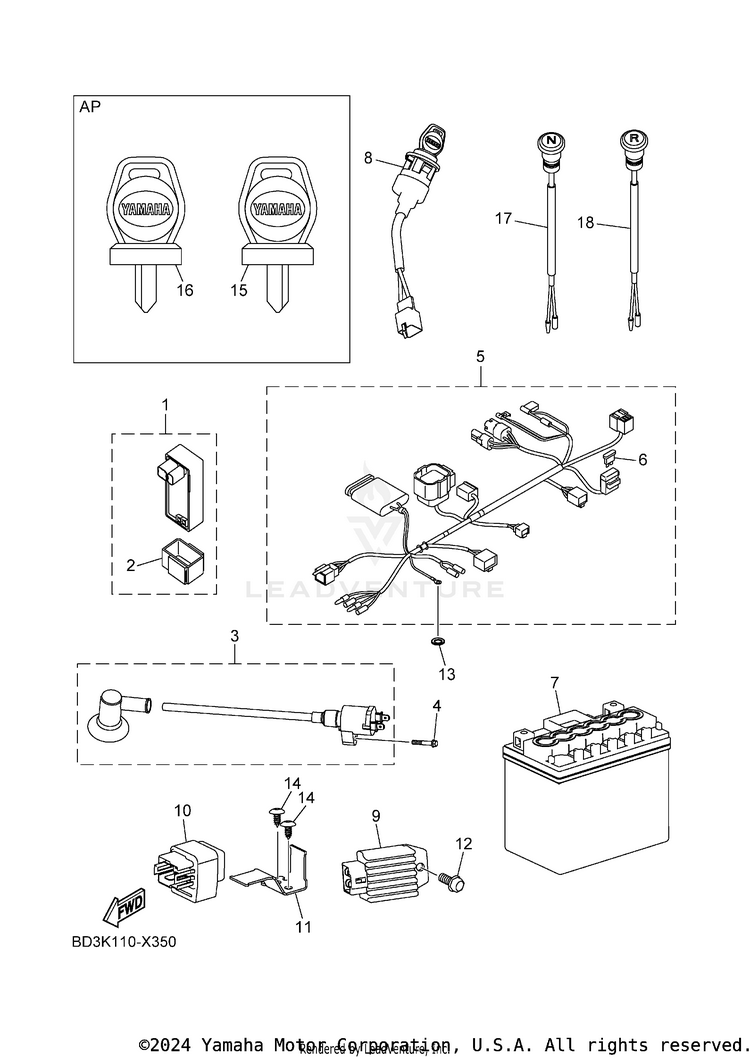

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BD3-H5504-20-00

(replaces part #
BD3-H5504-00-00)

CDI$486.99$403.25Usually ships in 7-10 business days
2BD3-H5546-00-00BAND$24.99$20.49Usually ships in 7-10 business days
3BD3-H2320-00-00IGNITION COIL ASSY$170.99$133.37Usually ships in 7-10 business days
4BD3-F7435-10-00BOLT$2.40$2.16Usually ships in 7-10 business days
5BD3-H2590-00-00WIRE HARNESS ASSY$321.99$251.15Usually ships in 7-10 business days
6BD3-H2151-00-00FUSE$19.49$15.98Usually ships in 7-10 business days
7YTX-5LBS0-00-00

(replaces part #
BD3-H2100-00-00)

YTX5LBS YUASA BATTE$76.99$73.274 In-Stock
8BD3-H2510-10-00

(replaces part #
BD3-H2510-00-00)

MAIN SWITCH ASSY$77.99$60.83Usually ships in 7-10 business days
9BD3-H1960-00-00RECTIFIER & REGULATOR ASSY$92.99$72.53Usually ships in 7-10 business days
10BD3-H1940-00-00STARTER RELAY ASSY$77.99$60.83Usually ships in 7-10 business days
11BD3-H1948-00-00BRACKET$15.49$12.70Usually ships in 7-10 business days
12BD3-F8331-10-00BOLT, LEG SHIELD$4.25$3.82Usually ships in 7-10 business days
13BD3-F3456-10-00WASHER$2.90$2.61Usually ships in 7-10 business days
14BD3-F2969-10-00SCREW, 1$2.80$2.52Usually ships in 7-10 business days
15BD3-HA8L1-00-00BLANK KEY 1 | AP$19.49$15.98Usually ships in 7-10 business days
16BD3-HA8L2-00-00BLANK KEY 2 | AP$20.99$17.21Usually ships in 7-10 business days
17BD3-H3530-00-00PILOT LIGHT ASSY$31.99$24.953 In-Stock
18BD3-H3530-10-00PILOT LIGHT ASSY$31.99$24.952 In-Stock
