2017 Yamaha RAPTOR 90 Shift Shaft OEM Parts Diagram

Submodel RAPTOR 90 - YFM09RYXHW - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT SHAFT

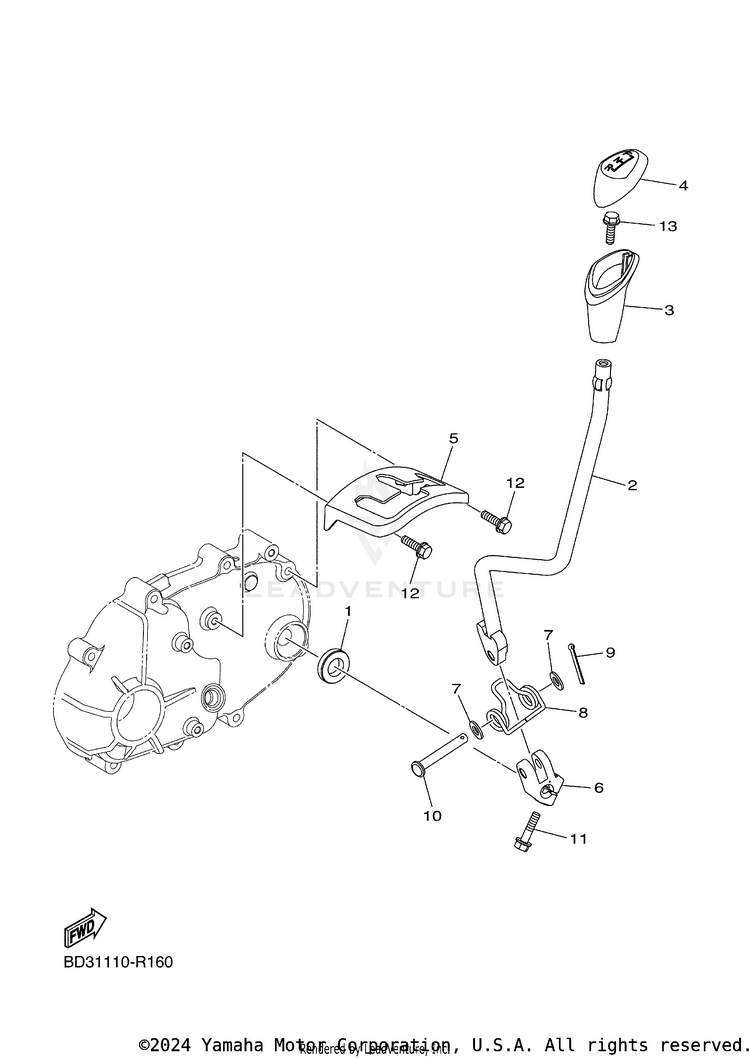

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BD3-G3882-00-00OIL SEAL$8.49$7.64Usually ships in 7-10 business days
2BD3-E8190-00-00LEVER COMP. 1$85.99$67.07Usually ships in 7-10 business days
3BD3-E8174-00-00KNOB, SHIFT LEVER$33.99$27.87Usually ships in 7-10 business days
4BD3-E7496-00-00KNOB$8.49$6.624 In-Stock
5BD3-E8172-00-00GUIDE, SHIFT$58.99$46.01Usually ships in 7-10 business days
6BD3-E8179-00-00GUIDE$101.99$79.55Usually ships in 7-10 business days
7BD3-E5615-10-00WASHER$4.25$3.82Usually ships in 7-10 business days
8BD3-E8196-00-00SPRING, RETURN$25.99$21.31Usually ships in 7-10 business days
9BD3-F146E-10-00PIN 2$3.00$2.70Usually ships in 7-10 business days
10BD3-E8125-10-00SHAFT, SHIFT$8.49$7.64Usually ships in 7-10 business days
11BD3-G8171-10-00BOLT$4.25$3.82Usually ships in 7-10 business days
12BD3-H1452-10-00BOLT$2.95$2.66Usually ships in 7-10 business days
13BD3-H1552-10-00BOLT$5.99$5.39Usually ships in 7-10 business days
