2017 Yamaha RAPTOR 90 Seat OEM Parts Diagram

Submodel RAPTOR 90 - YFM09RYXHL - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

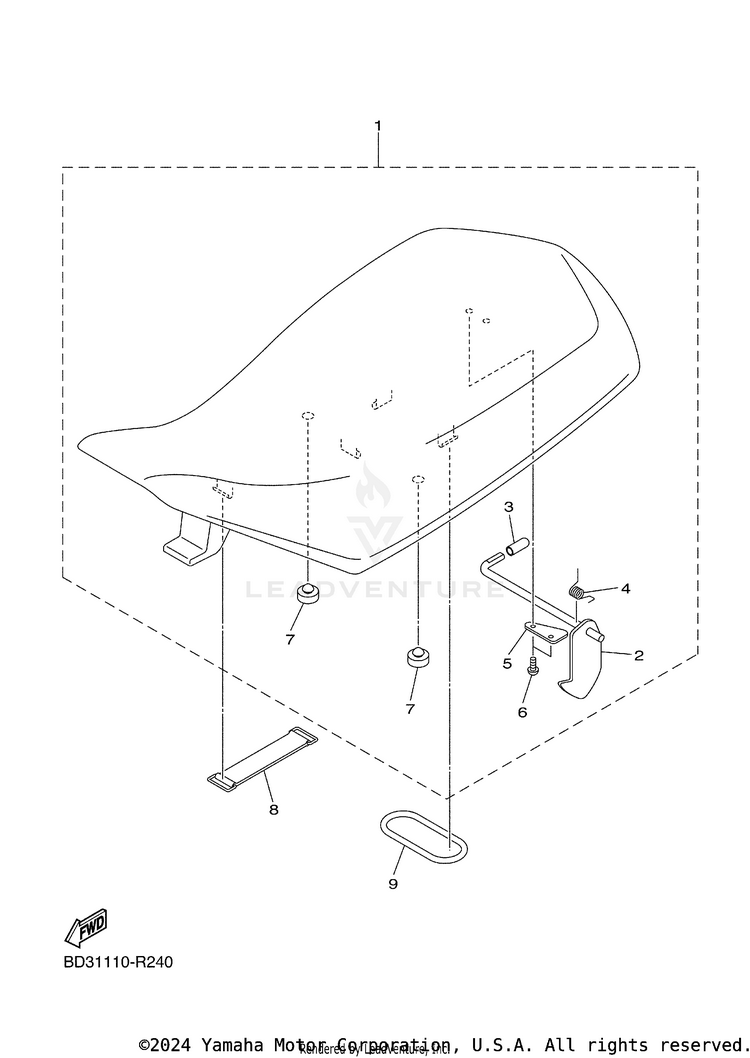

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BD3-F4710-20-00

(replaces part #
BD3-F4710-10-00)

SINGLE SEAT ASSY$426.99$333.73Usually ships in 7-10 business days
2BD3-F4760-10-00SEAT LEVER ASSY$50.99$39.77Usually ships in 7-10 business days
3BD3-F476M-10-00

(replaces part #
BD3-F476M-00-00)

CAP,CASING$5.49$4.94Usually ships in 7-10 business days
4BD3-F4758-10-00SPRING$6.49$5.84Usually ships in 7-10 business days
5BD3-F4775-10-00BRACKET, SEAT LEVER$32.99$27.05Usually ships in 7-10 business days
6BD3-F11C5-10-00SCREW 1$4.30$3.87Usually ships in 7-10 business days
7BD3-F7114-00-00STOPPER, MAIN STAND$10.49$8.60Usually ships in 7-10 business days
8BD3-F4398-00-00BAND 1$10.49$8.60Usually ships in 7-10 business days
9BD3-F4648-00-00O-RING$4.95$4.262 In-Stock
