2017 Yamaha RAPTOR 90 Valve OEM Parts Diagram

Submodel RAPTOR 90 - YFM09RYXHL - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

VALVE

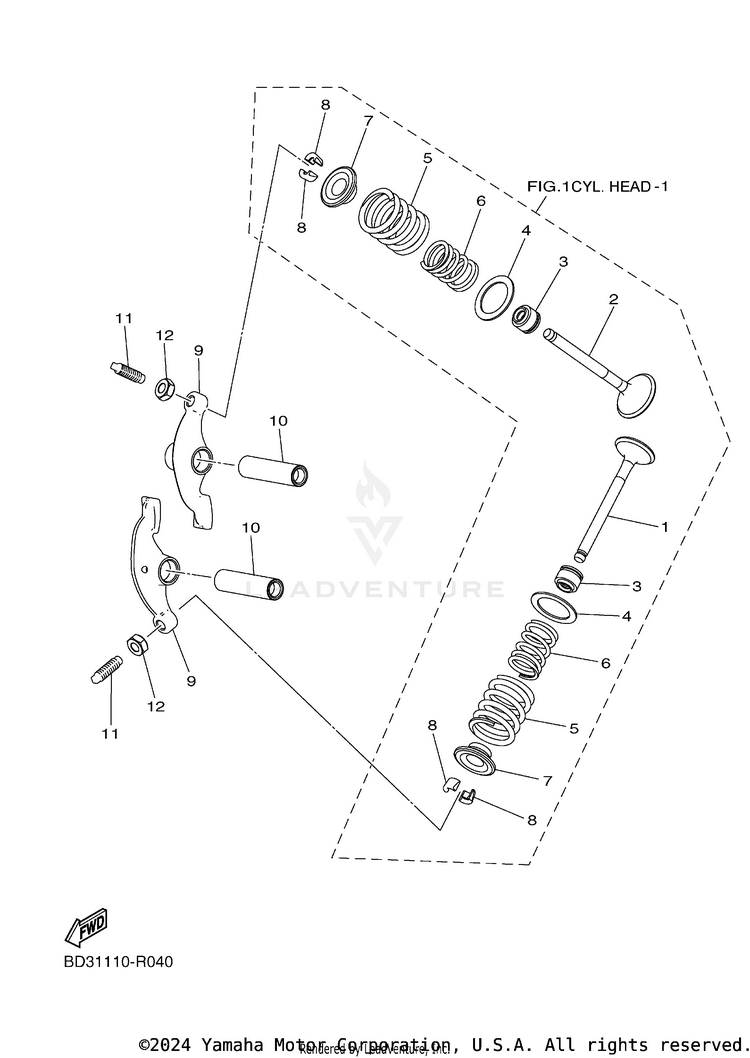

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BD3-E2121-00-00VALVE, EXHAUST$60.99$47.57Usually ships in 7-10 business days
2BD3-E2111-00-00VALVE, INTAKE$38.99$31.97Usually ships in 7-10 business days
3BD3-E2119-00-00SEAL, VALVE STEM$8.49$7.64Usually ships in 7-10 business days
4BD3-E2116-00-00SEAT, VALVE SPRING$2.75$2.48Usually ships in 7-10 business days
5BD3-E2113-00-00SPRING, VALVE 1$11.49$9.42Usually ships in 7-10 business days
6BD3-E2114-00-00SPRING, VALVE 2$9.49$8.54Usually ships in 7-10 business days
7BD3-E2117-00-00RETAINER, VALVE SPRING$13.49$11.06Usually ships in 7-10 business days
8BD3-E2118-00-00LOCK, VALVE SPRING RETAINER$4.20$3.616 In-Stock
9BD3-E2151-00-00ARM, VALVE ROCKER$32.99$27.05Usually ships in 7-10 business days
10BD3-E2146-00-00SHAFT, ROCKER$8.49$7.64Usually ships in 7-10 business days
11BD3-E2159-00-00SCREW, VALVE ADJUSTING$9.49$8.54Usually ships in 7-10 business days
12BD3-E2158-00-00NUT, LOCK$4.60$4.14Usually ships in 7-10 business days
