2017 Yamaha SCR950 Handle Switch Lever OEM Parts Diagram

Submodel SR950 - SCR95HCR - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

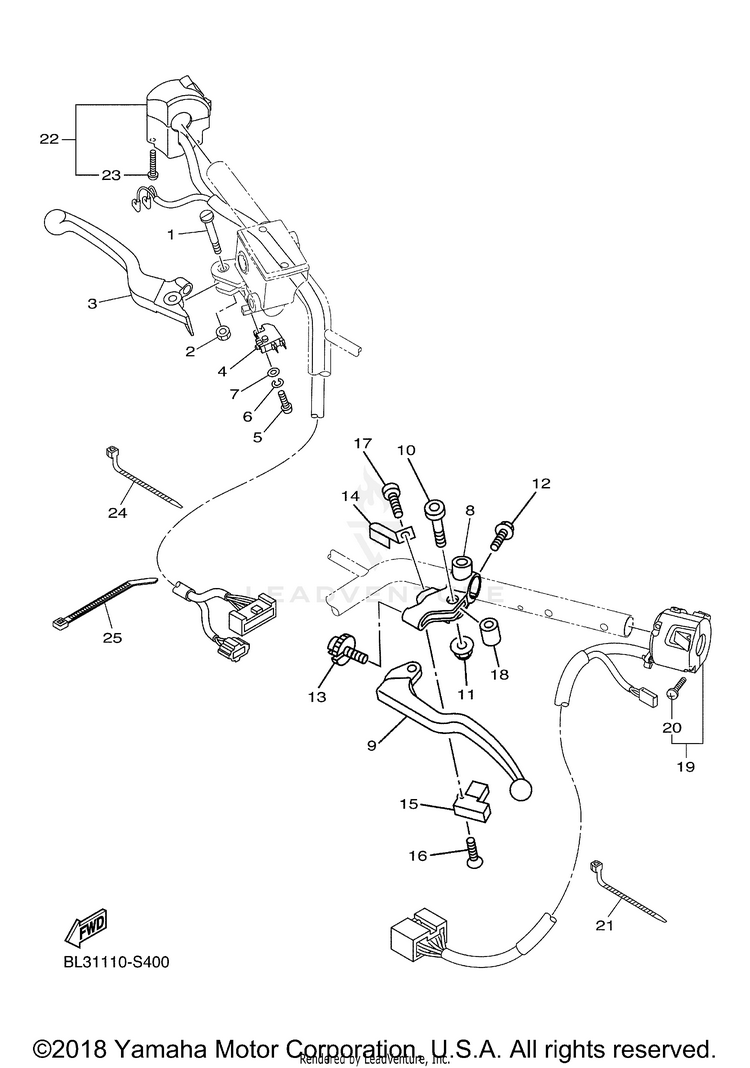

HANDLE SWITCH LEVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15VS-2589F-00-00BOLT, LEVER$15.49$12.082 In-Stock
295617-06100-00NUT, U$2.90$2.4910+ In-Stock
3B33-83922-00-00LEVER 2$45.99$37.71Usually ships in 7-10 business days
41HP-83980-03-00

(replaces part #
1HP-83980-01-00)

FRONT STOP SWITCH AS$34.99$27.294 In-Stock
598517-04012-00

(replaces part #
98502-04012-00)

SCREW,PANHEAD$4.20$3.6110+ In-Stock
692990-04100-00

(replaces part #
92902-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
792990-04600-00

(replaces part #
92902-04600-00)

WASHER, PLATE$0.99$0.907 In-Stock
81B3-82911-00-00HOLDER, LEVER 1$44.99$35.094 In-Stock
95EB-83912-03-00LEVER 1$59.99$46.794 In-Stock
102C0-83945-00-00BOLT, LEVER$11.99$9.355 In-Stock
1195604-06200-00

(replaces part #
95607-06200-00)

NUT, U FLANGE$2.95$2.5410+ In-Stock
1295027-06020-00BOLT, FLANGE-$2.8110+ In-Stock
135LV-83951-00-00BOLT, CABLE ADJUSTING$63.99$49.91Usually ships in 7-10 business days
144XV-83929-00-00PLATE, SPRING$12.99$10.65Usually ships in 7-10 business days
153YX-82917-01-00SWITCH$47.99$37.434 In-Stock
1690151-03003-00

(replaces part #
98704-03020-00)

SCREW, COUNTERSUNK$6.99$5.4510+ In-Stock
1798507-04010-00SCREW, PAN HEAD$3.65$3.1410+ In-Stock
185JJ-83913-00-00COLLAR, LEVER 1$9.49$7.4010+ In-Stock
19BL3-83972-00-00SWITCH, HANDLE 4$225.99$176.27Usually ships in 7-10 business days
2098517-04025-00

(replaces part #
98507-04025-00)

SCREW, PAN HEAD$3.30$2.8410+ In-Stock
2190464-15195-00

(replaces part #
90464-13073-00)

CLAMP$4.41$3.7910+ In-Stock
22BL3-83963-00-00SWITCH, HANDLE 3$177.99$138.83Usually ships in 7-10 business days
2398507-05045-00SCREW, PAN HEAD$10.49$8.183 In-Stock
2490464-15195-00

(replaces part #
90464-13073-00)

CLAMP$4.41$3.7910+ In-Stock
2590465-10098-00CLAMP$2.80$2.417 In-Stock
