2017 Yamaha SCR950 Steering Handle Cable OEM Parts Diagram

Submodel SR950 - SCR95HCR - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

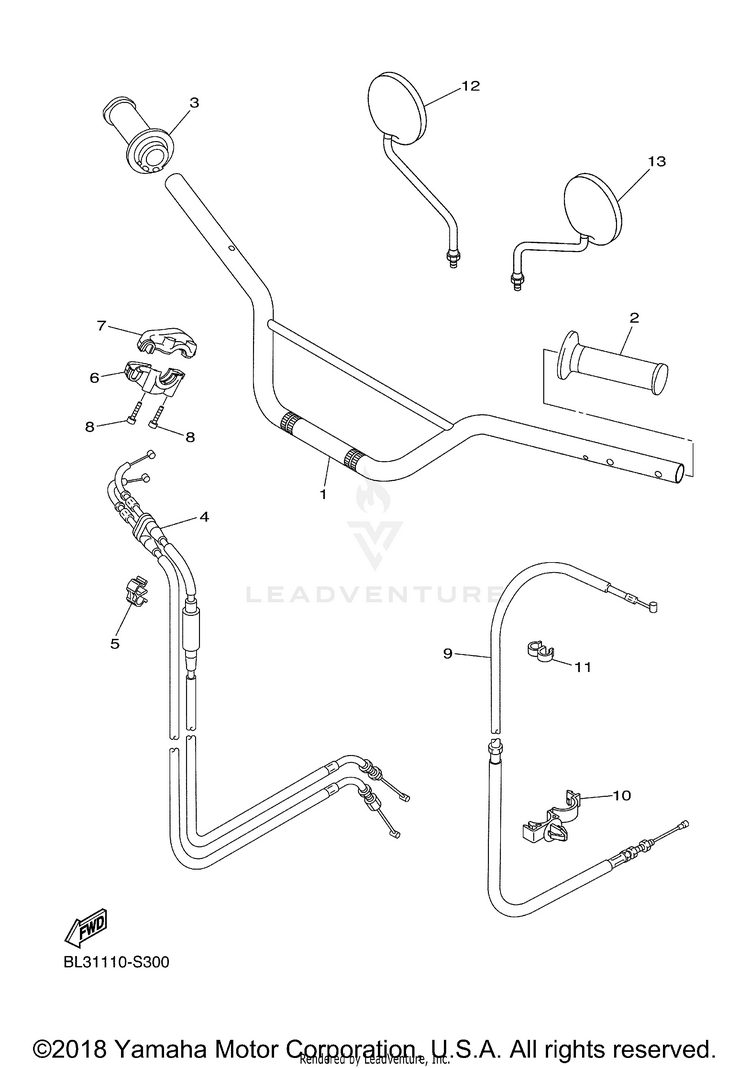

STEERING HANDLE CABLE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BL3-26111-00-00HANDLEBAR$160.99$125.57Usually ships in 7-10 business days
24GY-26241-00-00GRIP$32.99$25.7310+ In-Stock
3BL3-26240-00-00GRIP ASSY$77.99$60.83Usually ships in 7-10 business days
4BL3-26301-01-00

(replaces part #
BL3-26301-00-00)

THROTTLE CABLE ASSY$82.99$64.73Usually ships in 7-10 business days
590468-15139-00CLIP$8.49$7.64Usually ships in 7-10 business days
61WS-26281-00-00CAP, GRIP UPPER$14.49$11.88Usually ships in 7-10 business days
71WS-26282-00-00CAP, GRIP UNDER$15.49$12.084 In-Stock
891317-05040-00BOLT, HEX. SOCKET HEAD$3.10$2.79Usually ships in 7-10 business days
9BL3-26335-00-00CABLE, CLUTCH$60.99$47.57Usually ships in 7-10 business days
1090464-17003-00CLAMP$3.90$3.355 In-Stock
1190464-09M31-00CLAMP$8.99$7.016 In-Stock
125Y1-26290-01-00

(replaces part #
5Y1-26290-00-00)

REAR VIEW MIRROR ASSY (RIGHT)$41.99$34.43Usually ships in 7-10 business days
135Y1-26290-11-00

(replaces part #
5Y1-26290-10-00)

MIRROR ASSY., 2$82.99$64.732 In-Stock
