2017 Yamaha Wolverine 4x4 Drive Shaft OEM Parts Diagram

Submodel WOLVERINE - YXE70WDBHG - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

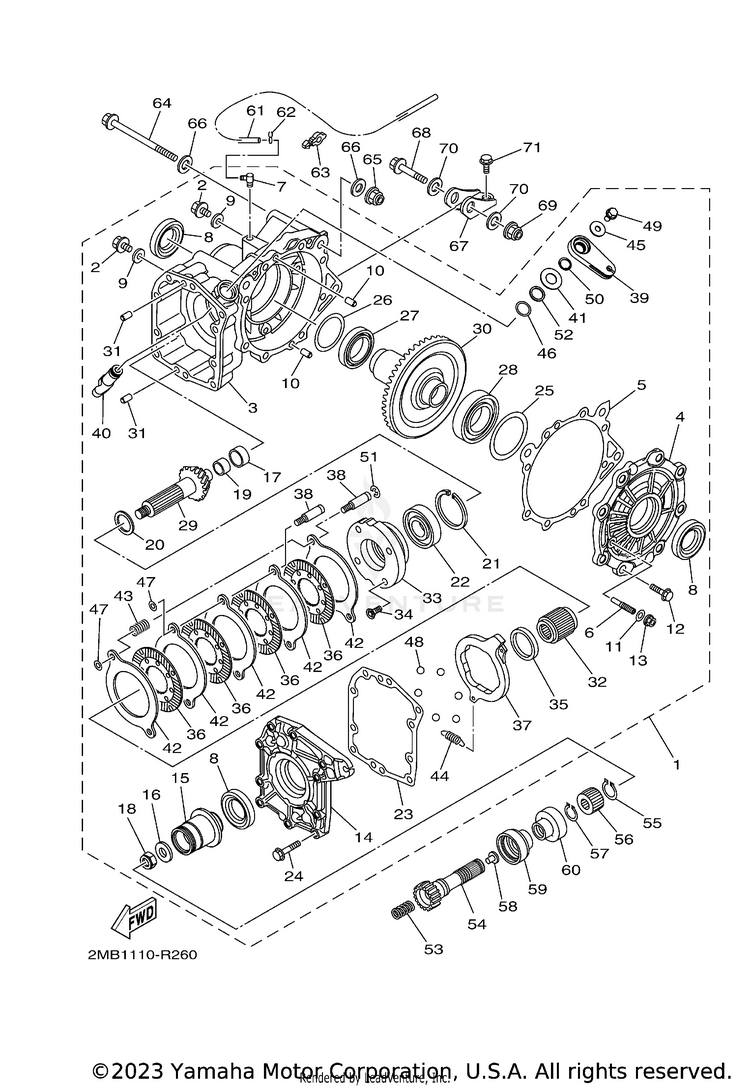

DRIVE SHAFT

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12MB-G6101-01-00REAR AXLE GEAR CASE ASSY$1,241.99$1,039.95Usually ships in 7-10 business days
21XD-E2228-00-00BOLT$5.49$4.284 In-Stock
32MB-G6151-00-00HOUSING, DRIVE SHAFT$251.99$196.55Usually ships in 7-10 business days
41XD-G6152-00-00HOUSING, BEARING$117.99$92.03Usually ships in 7-10 business days
51XD-G631A-00-00GSKT., CASE$14.49$11.303 In-Stock
61CT-G6156-00-00STOPPER, RING GEAR$13.49$11.06Usually ships in 7-10 business days
71CT-E5371-00-00BREATHER$13.99$11.47Usually ships in 7-10 business days
81XD-E511B-00-00OIL SEAL$9.99$7.79Not Shipping
91CT-E1195-00-00GASKET$6.99$5.4510+ In-Stock
101CT-E3362-00-00PIN, DOWEL 1$3.95$3.56Usually ships in 7-10 business days
111CT-G6819-00-00GASKET$4.95$4.46Usually ships in 7-10 business days
121XD-E2157-10-00BOLT$10.99$9.01Usually ships in 7-10 business days
131CT-E3275-00-00NUT, ADJUSTING$2.99$2.69Usually ships in 7-10 business days
142MB-G2134-00-00COVER$83.99$65.51Usually ships in 7-10 business days
152MB-F1753-00-00BOSS, CONNECTOR$181.99$141.95Usually ships in 7-10 business days
161CT-E1557-00-00WASHER 1$23.99$19.67Usually ships in 7-10 business days
171XD-E1428-00-00BEARING 1$22.99$17.932 In-Stock
181CT-E6377-00-00NUT, LOCK$5.49$4.94Usually ships in 7-10 business days
191XD-G5319-00-00CLIP$41.99$34.431 In-Stock
201XD-G7531-00-00WHEEL, SPROCKET 1$64.99$50.69Usually ships in 7-10 business days
211XD-E1486-00-00CLIP$8.49$7.64Usually ships in 7-10 business days
2293306-30574-00BEARING$79.99$62.395 In-Stock
232MB-G631E-00-00GASKET, COVER$11.99$9.83Usually ships in 7-10 business days
242MB-E2157-00-00BOLT$4.05$3.64Usually ships in 7-10 business days
251XD-G5567-00-00SHIM$21.99$18.03Usually ships in 7-10 business days
261XD-G5577-00-00SHIM$21.99$18.03Usually ships in 7-10 business days
271XD-E7051-00-00BEARING$34.99$28.69Usually ships in 7-10 business days
281XD-E1429-00-00BEARING 2$55.99$43.67Usually ships in 7-10 business days
292MB-G6121-00-00GEAR, DRIVE PINION$192.99$150.53Usually ships in 7-10 business days
302MB-G6110-00-00RING GEAR COMP.$415.99$350.60Usually ships in 7-10 business days
311CT-E3362-00-00PIN, DOWEL 1$3.95$3.56Usually ships in 7-10 business days
322MB-G6126-00-00COUPLING$85.99$67.07Usually ships in 7-10 business days
332MB-F3872-00-00HOLDER, BEARING$44.99$36.89Usually ships in 7-10 business days
342MB-E1982-00-00BOLT, HOLDER$4.05$3.64Usually ships in 7-10 business days
352MB-F1428-00-00BEARING$42.99$35.25Usually ships in 7-10 business days
362MB-F5345-00-00INSERT, PLATE$44.99$36.89Usually ships in 7-10 business days
372MB-F5689-00-00PLATE, GUIDE$104.99$81.89Usually ships in 7-10 business days
382MB-G2478-00-00BOLT, LOCK PLATE$9.49$8.54Usually ships in 7-10 business days
392MB-F5355-00-00LEVER, CAMSHAFT$54.99$42.89Usually ships in 7-10 business days
402MB-F5351-00-00CAMSHAFT$33.99$27.87Usually ships in 7-10 business days
411CT-E2289-10-00WASHER$12.49$10.24Usually ships in 7-10 business days
421CT-F539F-00-00PLATE 1$28.99$23.77Usually ships in 7-10 business days
431CT-G6277-00-00SPRING, RETURN$4.90$4.41Usually ships in 7-10 business days
442MB-F476L-00-00SPRING$19.49$15.98Usually ships in 7-10 business days
451CT-G1298-00-00WASHER 2$7.99$7.19Usually ships in 7-10 business days
461CT-E4005-10-00RING, SEAL$14.49$11.88Usually ships in 7-10 business days
471CT-G1297-00-00WASHER, 1$5.49$4.94Usually ships in 7-10 business days
481CT-E7051-00-00BALL$4.20$3.78Usually ships in 7-10 business days
491CT-E22A1-00-00BOLT 2$2.99$2.69Usually ships in 7-10 business days
501CT-E1486-00-00CLIP$2.25$2.02Usually ships in 7-10 business days
511CT-G5319-00-00CLIP$5.49$4.94Usually ships in 7-10 business days
521CT-E3147-00-00SHIM$2.99$2.69Usually ships in 7-10 business days
5390501-20361-00SPRING, COMPRESSION$14.49$11.3010+ In-Stock
542MB-G6172-00-00SHAFT, DRIVE$38.99$31.97Usually ships in 7-10 business days
5599009-19400-00CIRCLIP$9.49$7.407 In-Stock
565KM-46126-00-00COUPLING$71.99$56.159 In-Stock
5793410-22039-00CIRCLIP$9.49$7.4010+ In-Stock
585KM-46559-00-00DAMPER$8.49$6.6210+ In-Stock
595KM-46137-00-00SEAL 2$17.99$14.038 In-Stock
605KM-46136-00-00SEAL 1$9.49$7.4010+ In-Stock
6190445-070G6-00

(replaces part #
90445-072J4-00)

HOSE (L1700)$44.99$36.89Usually ships in 7-10 business days
6290467-07029-00CLIP$2.60$2.345 In-Stock
6390464-12830-00

(replaces part #
90464-10833-00)

CLAMP$1.60$1.3810+ In-Stock
6495812-12130-00BOLT, FLANGE$10.49$8.605 In-Stock
6590185-12002-00NUT, SELF-LOCKING$13.49$10.5210+ In-Stock
6692990-12200-00

(replaces part #
92902-12200-00)

WASHER, PLAIN$9.49$7.406 In-Stock
671XD-F1981-00-00BRKT., RR. AXLE$4.25$3.826 In-Stock
6890105-12082-00BOLT, FLANGE$11.49$9.42Usually ships in 7-10 business days
6990185-12002-00NUT, SELF-LOCKING$13.49$10.5210+ In-Stock
7092990-12200-00

(replaces part #
92902-12200-00)

WASHER, PLAIN$9.49$7.406 In-Stock
7195817-08016-00

(replaces part #
95812-08016-00)

BOLT,FLANGE (JN5)$5.49$4.2810+ In-Stock
