2017 Yamaha Wolverine 4x4 Rear Suspension OEM Parts Diagram

Submodel WOLVERINE - YXE70WDBHG - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

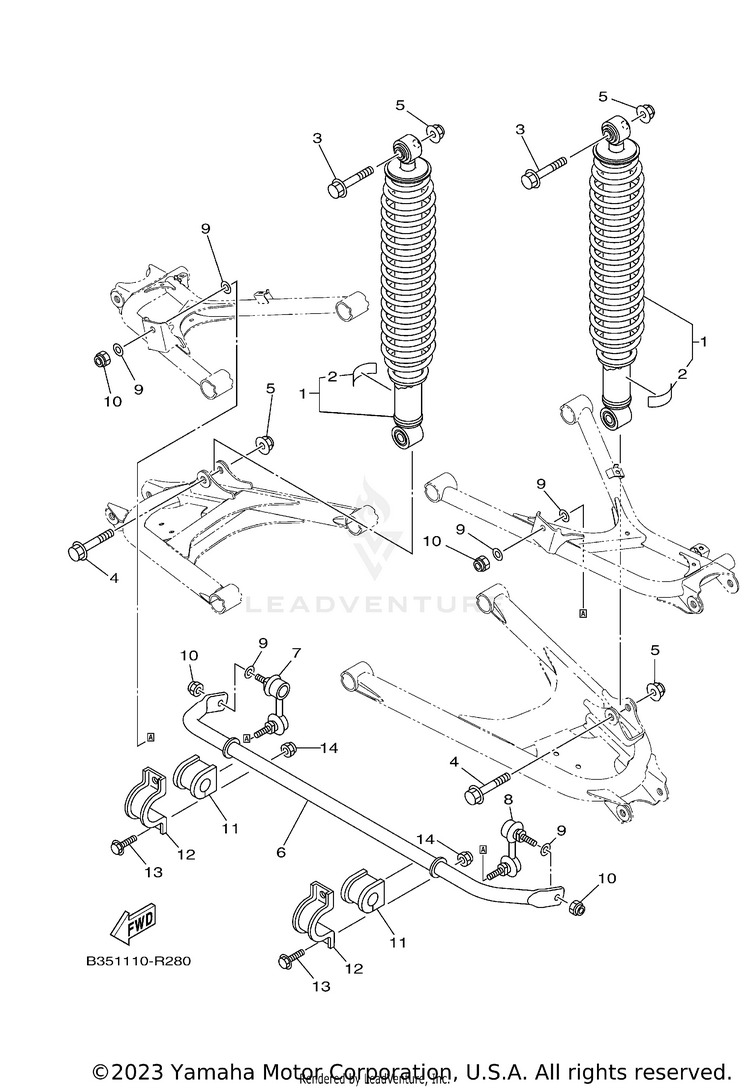

REAR SUSPENSION

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B35-F2200-00-00SHOCK ABSORBER ASSY, REAR$304.99$237.89Usually ships in 7-10 business days
21HP-F2259-01-00LABEL, WARNING$23.99$19.67Usually ships in 7-10 business days
390105-12056-00BOLT, FLANGE$12.49$9.742 In-Stock
490105-12055-00BOLT, FLANGE$13.49$11.062 In-Stock
590185-12009-00NUT, SELF-LOCKING$9.49$7.402 In-Stock
62MB-G7491-00-00BAR, STABILIZER$90.99$70.97Usually ships in 7-10 business days
716B-2385M-10-00JOINT, STABILIZER 2$78.99$61.618 In-Stock
816B-2385L-10-00JOINT, STABILIZER 1$78.99$61.614 In-Stock
990201-10035-00WASHER, PLATE$4.50$3.8710+ In-Stock
1090185-10012-00NUT, SELF-LOCKING$3.60$3.1010+ In-Stock
111XD-F386G-00-00BUSH, STABILIZER FRONT$10.99$8.572 In-Stock
121XD-F386H-00-00COVER, STABILIZER FRONT$9.49$8.54Usually ships in 7-10 business days
1395817-10020-00

(replaces part #
95812-10020-00)

BOLT, FLANGE$9.49$7.4010+ In-Stock
1490185-10011-00NUT, SELF-LOCKING$4.95$4.2610+ In-Stock
