2017 Yamaha Wolverine 4x4 Frame OEM Parts Diagram

Submodel WOLVERINE EPS HUNTER - YXE70WPBHH - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME

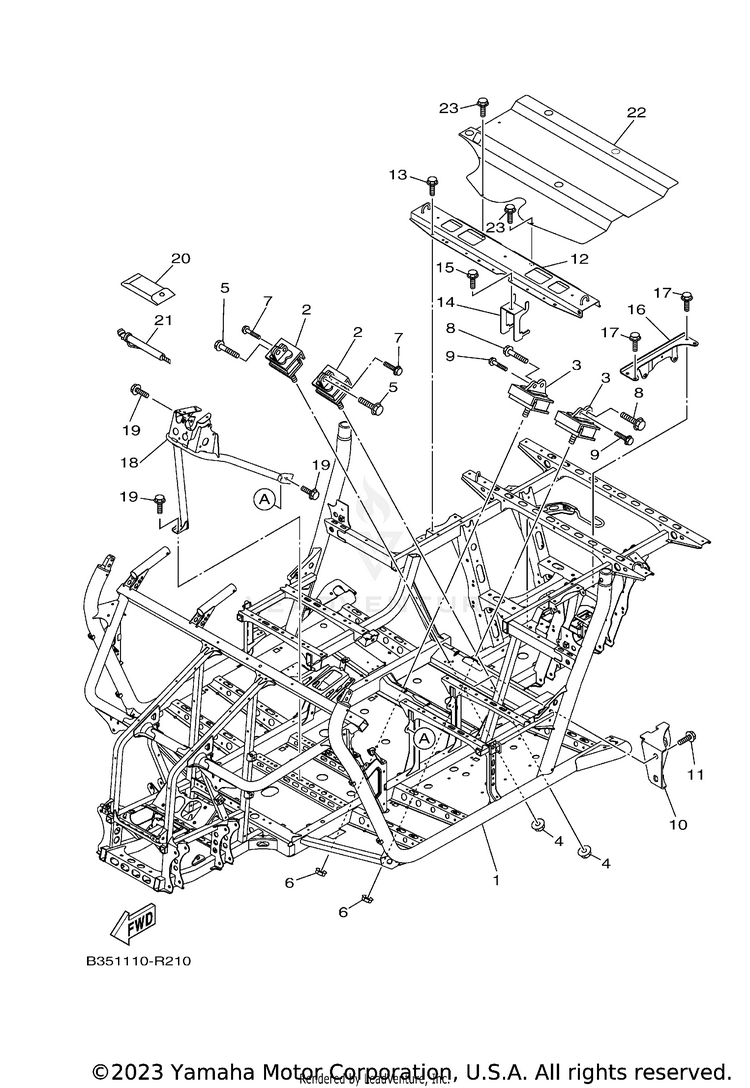

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B3D-F1110-00-00

(replaces part #
2MB-F1110-00-00)

FRAME COMP.$3,528.99$3,528.99Usually ships in 7-10 business days
22MB-F1485-00-00DAMPER, RUBBER 1$32.99$27.05Usually ships in 7-10 business days
32PG-21485-00-00DAMPER, RUBBER 1$33.99$27.87Usually ships in 7-10 business days
490185-10011-00NUT, SELF-LOCKING$4.95$4.2610+ In-Stock
52MB-E3574-00-00BOLT 2$4.85$4.36Usually ships in 7-10 business days
690185-10011-00NUT, SELF-LOCKING$4.95$4.2610+ In-Stock
72MB-E5481-E0-00

(replaces part #
2MB-E5481-A0-00)

BOLT 1$1.80$1.62Usually ships in 7-10 business days
890105-10314-00BOLT, FLANGE$9.49$8.54Usually ships in 7-10 business days
995024-06016-00

(replaces part #
90105-06639-00)

BOLT, FLANGE (SMALL HEAD)$9.49$7.407 In-Stock
102MB-F287G-00-00BRACKET, LOCK$7.49$6.74Usually ships in 7-10 business days
1195817-10020-00

(replaces part #
95812-10020-00)

BOLT, FLANGE$9.49$7.4010+ In-Stock
122MB-F117A-00-00STAY$36.99$30.33Usually ships in 7-10 business days
1395817-08016-00

(replaces part #
95812-08016-00)

BOLT,FLANGE (JN5)$5.49$4.2810+ In-Stock
142MB-F1159-00-00BRACKET$2.00$1.80Usually ships in 7-10 business days
1595812-06010-00BOLT, FLANGE$5.49$4.2810+ In-Stock
162MB-F831T-00-00STAY, SUPPORT 1$24.99$20.49Usually ships in 7-10 business days
1795817-08016-00

(replaces part #
95812-08016-00)

BOLT,FLANGE (JN5)$5.49$4.2810+ In-Stock
182MB-F1986-00-00REINFORCEMENT, FRAME 1$236.99$184.85Usually ships in 7-10 business days
1990105-08867-00BOLT, FLANGE$1.95$1.765 In-Stock
205B4-F8100-00-00TOOL KIT$47.99$39.35Usually ships in 7-10 business days
211XD-F811A-00-00GAUGE, AIR$7.49$6.74Usually ships in 7-10 business days
222MB-F2898-00-00INSULATOR, HEAT$54.99$42.89Usually ships in 7-10 business days
2395817-08016-00

(replaces part #
95812-08016-00)

BOLT,FLANGE (JN5)$5.49$4.2810+ In-Stock
