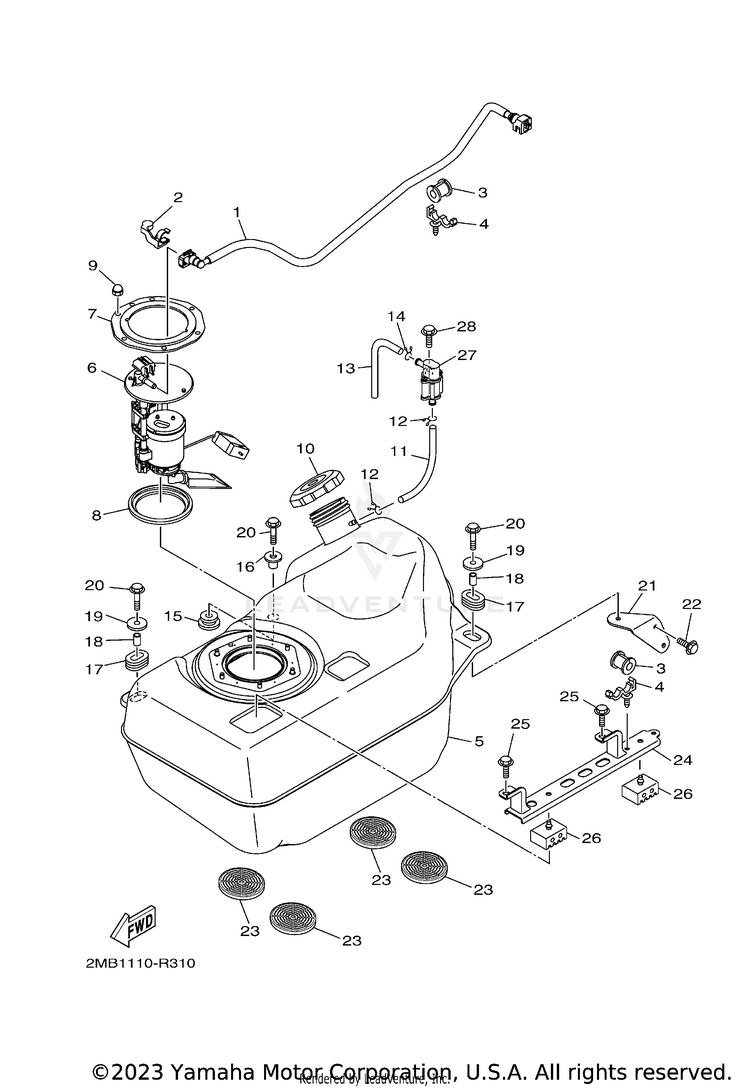

FUEL TANK

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12MB-13971-01-00

(replaces part #
2MB-13971-00-00)

PIPE, FUEL 1$87.99$68.63Usually ships in 7-10 business days
290464-14004-00CLAMP$8.49$6.627 In-Stock
390480-20543-00GROMMET$9.49$8.5410+ In-Stock
490464-20010-00CLAMP$3.50$3.015 In-Stock
51XD-F4110-00-00FUEL TANK COMP.$264.99$206.69Usually ships in 7-10 business days
63B4-13907-13-00

(replaces part #
3B4-13907-10-00)

Fuel Pump Comp$346.99$271.408 In-Stock
73B4-24491-00-00BRACKET, FUEL PUMP$22.99$18.85Usually ships in 7-10 business days
81S3-24486-00-00O-RING$18.99$14.8110+ In-Stock
995380-06800-00

(replaces part #
95302-06800-00)

NUT, CROWN$9.49$7.4010+ In-Stock
10BVG-24610-00-00

(replaces part #
2P5-24610-00-00)

CAP ASSY$32.99$29.7110+ In-Stock
1190445-09827-00HOSE (L160)$2.65$2.38Usually ships in 7-10 business days
1290467-090A2-00

(replaces part #
90467-09006-00)

CLIP$4.75$4.0810+ In-Stock
1390445-09826-00HOSE (L85)$1.45$1.30Usually ships in 7-10 business days
1490467-090A2-00

(replaces part #
90467-09006-00)

CLIP$4.75$4.0810+ In-Stock
1590480-18016-00GROMMET$9.49$7.4010+ In-Stock
1690387-07021-00COLLAR$8.49$6.625 In-Stock
1790480-01400-00GROMMET$14.49$11.3010+ In-Stock
1890387-061V1-00COLLAR (2UJ)$9.49$7.404 In-Stock
1990201-065G8-00WASHER, PLATE$9.49$7.4010+ In-Stock
2095817-06030-00

(replaces part #
95802-06030-00)

BOLT,FLANGE$4.65$4.0010+ In-Stock
212MB-F4291-00-00BRACKET, FUEL TANK 1$4.70$4.23Usually ships in 7-10 business days
2290105-06831-00BOLT, FLANGE$1.55$1.549 In-Stock
232MB-F4181-00-00DAMPER, LOCATING 1$2.80$2.52Usually ships in 7-10 business days
242MB-F4157-00-00STAY, FUEL TANK 1$11.99$9.83Usually ships in 7-10 business days
2590105-08867-00BOLT, FLANGE$1.95$1.765 In-Stock
262MB-F4182-00-00DAMPER, LOCATING 2$3.45$2.974 In-Stock
2728P-24380-00-00PIPE JOINT ASSY$43.99$34.312 In-Stock
2890105-06832-00BOLT, FLANGE-$1.3610+ In-Stock
