2017 Yamaha Wolverine 4x4 Middle Drive Gear OEM Parts Diagram

Submodel WOLVERINE EPS - YXE70WPBHL - 2017

Shop Aftermarket Parts

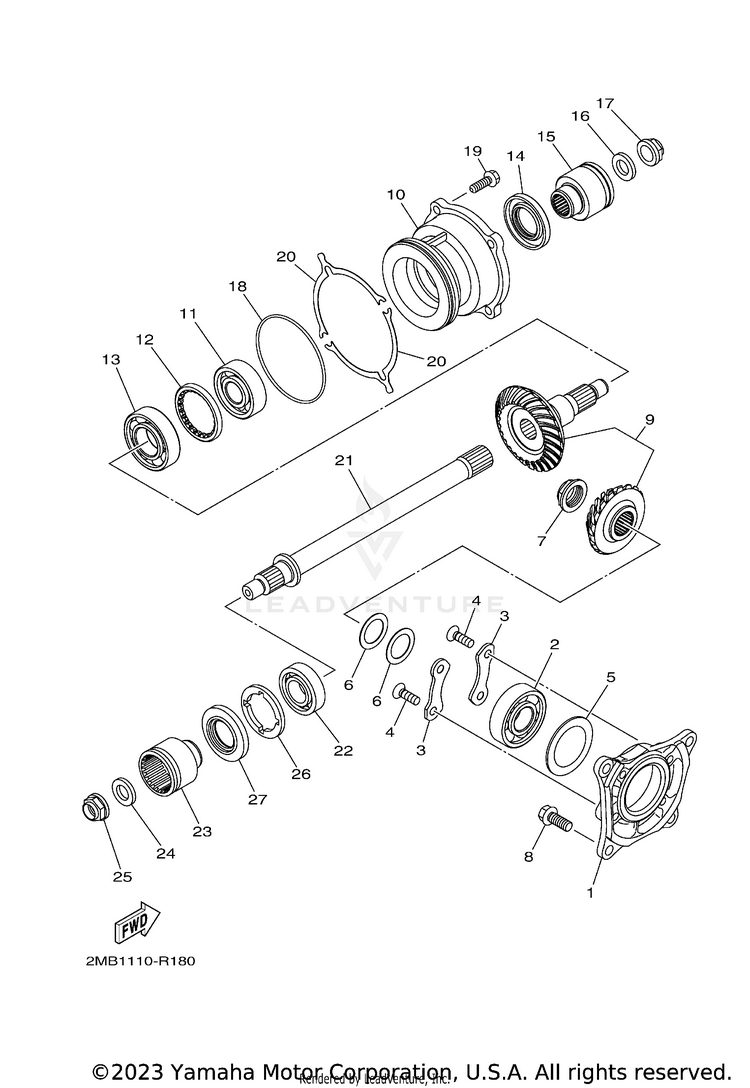

MIDDLE DRIVE GEAR

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12MB-E7521-00-00HOUSING, BEARING$117.99$92.03Usually ships in 7-10 business days
22MB-E7412-00-00BEARING$56.99$44.45Usually ships in 7-10 business days
32MB-E5383-00-00PLATE, BEARING COVER$14.49$11.88Usually ships in 7-10 business days
42MB-E765G-00-00SCREW, FIXED$1.70$1.53Usually ships in 7-10 business days
52MB-E7658-00-00WASHER, BELLEVILLE$12.99$10.65Usually ships in 7-10 business days
65KM-17531-50-00

(replaces part #
2MB-E7417-50-00)

SHIM, PINION (0.5T) | UR$8.49$7.64Usually ships in 7-10 business days
65KM-17531-60-00

(replaces part #
2MB-E7417-60-00)

SHIM, PINION (0.55T) | UR$4.80$4.32Usually ships in 7-10 business days
65KM-17531-90-00

(replaces part #
2MB-E7417-90-00)

SHIM, PINION (0.8T) | UR$5.49$4.94Usually ships in 7-10 business days
65KM-17531-A0-00

(replaces part #
2MB-E7417-A0-00)

SHIM, PINION (0.9T) | UR$5.49$4.94Usually ships in 7-10 business days
65KM-17531-70-00

(replaces part #
2MB-E7417-70-00)

SHIM, PINION (0.6T) | UR$5.99$5.39Usually ships in 7-10 business days
65KM-17531-B0-00

(replaces part #
2MB-E7417-B0-00)

SHIM, PINION (1.0T) | UR$5.49$4.94Usually ships in 7-10 business days
65KM-17531-80-00

(replaces part #
2MB-E7417-80-00)

SHIM, PINION (0.7T) | UR$4.90$4.41Usually ships in 7-10 business days
790179-22013-00

(replaces part #
2MB-E7463-00-00)

NUT$29.99$24.59Usually ships in 7-10 business days
82MB-E22A1-00-00BOLT 2$4.20$3.78Usually ships in 7-10 business days
92PG-17530-01-00

(replaces part #
2MB-17530-00-00)

PINION SET$457.99$357.23Usually ships in 7-10 business days
102MB-E7551-00-00HOUSING, BEARING$147.99$115.43Usually ships in 7-10 business days
112MB-E7413-00-00BEARING 2$39.99$32.79Usually ships in 7-10 business days
122MB-E7589-00-00NUT$32.99$27.05Usually ships in 7-10 business days
132MB-E7422-00-00BEARING 1$48.99$40.17Usually ships in 7-10 business days
142MB-E7499-00-00OIL SEAL$17.99$14.033 In-Stock
152MB-E7832-00-00COUPLING$153.99$120.11Usually ships in 7-10 business days
162MB-E7058-00-00WASHER,1$18.99$15.57Usually ships in 7-10 business days
1790179-16006-00

(replaces part #
2MB-E6647-00-00)

NUT$19.49$15.203 In-Stock
182MB-E76F4-00-00O-RING$10.99$9.01Usually ships in 7-10 business days
192MB-E2615-00-00BOLT$2.10$1.89Usually ships in 7-10 business days
203B4-17531-00-00

(replaces part #
2MB-E7531-00-00)

SHIM, PINION (0.1T) | UR$5.99$4.674 In-Stock
203B4-17531-10-00

(replaces part #
2MB-E7531-10-00)

SHIM, PINION (0.15T) | UR$7.49$6.74Usually ships in 7-10 business days
203B4-17531-60-00

(replaces part #
2MB-E7531-60-00)

SHIM, PINION (0.6T) | UR$5.99$5.39Usually ships in 7-10 business days
203B4-17531-50-00

(replaces part #
2MB-E7531-50-00)

SHIM, PINION (0.5T) | UR$5.99$4.674 In-Stock
203B4-17531-30-00

(replaces part #
2MB-E7531-30-00)

SHIM, PINION (0.3T) | UR$5.99$5.39Usually ships in 7-10 business days
203B4-17531-20-00

(replaces part #
2MB-E7531-20-00)

SHIM, PINION (0.2T) | UR$5.99$4.674 In-Stock
203B4-17531-40-00

(replaces part #
2MB-E7531-40-00)

SHIM, PINION (0.4T) | UR$7.49$6.74Usually ships in 7-10 business days
212MB-E761A-00-00SHAFT 1$208.99$165.20Usually ships in 7-10 business days
222MB-E7423-00-00BEARING 2$37.99$31.15Usually ships in 7-10 business days
232MB-E7832-00-00COUPLING$153.99$120.11Usually ships in 7-10 business days
242MB-E7058-00-00WASHER,1$18.99$15.57Usually ships in 7-10 business days
2590179-16006-00

(replaces part #
2MB-E6647-00-00)

NUT$19.49$15.203 In-Stock
262MB-E7642-00-00NUT, BEARING$42.99$35.25Usually ships in 7-10 business days
272MB-E7499-00-00OIL SEAL$17.99$14.033 In-Stock
