THROTTLE BODY ASSY 1

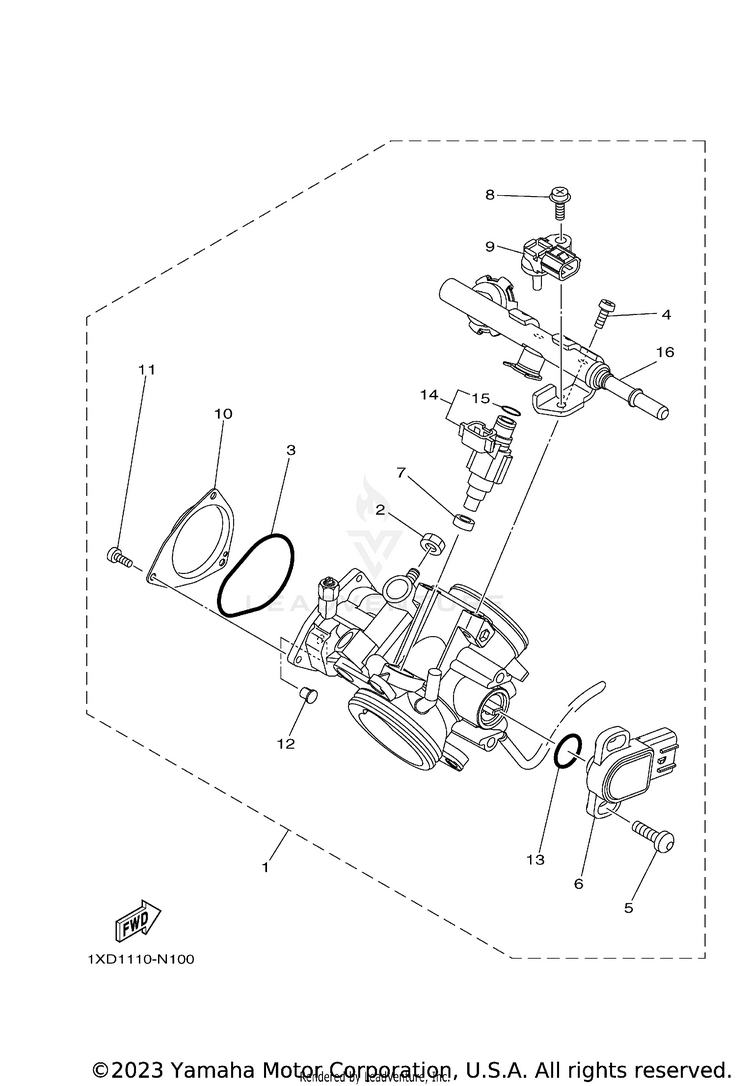

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12MB-13750-02-00

(replaces part #
2MB-13750-00-00)

THROTTLE BODY ASSY$797.99$695.89Usually ships in 7-10 business days
21S3-14161-00-00NUT, CABLE ADJUSTING$8.49$6.622 In-Stock
35LP-14147-00-00O-RING$12.99$10.1310+ In-Stock
498517-06012-00

(replaces part #
92502-06012-00)

SCREW,PAN$4.10$3.5310+ In-Stock
58CC-14216-10-00SCREW$8.99$7.019 In-Stock
63B4-85885-01-00

(replaces part #
3B4-85885-00-00)

THROTTLE SENSOR AS$78.99$61.6110+ In-Stock
78FP-13556-00-00RUBBER, INJECTOR$15.49$12.0810+ In-Stock
82C0-14216-00-00SCREW$4.20$3.613 In-Stock
95S7-82380-00-00SENSOR, PRESSURE$203.99$159.114 In-Stock
105UG-14293-00-00COVER 1$14.49$11.88Usually ships in 7-10 business days
1198517-04006-00

(replaces part #
98502-04006-00)

SCREW, PAN HEAD$4.60$3.9610+ In-Stock
121UY-14155-00-00GUIDE, CABLE END$19.99$15.5910+ In-Stock
135YP-14562-00-00O-RING$8.49$6.628 In-Stock
141XD-13761-00-00INJECTOR$177.99$138.838 In-Stock
151XD-14147-00-00O-RING$15.49$12.70Usually ships in 7-10 business days
161XD-13160-00-00DELIVERY PIPE ASSY 1$232.99$184.88Usually ships in 7-10 business days
