2017 Yamaha Wolverine R-Spec 4x4 Carrier OEM Parts Diagram

Submodel WOLVERINE R-SPEC EPS - YXE70WPAHW - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CARRIER

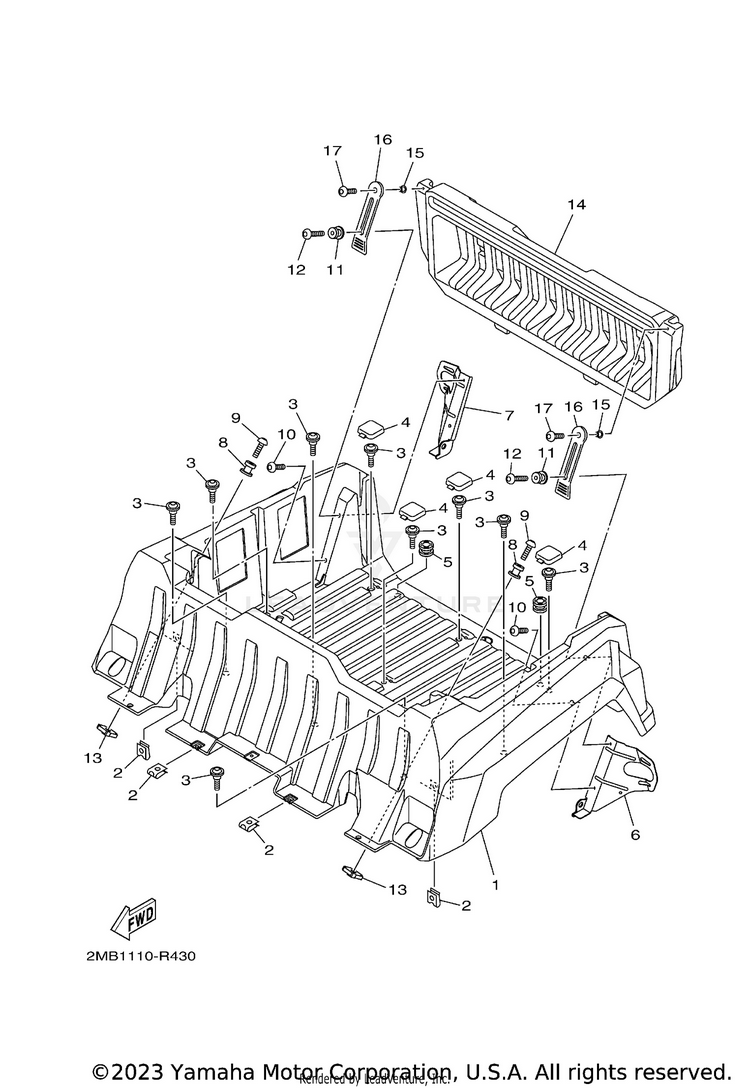

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12MB-F1171-01-00BOX-$990.19Not Shipping
290183-060A6-00NUT, SPRING$5.99$4.6710+ In-Stock
390109-068A5-00BOLT$8.49$6.6210+ In-Stock
42MB-F143A-00-00CAP$1.95$1.688 In-Stock
590480-13029-00GROMMET$6.49$5.065 In-Stock
62MB-F475U-00-00BRACKET, TAIL COVER$22.99$18.85Usually ships in 7-10 business days
72MB-F475V-00-00BRACKET, TAIL COVER 2$16.49$13.52Usually ships in 7-10 business days
88M6-77175-00-00HOLDER, LATCH$14.99$11.693 In-Stock
990111-06106-00BOLT, HEX. SOCKET BUTTON$6.49$5.844 In-Stock
1090111-06123-00BOLT, HEX. SOCKET BUTTON$3.95$3.408 In-Stock
118M6-77175-00-00HOLDER, LATCH$14.99$11.693 In-Stock
1290111-06106-00BOLT, HEX. SOCKET BUTTON$6.49$5.844 In-Stock
132MB-F1296-00-00NUT$1.95$1.762 In-Stock
142MB-K8365-00-00CASE$130.99$102.17Usually ships in 7-10 business days
1590387-06M89-00COLLAR$15.99$14.16Usually ships in 7-10 business days
168V0-77171-00-00BODY, LATCH 1$23.99$18.716 In-Stock
1790111-06123-00BOLT, HEX. SOCKET BUTTON$3.95$3.408 In-Stock
