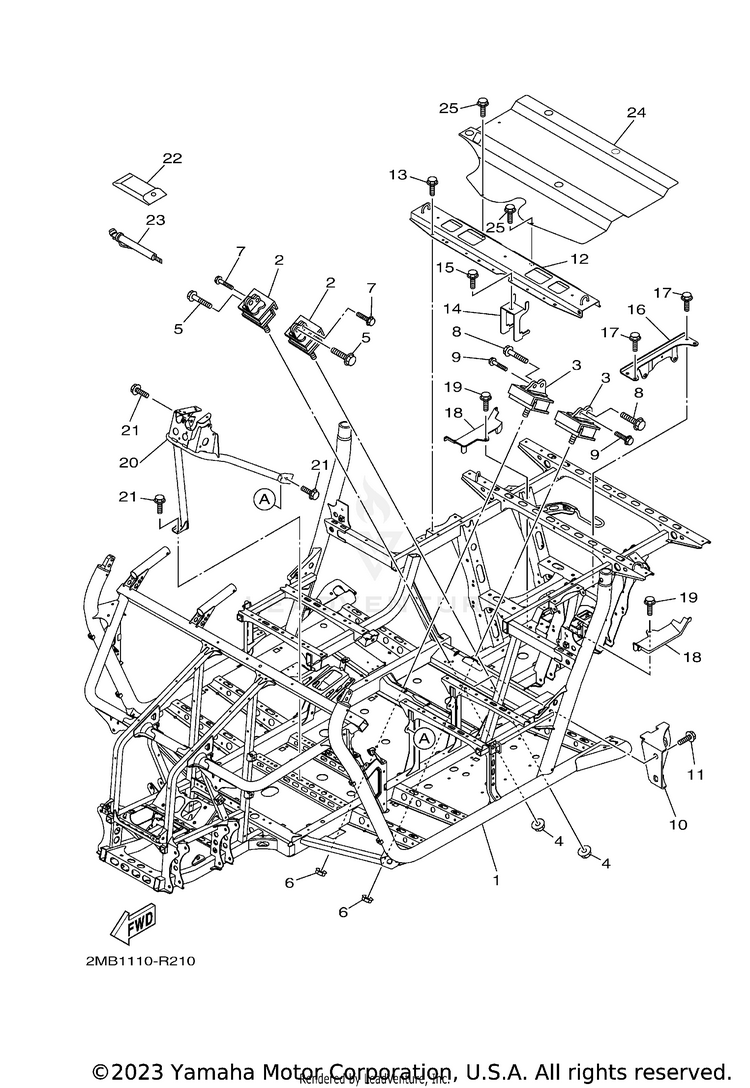

2017 Yamaha Wolverine R-Spec 4x4 Frame OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	B3D-F1110-00-00 (replaces part # 2MB-F1110-00-00)	FRAME COMP.	$3,528.99	$3,528.99	Usually ships in 7-10 business days
2	2MB-F1485-00-00	DAMPER, RUBBER 1	$32.99	$27.05	Usually ships in 7-10 business days
3	2PG-21485-00-00	DAMPER, RUBBER 1	$33.99	$27.87	Usually ships in 7-10 business days
4	90185-10011-00	NUT, SELF-LOCKING	$4.95	$4.26	10+ In-Stock
5	2MB-E3574-00-00	BOLT 2	$4.85	$4.36	Usually ships in 7-10 business days
6	90185-10011-00	NUT, SELF-LOCKING	$4.95	$4.26	10+ In-Stock
7	2MB-E5481-E0-00 (replaces part # 2MB-E5481-A0-00)	BOLT 1	$1.80	$1.62	Usually ships in 7-10 business days
8	90105-10314-00	BOLT, FLANGE	$9.49	$8.54	Usually ships in 7-10 business days
9	95024-06016-00 (replaces part # 90105-06639-00)	BOLT, FLANGE (SMALL HEAD)	$9.49	$7.40	7 In-Stock
10	2MB-F287G-00-00	BRACKET, LOCK	$7.49	$6.74	Usually ships in 7-10 business days
11	95817-10020-00 (replaces part # 95812-10020-00)	BOLT, FLANGE	$9.49	$7.40	10+ In-Stock
12	2MB-F117A-00-00	STAY	$36.99	$30.33	Usually ships in 7-10 business days
13	95817-08016-00 (replaces part # 95812-08016-00)	BOLT,FLANGE (JN5)	$5.49	$4.28	10+ In-Stock
14	2MB-F1159-00-00	BRACKET	$2.00	$1.80	Usually ships in 7-10 business days
15	95812-06010-00	BOLT, FLANGE	$5.49	$4.28	10+ In-Stock
16	2MB-F831T-00-00	STAY, SUPPORT 1	$24.99	$20.49	Usually ships in 7-10 business days
17	95817-08016-00 (replaces part # 95812-08016-00)	BOLT,FLANGE (JN5)	$5.49	$4.28	10+ In-Stock
18	2MB-F198J-00-00	COVER 3	$4.90	$4.41	Usually ships in 7-10 business days
19	JW1-K6179-01-00 (replaces part # 90119-06868-00)	BOLT, SPECIAL 1	$1.75	$1.50	10+ In-Stock
20	2MB-F1986-00-00	REINFORCEMENT, FRAME 1	$236.99	$184.85	Usually ships in 7-10 business days
21	90105-08867-00	BOLT, FLANGE	$1.95	$1.76	5 In-Stock
22	5B4-F8100-00-00	TOOL KIT	$47.99	$39.35	Usually ships in 7-10 business days
23	1XD-F811A-00-00	GAUGE, AIR	$7.49	$6.74	Usually ships in 7-10 business days
24	2MB-F2898-00-00	INSULATOR, HEAT	$54.99	$42.89	Usually ships in 7-10 business days
25	95817-08016-00 (replaces part # 95812-08016-00)	BOLT,FLANGE (JN5)	$5.49	$4.28	10+ In-Stock
