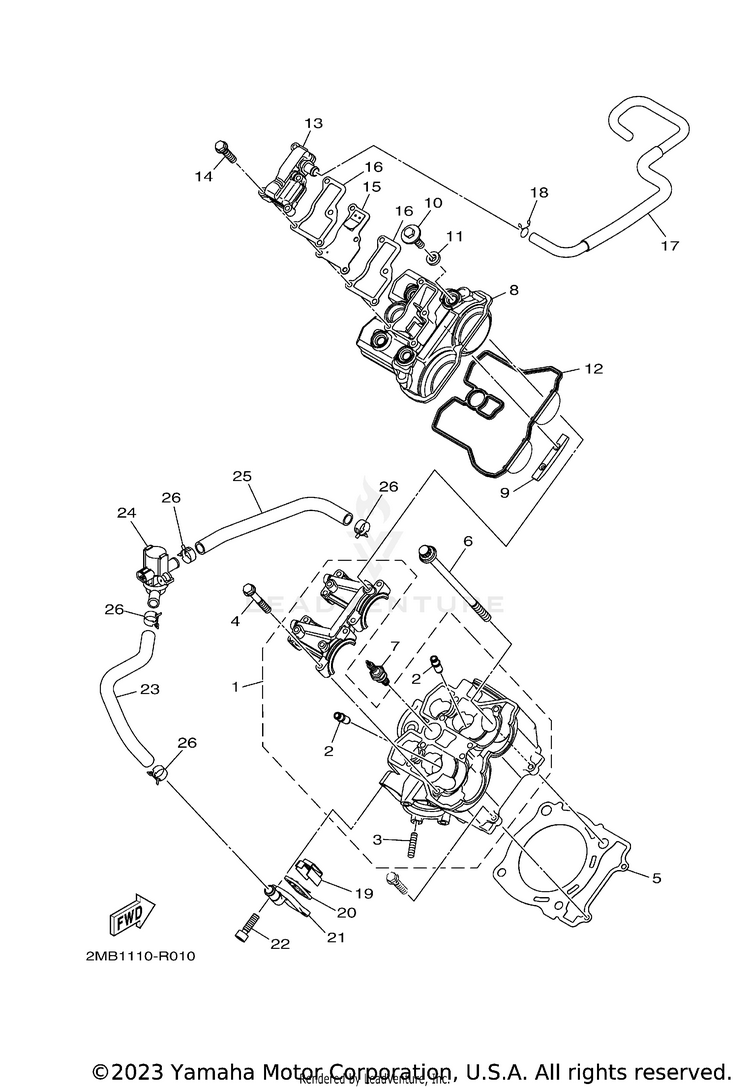

CYLINDER HEAD

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12MB-E1102-00-00CYLINDER HEAD ASSY$1,014.99$829.79Usually ships in 7-10 business days
22MB-E1133-10-00GUIDE, VALVE 1$41.99$32.7510+ In-Stock
32MB-E1179-00-00BOLT, STUD$7.49$5.845 In-Stock
42MB-E5481-80-00BOLT 1$2.75$2.48Usually ships in 7-10 business days
52MB-E1181-00-00GASKET, CYLINDER HEAD 1$44.99$35.097 In-Stock
62MB-E1361-00-00BOLT, CYLINDER HOLDING 1$30.99$24.1710+ In-Stock
7CPR-7EA90-00-00PLUG, SPARK (NGK CPR7EA)$18.99$14.8110+ In-Stock
82MB-E1191-00-00COVER, CYLINDER HEAD 1$115.99$90.47Usually ships in 7-10 business days
92MB-E2241-00-00GUIDE, STOPPER 2$5.99$5.39Usually ships in 7-10 business days
102MB-E4446-00-00BOLT$7.49$6.74Usually ships in 7-10 business days
112MB-E111G-00-00RUBBER, MOUNT 1$8.49$6.6210+ In-Stock
122MB-E1193-00-00GASKET, HEAD COVER 1$39.99$31.194 In-Stock
132MB-E1160-00-00BREATHER ASSY$47.99$39.35Usually ships in 7-10 business days
142MB-E5481-20-00BOLT 1$1.20$1.038 In-Stock
152MB-E3610-00-00REED VALVE ASSY$66.99$52.25Usually ships in 7-10 business days
162MB-E131B-00-00GASKET, COVER$1.45$1.253 In-Stock
172MB-E1166-00-00PIPE, BREATHER 1$11.49$9.42Usually ships in 7-10 business days
1890467-140A4-00CLIP$10.49$8.185 In-Stock
192MB-E482K-00-00PLATE$47.99$39.35Usually ships in 7-10 business days
205JW-14890-00-00

(replaces part #
2MB-E4890-00-00)

REED VALVE ASSY$71.99$56.15Usually ships in 7-10 business days
212MB-E4889-00-00CAP, CASE$50.99$39.77Usually ships in 7-10 business days
2291314-06020-00

(replaces part #
2MB-E6777-10-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.5710+ In-Stock
231XD-E4881-00-00HOSE, BEND 1$8.49$7.64Usually ships in 7-10 business days
242MB-14840-00-00AIR CUT VALVE ASSY$104.99$81.89Usually ships in 7-10 business days
251XD-E4882-00-00HOSE, BEND 2$4.90$4.41Usually ships in 7-10 business days
2690467-17128-00

(replaces part #
90467-17089-00)

CLIP$9.49$7.4010+ In-Stock
