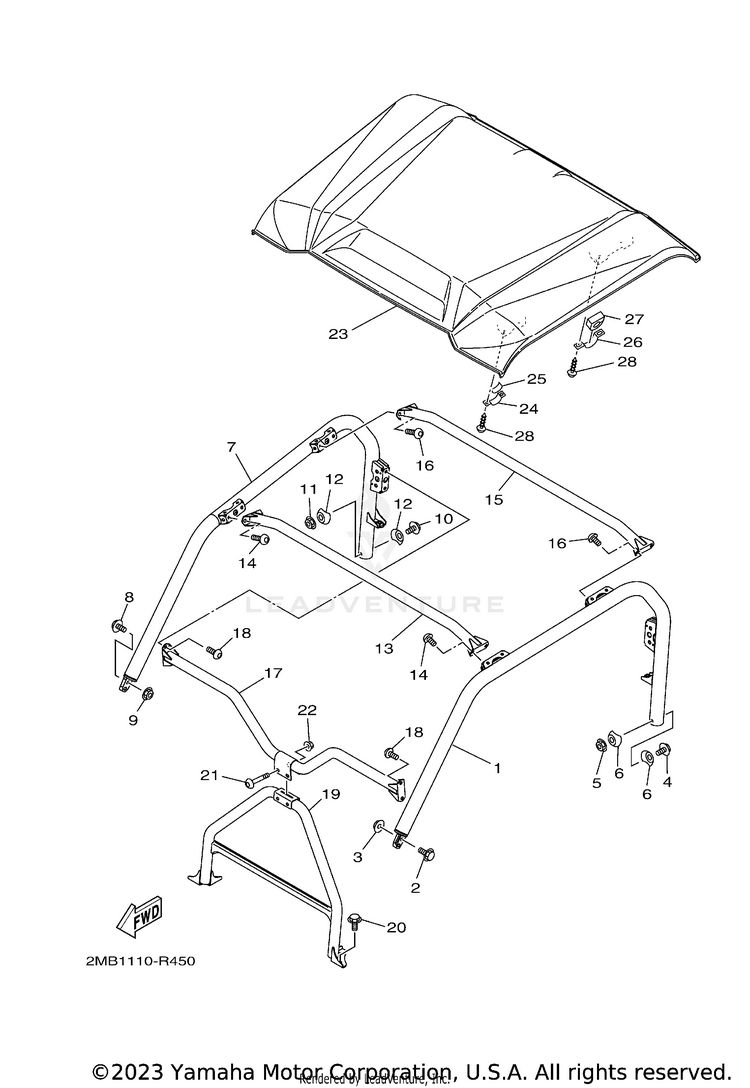

GUARD 2

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11XD-K831A-00-00SUPPORT, ROOF 3$267.99$215.49Usually ships in 7-10 business days
295812-10045-00BOLT, FLANGE$6.99$5.4510+ In-Stock
390185-10011-00NUT, SELF-LOCKING$4.95$4.2610+ In-Stock
492012-10070-00BOLT, BUTTON HEAD$4.70$4.23Usually ships in 7-10 business days
590185-10011-00NUT, SELF-LOCKING$4.95$4.2610+ In-Stock
61XD-K7526-00-00WASHER 2$5.99$4.673 In-Stock
71XD-K831E-00-00SUPPORT, ROOF 4$246.99$193.88Usually ships in 7-10 business days
895812-10045-00BOLT, FLANGE$6.99$5.4510+ In-Stock
990185-10011-00NUT, SELF-LOCKING$4.95$4.2610+ In-Stock
1092012-10070-00BOLT, BUTTON HEAD$4.70$4.23Usually ships in 7-10 business days
1190185-10011-00NUT, SELF-LOCKING$4.95$4.2610+ In-Stock
121XD-K7526-00-00WASHER 2$5.99$4.673 In-Stock
132MB-K8392-00-00MEMBER, ROOF FRAME$81.99$63.95Usually ships in 7-10 business days
1490111-10802-00BOLT, HEX. SOCKET BUTTON$3.00$2.595 In-Stock
152MB-K8393-00-00MEMBER, ROOF FRAME 2$84.99$66.29Usually ships in 7-10 business days
1690111-10802-00BOLT, HEX. SOCKET BUTTON$3.00$2.595 In-Stock
172MB-K830A-00-00ROOF SUPPORT ASSY 1$125.99$98.27Usually ships in 7-10 business days
1890111-10802-00BOLT, HEX. SOCKET BUTTON$3.00$2.595 In-Stock
192MB-K830B-00-00ROOF SUPPORT ASSY 2$143.99$112.31Usually ships in 7-10 business days
2095812-10016-00BOLT, FLANGE$10.49$8.1810+ In-Stock
2192012-10060-00BOLT, BUTTON HEAD$3.50$3.016 In-Stock
2290185-10011-00NUT, SELF-LOCKING$4.95$4.2610+ In-Stock
232MB-K8314-00-00COVER, SUN ROOF$274.99$245.49Usually ships in 7-10 business days
245UG-K8366-00-00CLAMP, SUPPORT$10.99$8.5710+ In-Stock
255UG-K7588-01-00

(replaces part #
5UG-K7588-00-00)

DAMPER$8.49$6.6210+ In-Stock
261XP-K8366-00-00CLAMP, SUPPORT$3.30$2.97Usually ships in 7-10 business days
271XP-K7588-00-00DAMPER$10.49$8.1810+ In-Stock
2890167-06800-00SCREW, TAPPING-$1.0410+ In-Stock
