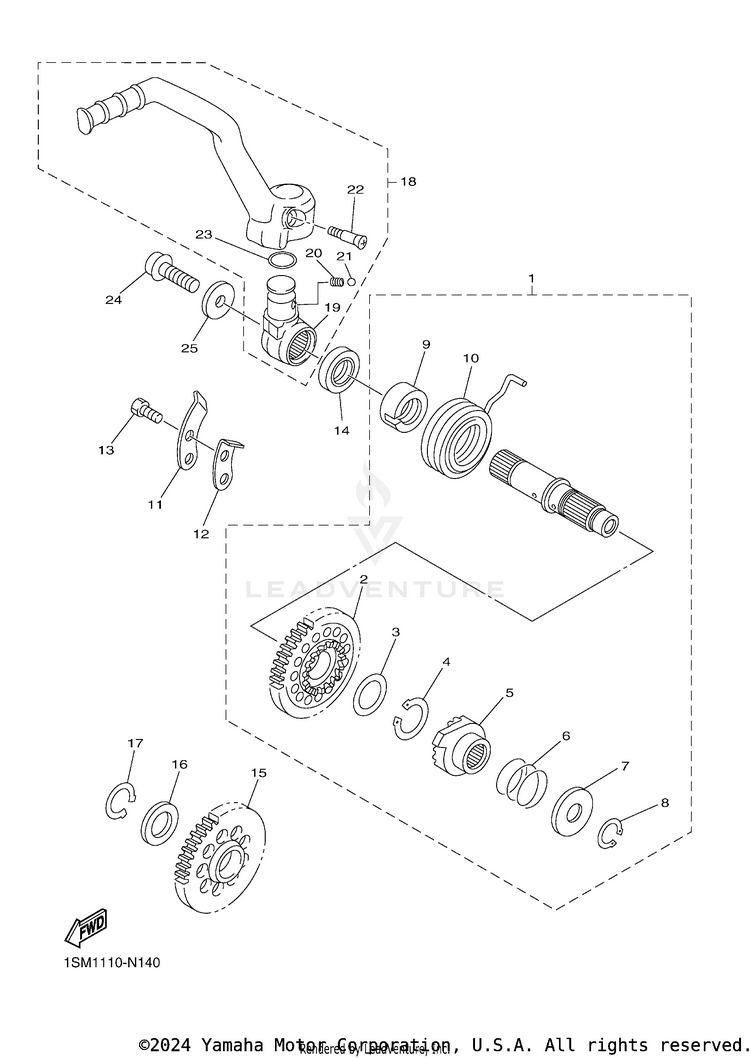

2017 Yamaha WR250F Starter OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	1SM-15601-00-00	KICK SHAFT ASSY	$214.99	$170.06	Usually ships in 7-10 business days
2	1SM-15641-00-00	GEAR, KICK	$78.99	$61.61	Usually ships in 7-10 business days
3	90201-20685-00	WASHER, PLATE (T=0.5)	$8.49	$6.62	1 In-Stock
4	93410-20038-00	CIRCLIP, S-TYPE	$4.05	$3.48	10+ In-Stock
5	2S2-15671-00-00	WHEEL, RATCHET	$59.99	$46.79	Usually ships in 7-10 business days
6	90501-160A2-00	SPRING, COMPRESSION	$4.20	$3.78	Usually ships in 7-10 business days
7	90201-167P7-00	WASHER, PLATE	$10.49	$8.60	Usually ships in 7-10 business days
8	99009-16400-00	CIRCLIP	$6.49	$5.06	4 In-Stock
9	5NL-15664-00-00	GUIDE, SPRING	$14.49	$11.30	1 In-Stock
10	90508-30743-00	SPRING, TORSION	$20.99	$16.37	1 In-Stock
11	2NX-15674-00-00 (replaces part # 214-15674-00-00)	GUIDE, RATCHET WHEEL	$10.99	$8.57	2 In-Stock
12	2NX-15668-00-00	STOPPER	$27.99	$22.95	Usually ships in 7-10 business days
13	97D95-06016-00 (replaces part # 90101-06044-00)	BOLT, HEXAGON DEEP R	$2.76	$2.37	10+ In-Stock
14	93102-18278-00	OIL SEAL \| INCL. IN BOTTOM END GASKET KIT	$13.49	$10.52	10+ In-Stock
15	1SM-15651-00-00	GEAR, KICK IDLE	$65.99	$51.47	Usually ships in 7-10 business days
16	90201-177G4-00	WASHER, PLATE	$10.49	$8.18	3 In-Stock
17	99009-17400-00	CIRCLIP	$5.49	$4.28	10+ In-Stock
18	1SM-15620-00-00	KICK CRANK ASSY	$232.99	$181.73	2 In-Stock
19	1SM-15621-00-00	BOSS, KICK CRANK	$69.99	$54.59	Usually ships in 7-10 business days
20	90501-147A5-00	SPRING, COMPRESSION	$9.49	$7.40	10+ In-Stock
21	93507-32031-00 (replaces part # 93507-32009-00)	BALL	$5.49	$4.28	10+ In-Stock
22	90151-06045-00	SCREW, COUNTERSUNK	$9.49	$7.40	10+ In-Stock
23	93210-17570-00	O-RING	$8.49	$6.62	7 In-Stock
24	90110-08052-00 (replaces part # 90110-08051-00)	BOLT, HEXAGON SOCKET HEAD	$9.49	$7.40	10+ In-Stock
25	90201-08048-00	WASHER, PLATE	$6.49	$5.06	10+ In-Stock
