2017 Yamaha WR250F Steering OEM Parts Diagram

Submodel WR250F - WR250FH - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

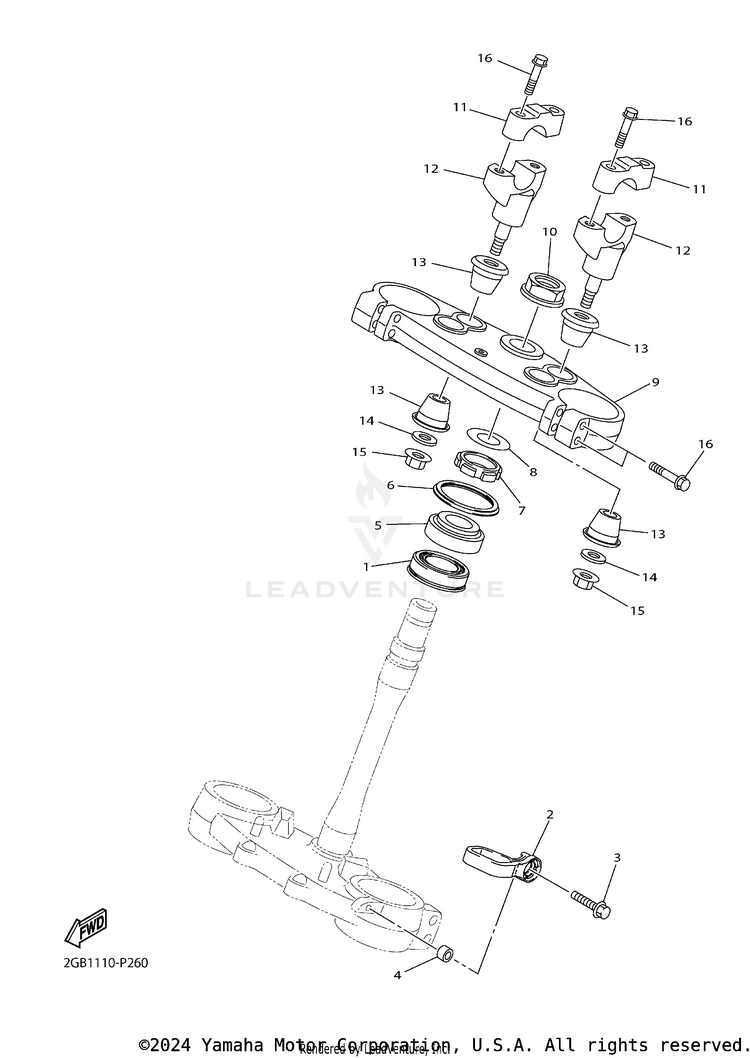

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
193332-00081-00BEARING$63.99$52.9410+ In-Stock
AFTERMARKET ALTERNATIVE
$47.99$43.9910+ In-Stock
217D-23389-50-00GUIDE, CABLE$15.49$12.0810+ In-Stock
390105-06170-00BOLT, FLANGE$5.49$4.2810+ In-Stock
490387-06105-00COLLAR$8.49$6.6210+ In-Stock
593332-00078-00

(replaces part #
93332-00068-00)

BEARING$70.99$55.9410+ In-Stock
AFTERMARKET ALTERNATIVE
$48.00$38.9910+ In-Stock
617D-23416-50-00COVER, BALL RACE 2$36.99$28.8510+ In-Stock
790179-28015-00NUT$41.99$32.755 In-Stock
890201-28020-00WASHER, PLATE$4.75$4.08Not Shipping
91SL-23435-00-00CROWN, HANDLE$144.99$114.59Usually ships in 7-10 business days
1090179-24004-00NUT$29.99$23.394 In-Stock
1118P-23441-00-00HOLDER, HANDLE UPPER$33.99$26.516 In-Stock
121SL-23442-00-00HOLDER, HANDLE LOWER$63.99$49.917 In-Stock
131SL-23434-00-00HOLDER, DAMPER$10.99$8.5710+ In-Stock
1490201-10035-00WASHER, PLATE$4.50$3.8710+ In-Stock
1595602-10200-00NUT, S/L FLANGE$2.70$2.3210+ In-Stock
1690105-08154-00BOLT, FLANGE$8.49$6.6210+ In-Stock
