2017 Yamaha YXZ1000R Graphics OEM Parts Diagram

Submodel YXZ1000R EPS - YXZ10YMXHL - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GRAPHICS

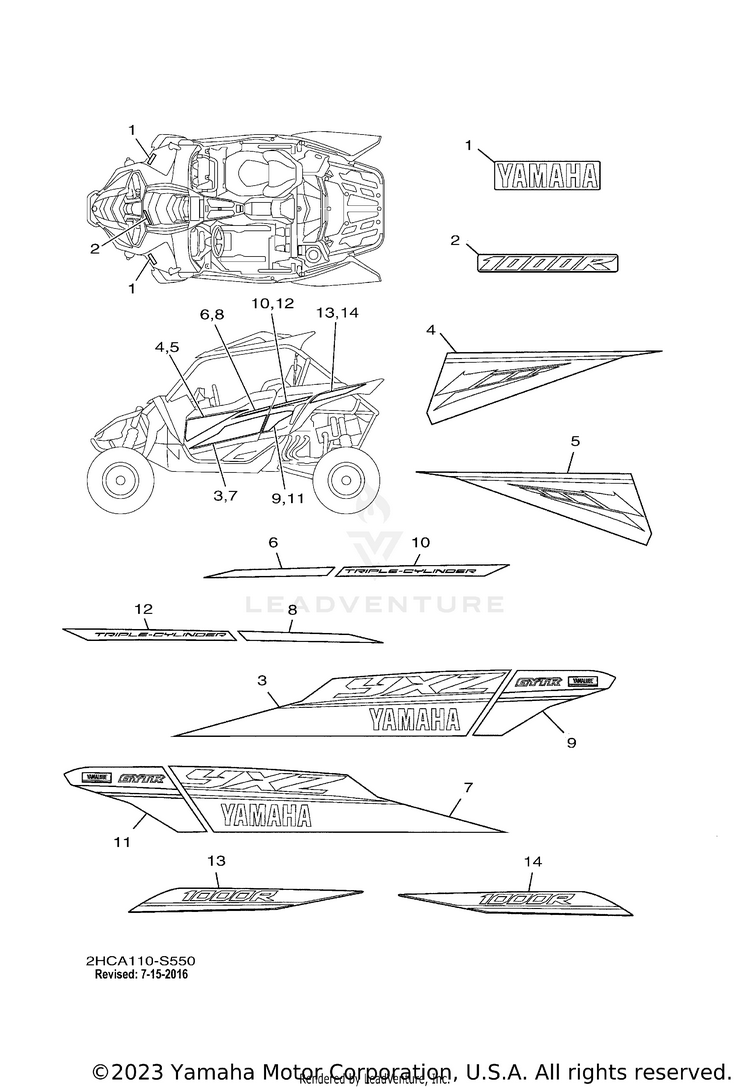

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12HC-F153E-00-00EMBLEM, YAMAHA$7.49$6.743 In-Stock
22HC-F1787-40-00EMBLEM 7$9.49$8.54Usually ships in 7-10 business days
32HC-F1781-41-00EMBLEM 1$99.99$77.99Usually ships in 7-10 business days
42HC-F174G-01-00GRAPHIC 3$44.99$36.89Usually ships in 7-10 business days
52HC-F174H-01-00GRAPHIC 4$44.99$36.89Usually ships in 7-10 business days
62HC-F1785-31-00EMBLEM 5$11.99$9.83Usually ships in 7-10 business days
72HC-F1782-41-00EMBLEM 2$99.99$77.99Usually ships in 7-10 business days
82HC-F1786-31-00EMBLEM 6$14.49$11.88Usually ships in 7-10 business days
92HC-F165G-40-00GRAPHIC, REAR (LH)$22.99$18.85Not Shipping
102HC-F1788-21-00GRAPHIC$11.49$9.42Usually ships in 7-10 business days
112HC-F165H-40-00GRAPHIC, REAR (RH)$31.99$26.23Usually ships in 7-10 business days
122HC-F1789-21-00GRAPHIC$12.99$10.65Usually ships in 7-10 business days
132HC-F163G-70-00EMBLEM 1$21.99$18.03Usually ships in 7-10 business days
142HC-F163H-70-00EMBLEM 2$21.99$18.03Usually ships in 7-10 business days
