2017 Yamaha YXZ1000R Headlight OEM Parts Diagram

Submodel YXZ1000R EPS - YXZ10YMXHL - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

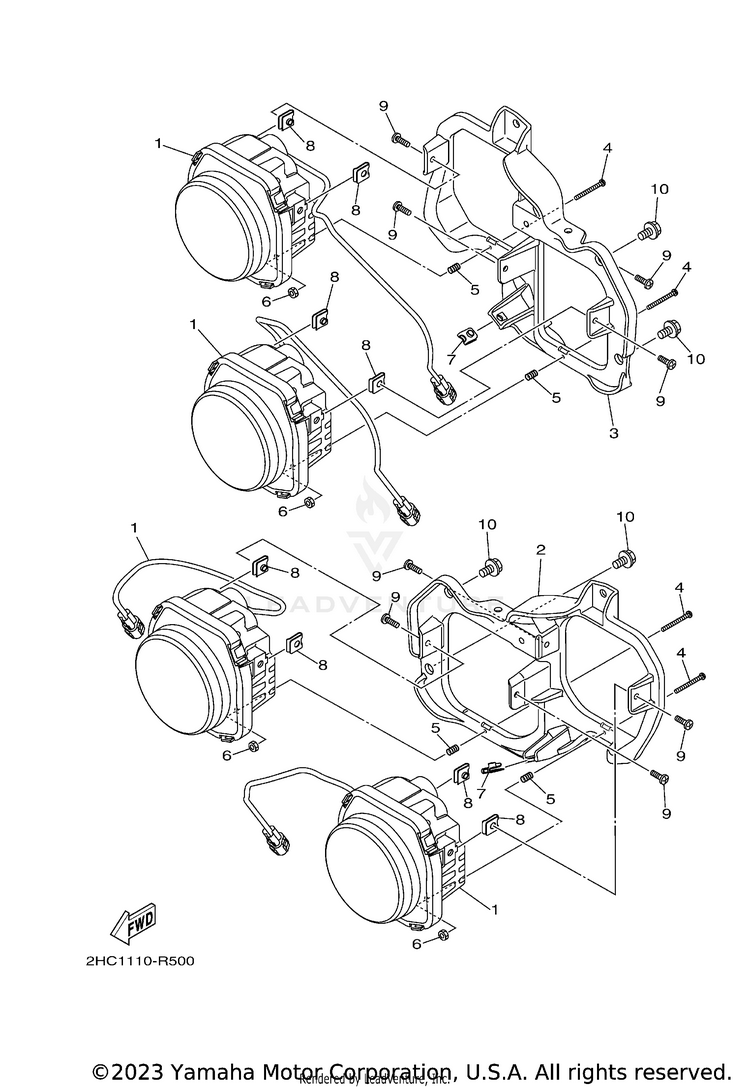

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12UD-84300-01-00

(replaces part #
2UD-84300-00-00)

HEADLIGHT ASSY$355.99$277.672 In-Stock
22HC-F831V-00-00STAY, HEAD LIGHT 1$51.99$40.55Usually ships in 7-10 business days
32HC-F832V-00-00STAY, HEAD LIGHT 2$51.99$40.55Usually ships in 7-10 business days
498502-03530-00SCREW, PAN HEAD$4.65$4.005 In-Stock
590501-08614-00SPRING, COMPRESSION$2.60$2.349 In-Stock
62GU-84334-00-00NUT, ADJUSTING$8.49$6.627 In-Stock
790183-060A6-00NUT, SPRING$5.99$4.6710+ In-Stock
890183-05008-00NUT, SPRING$10.49$8.1810+ In-Stock
998902-05016-00SCREW, BIND$1.85$1.5910+ In-Stock
1095817-08016-00

(replaces part #
95812-08016-00)

BOLT,FLANGE (JN5)$5.49$4.2810+ In-Stock
