2017 Yamaha YZ450F Radiator Hose OEM Parts Diagram

Submodel YZ450F - YZ450FHL - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

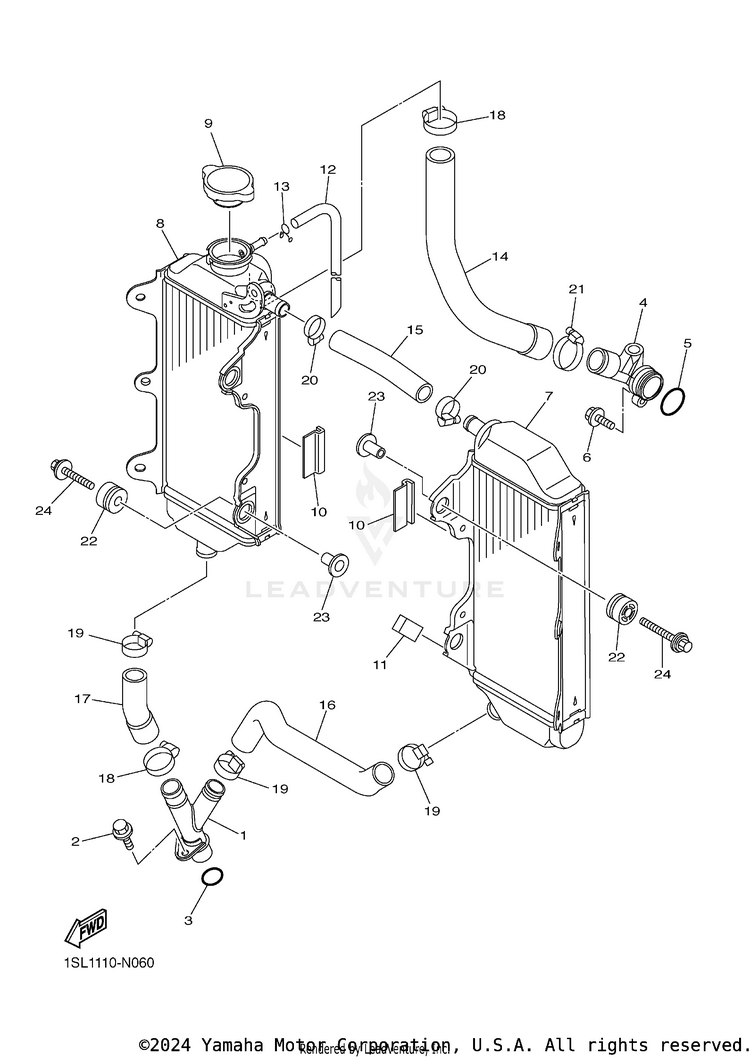

RADIATOR HOSE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11SL-12482-00-00PIPE 2$70.99$55.3710+ In-Stock
295022-06012-00BOLT, FLANGE$3.55$3.0510+ In-Stock
393210-16500-00O-RING$8.49$6.6210+ In-Stock
41SL-12446-00-00JOINT$32.99$27.05Usually ships in 7-10 business days
593210-24253-00O-RING | INCL. IN BOTTOM END GASKET KIT$8.49$6.6210+ In-Stock
695022-06020-00BOLT, FLANGE$3.90$3.3510+ In-Stock
71SL-1240A-00-00RADIATOR ASSY$352.99$275.334 In-Stock
81SL-12461-00-00RADIATOR COMP$524.99$409.492 In-Stock
95SL-12462-01-00

(replaces part #
5SL-12462-00-00)

CAP, RADIATOR$35.99$28.077 In-Stock
1033D-12465-00-00DAMPER, RADIATOR$15.49$12.0810+ In-Stock
115YT-24665-00-00DAMPER$8.49$6.623 In-Stock
1291A20-05080-00

(replaces part #
91A20-05065-00)

TUBE, FLEXIBLE VINYL$16.49$12.8610+ In-Stock
1390467-090A2-00CLIP$4.75$4.0810+ In-Stock
141SL-12576-00-00HOSE 1$19.99$15.593 In-Stock
151SL-12577-00-00HOSE 2$10.99$8.572 In-Stock
161SL-12578-00-00HOSE 3$22.99$17.934 In-Stock
171SL-12579-00-00HOSE 4$11.99$9.353 In-Stock
1890450-28001-00HOSE CLAMP ASSY$16.49$12.8610+ In-Stock
1990450-22M14-00

(replaces part #
90450-25001-00)

HOSE CLAMP ASSY$17.49$13.6410+ In-Stock
2090450-18M09-00

(replaces part #
90450-22001-00)

HOSE CLAMP ASSY$11.49$10.0710+ In-Stock
2190450-32003-00HOSE CLAMP ASSY$18.49$14.422 In-Stock
2290480-15012-00GROMMET$8.49$6.6210+ In-Stock
2390387-06065-00COLLAR$13.49$10.5210+ In-Stock
2490119-06262-00BOLT, WITH WASHER$9.49$7.4010+ In-Stock
