2017 Yamaha YZ450F Shift Cam Fork OEM Parts Diagram

Submodel YZ450F - YZ450FHL - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT CAM FORK

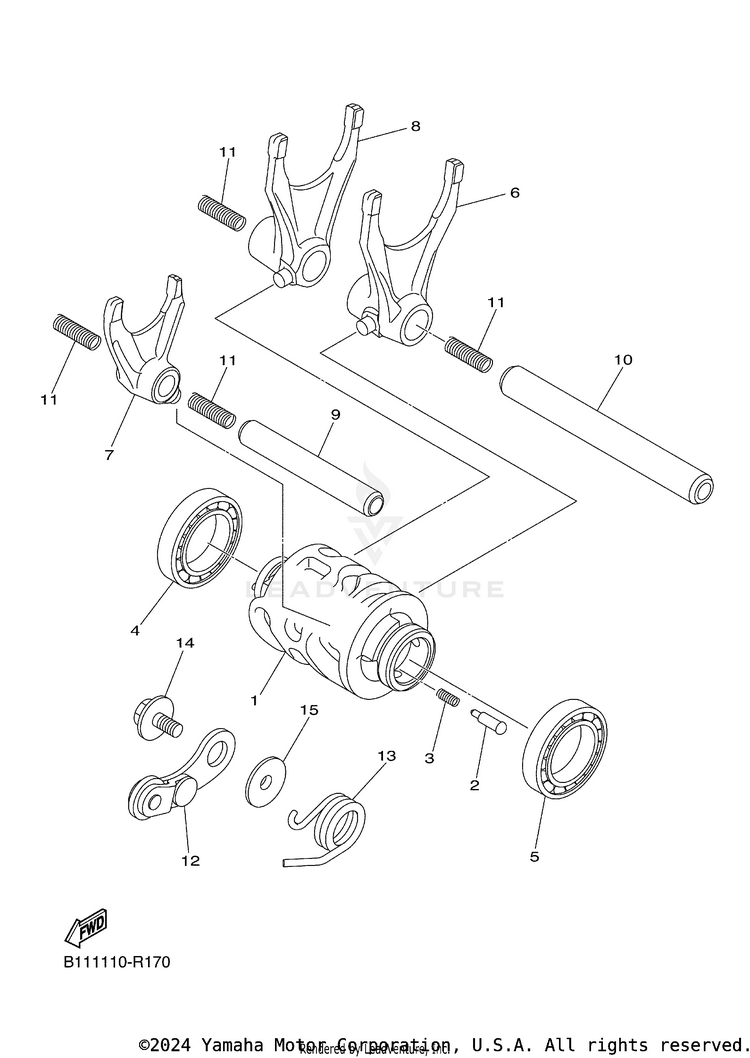

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11SL-18541-00-00CAM, SHIFT$96.99$75.65Usually ships in 7-10 business days
23D7-18542-00-00POINT, NEUTRAL$7.49$5.84
390501-06022-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
493306-90409-00BEARING$39.99$31.1910+ In-Stock
593306-80502-00BEARING$42.99$33.5310+ In-Stock
61SL-18511-00-00FORK, SHIFT 1$79.99$62.3910+ In-Stock
71SL-18512-00-00FORK, SHIFT 2$75.99$59.277 In-Stock
81SL-18513-00-00FORK, SHIFT 3$79.99$62.399 In-Stock
91SL-18531-00-00BAR, SHIFT FORK GUIDE 1$30.99$24.173 In-Stock
101SL-18535-00-00BAR, SHIFT FORK GUIDE 2$37.99$29.635 In-Stock
1190501-064L1-00SPRING, COMPRESSION$2.35$2.0210+ In-Stock
122GB-18140-10-00STOPPER LEVER ASSY$36.99$28.855 In-Stock
1390508-29041-00SPRING, TORSION$5.49$4.286 In-Stock
1490159-06028-00

(replaces part #
90159-06027-00)

SCREW, WITH WASHER$8.49$6.623 In-Stock
1533D-18175-00-00SPACER$16.49$12.863 In-Stock
