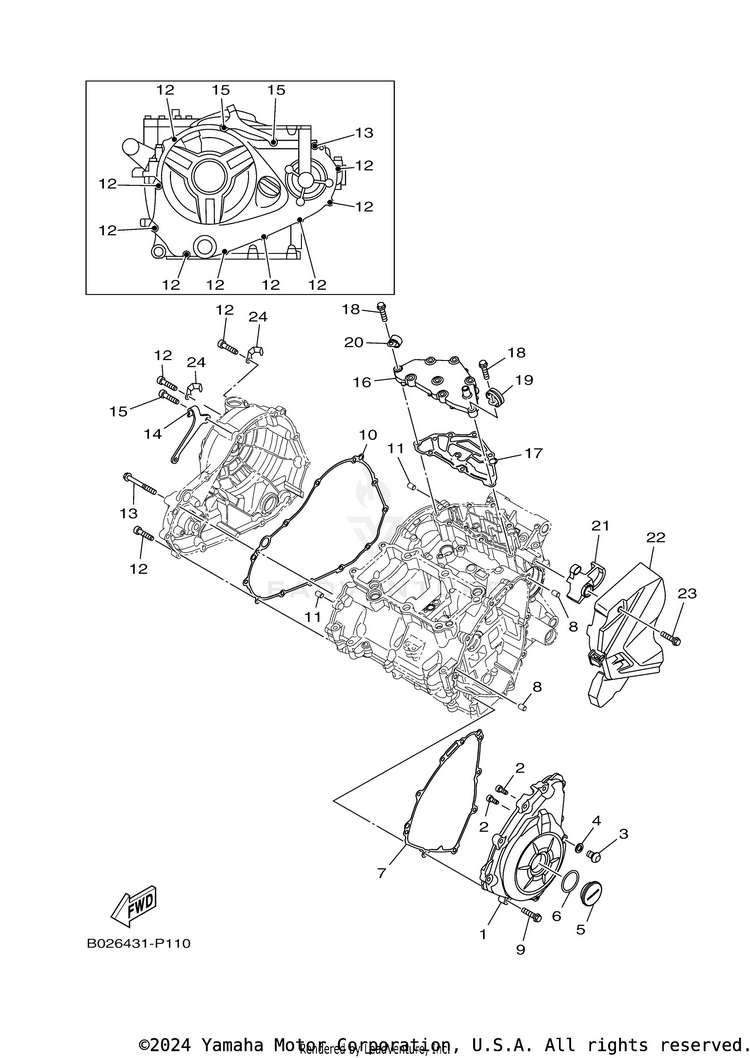

2017 Yamaha YZF-R3 Crankcase Cover 1 OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	1WD-E5411-00-00	COVER, CRANKCASE 1	$112.99	$92.34	Usually ships in 7-10 business days
2	91317-05012-00 (replaces part # 91312-05012-00)	BOLT	$2.75	$2.36	10+ In-Stock
3	92014-08012-00	BOLT, BUTTON HEAD	$10.49	$8.60	4 In-Stock
4	90430-08143-00	GASKET	$3.45	$2.97	5 In-Stock
5	90340-32819-00	PLUG, STRAIGHT SCREW	$13.49	$11.06	Usually ships in 7-10 business days
6	93210-32816-00	O-RING	$3.50	$3.15	Usually ships in 7-10 business days
7	1WD-E5451-00-00	GASKET, CRANKCASE COVER 1	$6.49	$5.84	Usually ships in 7-10 business days
8	99530-08012-00	PIN, DOWEL	$6.99	$5.45	10+ In-Stock
9	95022-06025-00	BOLT, FLANGE	$1.90	$1.63	10+ In-Stock
10	1WD-E5461-00-00	GASKET, CRANKCASE COVER 2 \| INCL. IN CLUTCH KIT	$60.99	$48.60	Usually ships in 7-10 business days
11	99530-08012-00	PIN, DOWEL	$6.99	$5.45	10+ In-Stock
12	95022-06025-00	BOLT, FLANGE	$1.90	$1.63	10+ In-Stock
13	95022-06050-00	BOLT, FLANGE	$1.80	$1.55	6 In-Stock
14	2MS-E5441-00-00	HOLDER, CLUTCH CABLE	$2.80	$2.52	Usually ships in 7-10 business days
15	91317-06025-00 (replaces part # 91312-06025-00)	BOLT, HEXAGON SOCKET HEAD	$2.65	$2.28	10+ In-Stock
16	1WD-E5413-10-00	COVER	$46.99	$41.23	Usually ships in 7-10 business days
17	1WD-E5462-00-00	GASKET, CRANKCASE COVER 3	$3.70	$3.33	Usually ships in 7-10 business days
18	95022-06025-00	BOLT, FLANGE	$1.90	$1.63	10+ In-Stock
19	90462-08812-00	CLAMP	$0.75	$0.68	Usually ships in 7-10 business days
20	90462-08806-00	CLAMP	$8.99	$8.09	Usually ships in 7-10 business days
21	BS7-E5377-00-00 (replaces part # 1WD-E5377-00-00)	GUIDE, INLET	$10.49	$8.60	Usually ships in 7-10 business days
22	1WD-E5418-00-00	COVER, CHAIN CASE	$29.99	$24.60	Usually ships in 7-10 business days
23	95022-06025-00	BOLT, FLANGE	$1.90	$1.63	10+ In-Stock
24	90462-08225-00	CLAMP	$9.49	$8.54	Usually ships in 7-10 business days
