2017 Yamaha YZF-R3 Handle Switch Lever OEM Parts Diagram

Submodel R3ABS - YZFR3AHB - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLE SWITCH LEVER

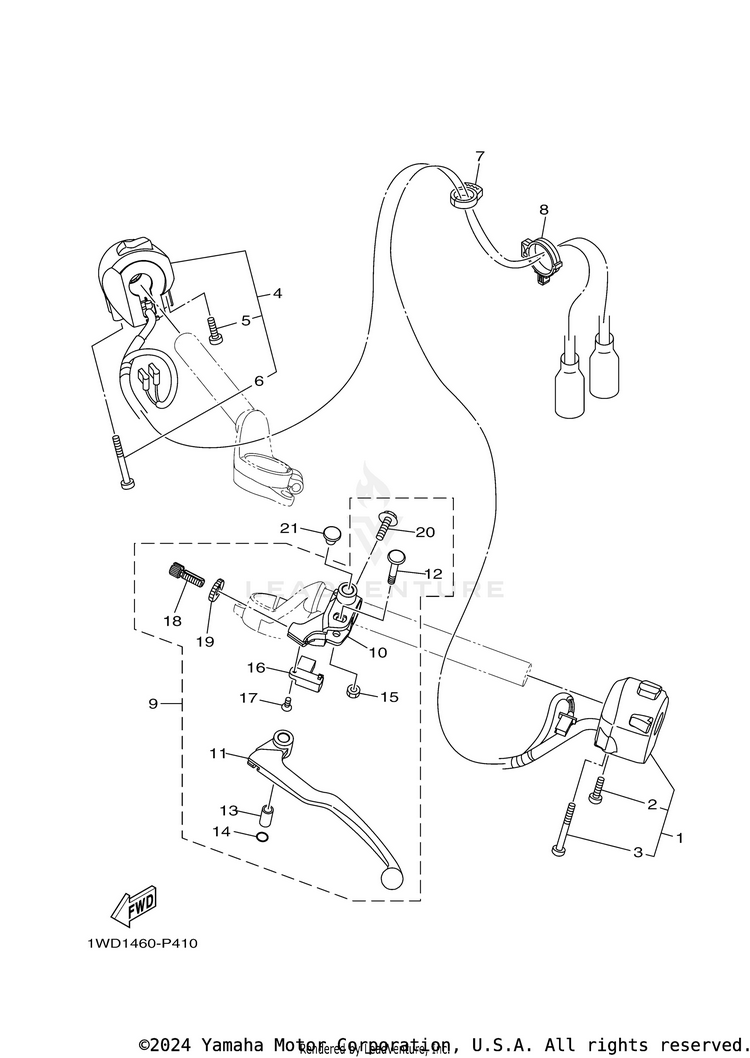

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11WD-H3972-00-00SWITCH, HANDLE 4$117.99$96.26Usually ships in 7-10 business days
21WD-H2133-00-00SCREW, FITTING$0.85$0.76Usually ships in 7-10 business days
31WD-H395W-00-00SCREW, SWITCH FITTING$1.60$1.44Usually ships in 7-10 business days
41WD-H3975-00-00SWITCH, HANDLE 2$90.99$73.89Usually ships in 7-10 business days
545P-H2133-00-00SCREW, FITTING$1.00$0.90Usually ships in 7-10 business days
645P-H395W-00-00SCREW, SWITCH FITTING$0.65$0.58Usually ships in 7-10 business days
790464-16003-00CLAMP$7.99$7.19Usually ships in 7-10 business days
890464-30001-00CLAMP$8.49$7.64Usually ships in 7-10 business days
91WD-H2910-00-00LEVER HOLDER ASSY (LEFT)$108.99$89.45Usually ships in 7-10 business days
101WD-H2911-00-00HOLDER, LEVER 1$19.49$16.39Usually ships in 7-10 business days
111WD-H3912-00-00LEVER 1-$18.174 In-Stock
1231A-83945-00-00BOLT, LEVER$5.99$5.391 In-Stock
1331A-83913-00-00COLLAR, LEVER 1$24.99$20.49Usually ships in 7-10 business days
1493210-10118-00

(replaces part #
93210-108H5-00)

O-RING$8.49$7.64Usually ships in 7-10 business days
1595617-06100-00

(replaces part #
95602-06100-00)

NUT, U$2.90$2.4910+ In-Stock
165BP-H2917-00-00SWITCH$17.49$14.34Usually ships in 7-10 business days
1798707-03008-00

(replaces part #
90151-03005-00)

SCREW, FLAT HEAD$8.49$7.64Usually ships in 7-10 business days
1890123-08002-00

(replaces part #
90123-08083-00)

BOLT$10.49$8.1810+ In-Stock
1990179-08030-00

(replaces part #
90179-08316-00)

NUT$10.49$8.1810+ In-Stock
2097507-06525-00BOLT, WITH WASHER$1.40$1.26Usually ships in 7-10 business days
2190338-09012-00PLUG$10.49$8.186 In-Stock
