2017 Yamaha YZF-R3 Electrical 1 OEM Parts Diagram

Submodel R3ABS - YZFR3AHW - 2017

Shop Aftermarket Parts

ELECTRICAL 1

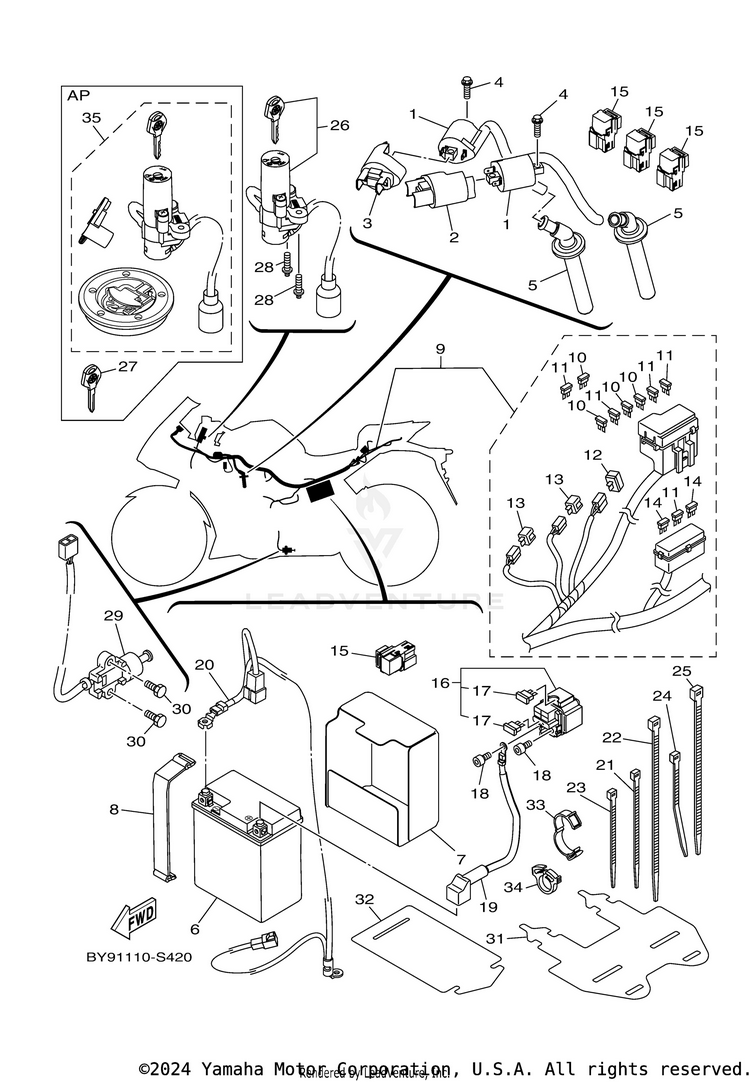

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11WD-H2310-02-00

(replaces part #
1WD-H2310-00-00)

IGNITION COIL ASSY$25.99$21.31Usually ships in 7-10 business days
2B04-H2314-00-00COVER, IGNITION COIL$11.49$9.42Usually ships in 7-10 business days
3B04-H2314-10-00COVER, IGNITION COIL$11.49$9.42Usually ships in 7-10 business days
495022-06020-00BOLT, FLANGE$3.90$3.3510+ In-Stock
51WD-H2370-00-00PLUG CAP ASSY$51.99$40.55Usually ships in 7-10 business days
6GTZ-8V000-00-00

(replaces part #
1WD-H2100-00-00)

BATTERY (GSGTZ8V) "$103.99$86.49Usually ships in 7-10 business days
71WD-H2121-00-00PAD, BATTERY$11.49$9.42Usually ships in 7-10 business days
81WD-H2131-00-00BAND, BATTERY$9.49$8.54Usually ships in 7-10 business days
9BY9-H2590-00-00WIRE HARNESS ASSY$370.99$306.62Usually ships in 7-10 business days
101WD-H2151-20-00FUSE (7.5A BL)$2.80$2.52Usually ships in 7-10 business days
111WD-H2151-10-00FUSE (15A-BL)$10.49$8.72Usually ships in 7-10 business days
124WA-81980-00-00DIODE ASSY$32.99$25.7310+ In-Stock
133WP-81980-00-00DIODE ASSY$24.99$19.498 In-Stock
141WD-H2151-30-00FUSE (30A)$2.60$2.34Usually ships in 7-10 business days
151WD-H1950-00-00RELAY ASSY$47.99$41.00Usually ships in 7-10 business days
161WD-H1940-00-00STARTER RELAY ASSY$37.99$31.77Usually ships in 7-10 business days
171WD-H2151-01-00

(replaces part #
1WD-H2151-00-00)

. .FUSE (30A)$0.95$0.86Usually ships in 7-10 business days
1891312-05008-00BOLT, HEXAGON SOCKET HEAD$8.49$6.623 In-Stock
192WD-H2115-00-00WIRE, PLUS LEAD$18.49$15.16Usually ships in 7-10 business days
202WD-H2116-01-00WIRE, MINUS LEAD$34.99$28.69Usually ships in 7-10 business days
211UA-82591-00-00

(replaces part #
90464-36800-00)

BAND$5.49$4.2810+ In-Stock
2290464-70800-00CLAMP$0.85$0.76Usually ships in 7-10 business days
2390464-22800-00CLAMP$1.15$1.04Usually ships in 7-10 business days
2490464-36005-00CLAMP$0.99$0.89Usually ships in 7-10 business days
2590464-50800-00CLAMP$1.85$1.66Usually ships in 7-10 business days
261WD-H2501-02-00MAIN SWITCH STEERING LOCK$127.99$104.03Usually ships in 7-10 business days
271WD-H2511-09-00BLANK KEY | AP$19.49$16.39Usually ships in 7-10 business days
2890109-06282-00

(replaces part #
90109-060G4-00)

BOLT$5.49$4.94Usually ships in 7-10 business days
291WD-H2566-02-00

(replaces part #
1WD-H2566-00-00)

SWITCH, SIDE STAND$38.99$31.97Usually ships in 7-10 business days
3091317-05018-00

(replaces part #
90110-05809-00)

BOLT$1.25$1.12Usually ships in 7-10 business days
311WD-F179E-00-00BAND$6.49$5.84Usually ships in 7-10 business days
321WD-H2591-00-00BAND$2.90$2.61Usually ships in 7-10 business days
3390464-26001-00CLAMP$2.40$2.16Usually ships in 7-10 business days
3490464-08009-00CLAMP$1.90$1.71Usually ships in 7-10 business days
351WD-XH250-02-00MAIN SWITCH STEERING LOCK SUB A | AP$239.99$187.19Usually ships in 7-10 business days
