2017 Yamaha YZF-R3 Front Wheel OEM Parts Diagram

Submodel R3ABS - YZFR3AHW - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

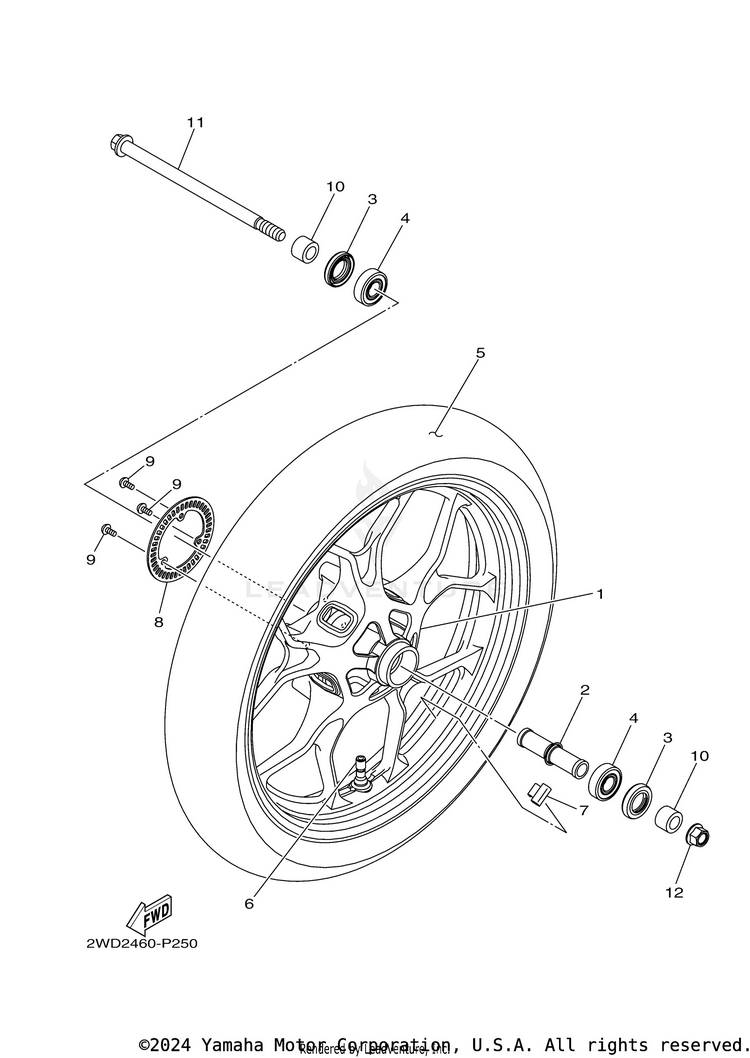

FRONT WHEEL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12WD-F5168-03-0X

(replaces part #
2WD-F5168-01-0X)

CAST WHEEL, FRONT | LGB/DRSC FOR MBL2$635.99$529.61Usually ships in 7-10 business days
1BS7-F5168-10-98

(replaces part #
2WD-F5168-01-98)

CAST WHEEL, FRONT | LGB FOR WM6$335.99$276.61Usually ships in 7-10 business days
21WD-F510C-01-00

(replaces part #
1WD-F510C-00-00)

COLLAR ASSY.$14.99$12.29Usually ships in 7-10 business days
393106-26005-00

(replaces part #
93106-26815-00)

OIL SEAL$7.49$5.927 In-Stock
493306-302X4-00BEARING$46.99$42.81Usually ships in 7-10 business days
594111-17808-00

(replaces part #
94111-17803-00)

REAR DRIVE SHAFT ASS$151.99$124.45Usually ships in 7-10 business days
693900-00828-00VALVE, RIM$4.95$4.46Usually ships in 7-10 business days
75MT-25398-20-00BALANCER, WHEEL (30G) | UN$46.99$38.53Usually ships in 7-10 business days
75MT-25398-00-00BALANCER, WHEEL (10G) | UN$18.99$15.574 In-Stock
75MT-25398-10-00BALANCER, WHEEL (20G) | UN$18.99$15.57Usually ships in 7-10 business days
82DP-F517G-00-00ROTOR, SENSOR$12.49$10.24Usually ships in 7-10 business days
990149-05030-00

(replaces part #
90149-05029-00)

SCREW$2.80$2.4110+ In-Stock
101PA-F5386-00-00COLLAR, SPROCKET AXLE$24.99$20.49Usually ships in 7-10 business days
111WD-25181-00-00AXLE, WHEEL$47.99$39.351 In-Stock
1295602-14200-00NUT, SELF-LOCKING$12.49$10.24Usually ships in 7-10 business days
