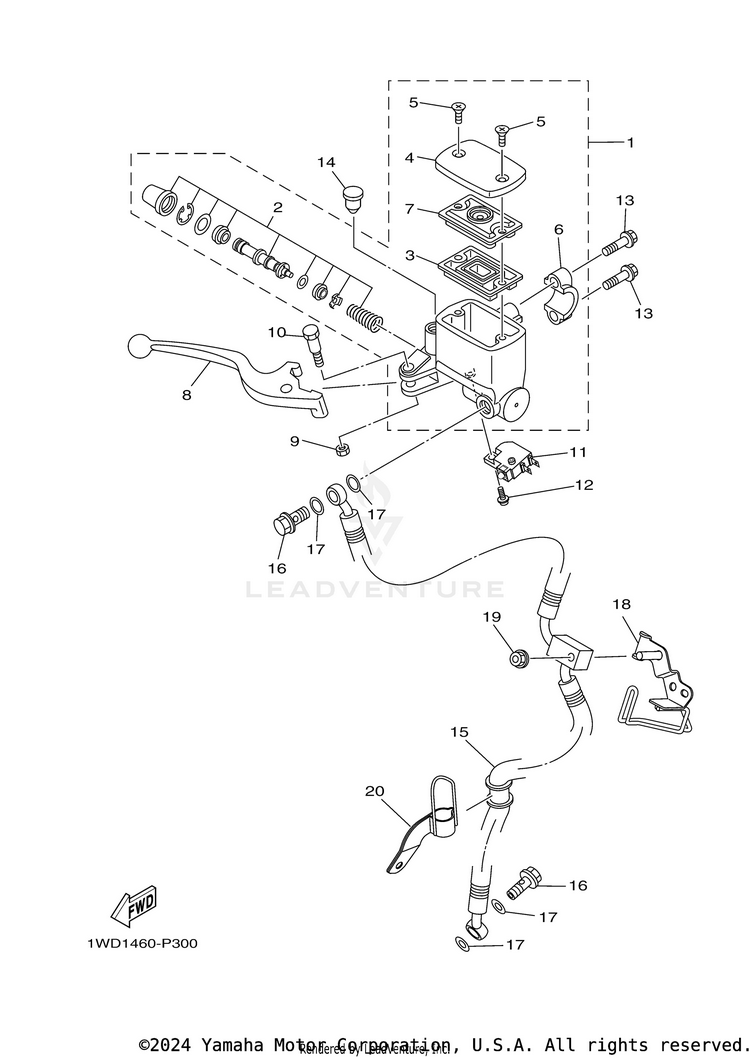

2017 Yamaha YZF-R3 Front Master Cylinder OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	1WD-F5870-00-00	MASTER CYLINDER SUB ASSY	$93.99	$73.31	Usually ships in 7-10 business days
2	1WD-F5807-00-00	CYLINDER KIT, MASTER	$36.99	$30.33	Usually ships in 7-10 business days
3	5RB-25854-00-00	DIAPHRAGM, RESERVOIR	$6.49	$5.06	2 In-Stock
4	1WD-F5852-00-00	CAP, RESERVOIR	$8.49	$7.64	2 In-Stock
5	98707-04012-00 (replaces part # 36Y-2589H-00-00)	SCREW, FLAT HEAD	-	$1.94	10+ In-Stock
6	56A-25867-00-00 (replaces part # 3RW-F5867-00-00)	BRACKET, MASTER CYLINDER	$31.99	$24.95	3 In-Stock
7	3C1-F5855-00-00	BUSH, DIAPHRAGM	$0.45	$0.40	Usually ships in 7-10 business days
8	1WD-H3922-00-00	LEVER 2	$10.49	$8.24	6 In-Stock
9	95617-06100-00 (replaces part # 95602-06100-00)	NUT, U	$2.90	$2.49	10+ In-Stock
10	90109-06577-00	BOLT	$6.49	$5.06	10+ In-Stock
11	1HP-83980-03-00 (replaces part # 1HP-83980-01-00)	FRONT STOP SWITCH AS	$34.99	$27.29	4 In-Stock
12	97602-04216-00 (replaces part # 97602-04212-00)	SCREW, PAN HEAD WITH	$3.65	$3.28	Usually ships in 7-10 business days
13	95027-06025-00	BOLT, FLANGE	$4.16	$3.58	10+ In-Stock
14	90338-09012-00	PLUG	$10.49	$8.18	6 In-Stock
15	1WD-F5872-00-00	HOSE, BRAKE 1	$42.99	$35.25	Usually ships in 7-10 business days
16	90401-10159-00 (replaces part # 90401-10812-00)	BOLT, UNION	$12.49	$9.74	10+ In-Stock
17	90201-10118-00	WASHER, PLATE	$3.80	$3.27	10+ In-Stock
18	1WD-F5875-00-00	HOLDER, BRAKE HOSE 1	$2.65	$2.38	Usually ships in 7-10 business days
19	95702-06500-00	NUT, WITH WASHER	$2.60	$2.24	10+ In-Stock
20	1WD-F5876-00-00	HOLDER, BRAKE HOSE 2	$3.15	$2.84	Usually ships in 7-10 business days
