2017 Yamaha YZF-R3 Seat OEM Parts Diagram

Submodel R3 - YZFR3HB - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

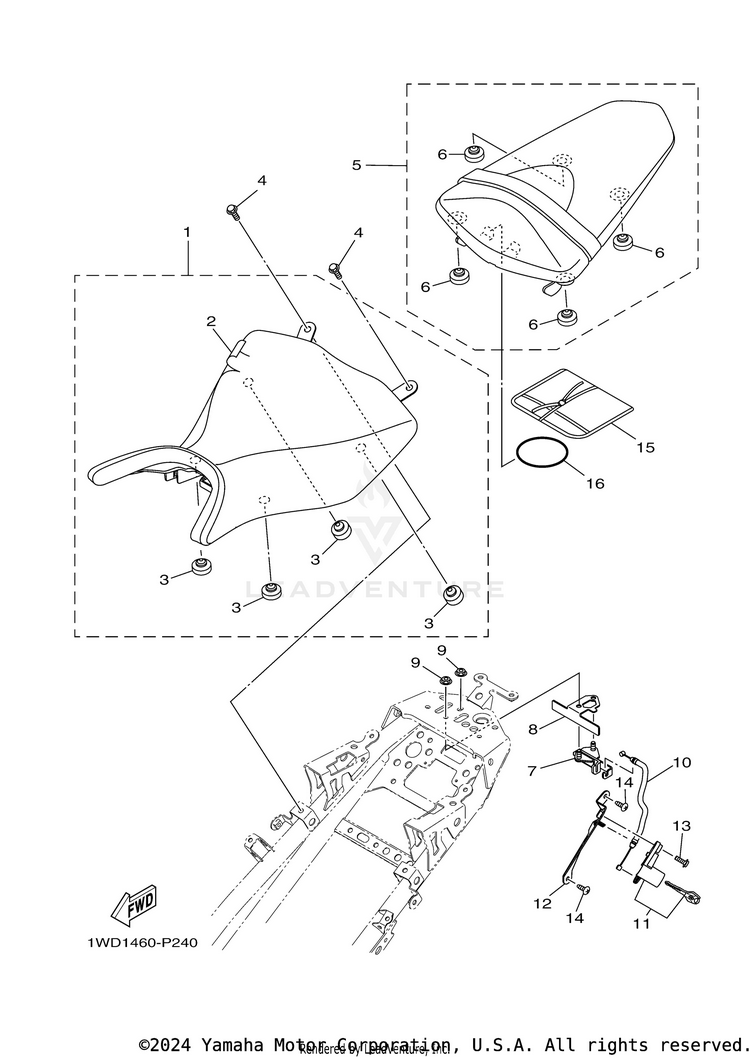

SEAT

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11WD-F4710-03-00

(replaces part #
1WD-F4710-01-00)

SINGLE SEAT ASSY$47.99$41.00Usually ships in 7-10 business days
21WD-F4711-01-00

(replaces part #
1WD-F4711-00-00)

COVER, SINGLE SEAT$12.49$10.24Usually ships in 7-10 business days
35BP-F4741-00-00PAD, SEAT$3.50$3.15Usually ships in 7-10 business days
495022-06012-00BOLT, FLANGE$3.55$3.0510+ In-Stock
51WD-F4750-01-00

(replaces part #
1WD-F4750-00-00)

TANDEM SEAT ASSY$72.99$58.33Usually ships in 7-10 business days
63C1-F4741-00-00PAD, SEAT$2.35$2.12Usually ships in 7-10 business days
71WD-F4780-00-00SEAT LOCK ASSY$20.99$17.42Usually ships in 7-10 business days
81WD-F4792-00-00PLATE$17.49$14.34Usually ships in 7-10 business days
995707-06500-00NUT, FLANGE$1.00$0.9910+ In-Stock
101WD-F478E-00-00CABLE, SEAT LOCK$8.49$7.64Usually ships in 7-10 business days
111WD-WF479-00-00ROTOR SUB ASSY WITH KEY$66.99$53.45Usually ships in 7-10 business days
121WD-F117K-00-00STAY, LOCK$4.50$4.05Usually ships in 7-10 business days
1390159-06054-00SCREW, WITH WASHER$2.80$2.52Usually ships in 7-10 business days
1497702-50016-00SCREW, TAPPING$2.60$2.249 In-Stock
151WD-F8100-00-00TOOL KIT$38.99$32.80Usually ships in 7-10 business days
165VV-H2131-00-00

(replaces part #
5TL-H2131-00-00)

BAND, BATTERY$2.90$2.61Usually ships in 7-10 business days
