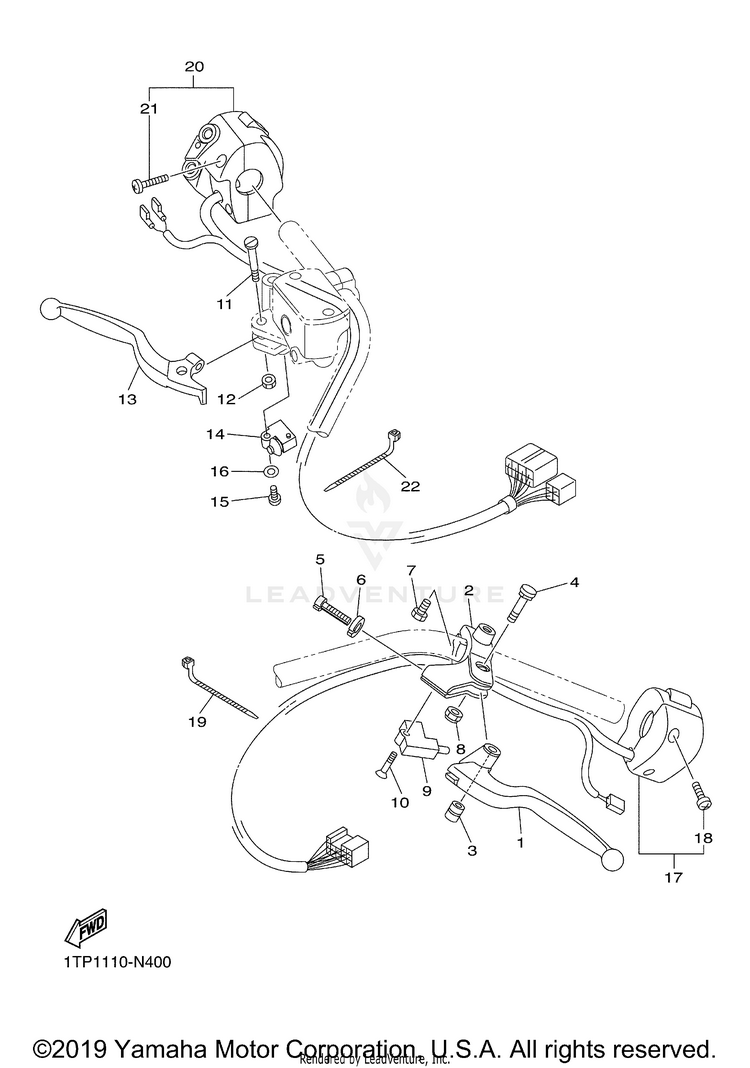

HANDLE SWITCH LEVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15BN-83912-20-00LEVER 1$53.99$42.11Usually ships in 7-10 business days
25BN-82911-20-00HOLDER, LEVER 1$61.99$48.35Usually ships in 7-10 business days
34TR-83913-00-00COLLAR, LEVER 1$8.49$6.6210+ In-Stock
44TR-83945-10-00BOLT, LEVER$15.49$12.70Usually ships in 7-10 business days
590123-08002-00

(replaces part #
90123-08083-00)

BOLT$10.49$8.1810+ In-Stock
690179-08030-00

(replaces part #
90179-08316-00)

NUT$10.49$8.1810+ In-Stock
797017-06020-00

(replaces part #
97007-06020-00)

BOLT$4.06$3.4910+ In-Stock
895617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
93YX-82917-01-00SWITCH$47.99$37.435 In-Stock
1098702-03020-00SCREW, FLAT HEAD$2.30$2.07Usually ships in 7-10 business days
115VS-2589F-00-00BOLT, LEVER$15.49$12.082 In-Stock
1295617-06100-00

(replaces part #
95602-06100-00)

NUT, U$2.90$2.4910+ In-Stock
133D8-83922-10-00LEVER 2$53.99$42.111 In-Stock
1436Y-82917-00-00STOP SWITCH ASSY$49.99$40.99Usually ships in 7-10 business days
1598580-04014-00

(replaces part #
98502-04014-00)

SCREW, PAN HEAD$3.30$2.8410+ In-Stock
1692990-04600-00

(replaces part #
92902-04600-00)

WASHER, PLATE$0.99$0.907 In-Stock
171TP-83973-00-00SWITCH, HANDLE 3$163.99$127.91Usually ships in 7-10 business days
1898517-05030-00

(replaces part #
98507-05030-00)

SCREW, PAN HEAD$11.49$8.962 In-Stock
1990464-15195-00

(replaces part #
90464-13073-00)

CLAMP$4.41$3.7910+ In-Stock
201TP-83972-00-00SWITCH, HANDLE 4$223.99$174.71Usually ships in 7-10 business days
2198517-05030-00

(replaces part #
98507-05030-00)

SCREW, PAN HEAD$11.49$8.962 In-Stock
2290464-15195-00

(replaces part #
90464-13073-00)

CLAMP$4.41$3.7910+ In-Stock
