2018 Yamaha Bolt Intake 2 OEM Parts Diagram

Submodel BOLT - XVS95CJCB - 2018

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

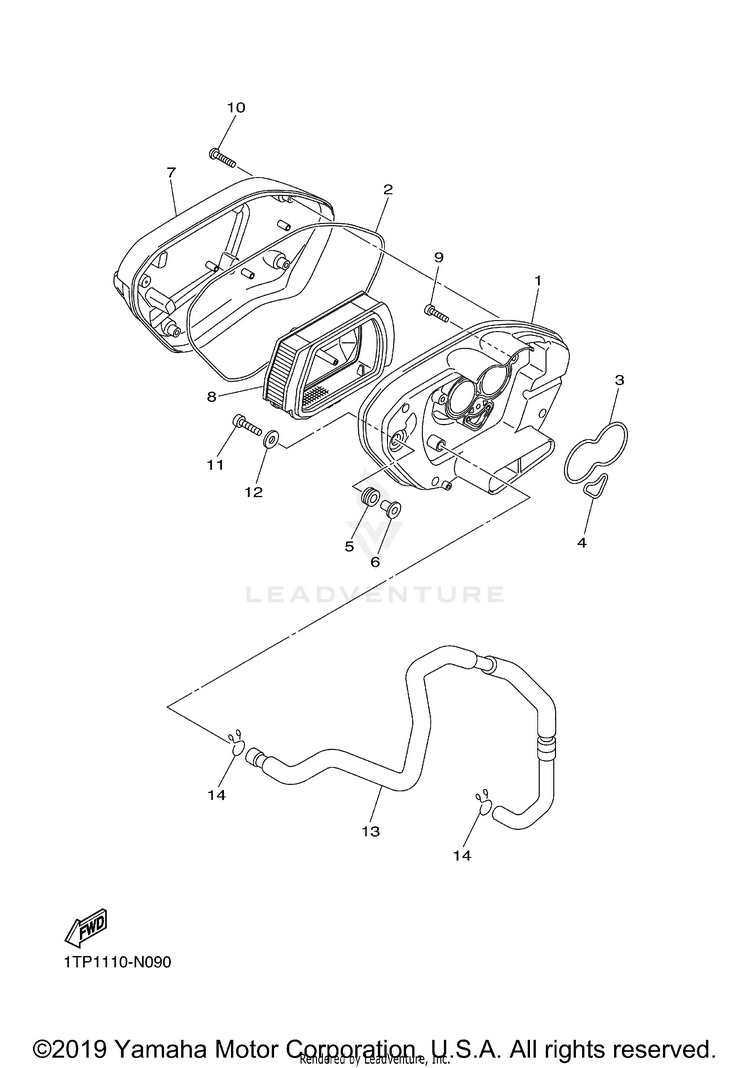

INTAKE 2

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11TP-14411-00-00CASE, AIR CLEANER 1$92.99$72.53Usually ships in 7-10 business days
21TP-14452-00-00SEAL$21.99$18.03Usually ships in 7-10 business days
33D8-14457-00-00SEAL$7.49$6.74Usually ships in 7-10 business days
43D8-14462-00-00SEAL$7.49$6.74Usually ships in 7-10 business days
590480-14023-00GROMMET$8.49$6.6210+ In-Stock
690387-06158-00

(replaces part #
90387-063E6-00)

COLLAR$9.49$7.4010+ In-Stock
71XC-14402-00-00CAP ASSY, AIR CLEANER$257.99$201.23Usually ships in 7-10 business days
81TP-14451-00-00ELEMENT, AIR CLEANER$49.99$38.993 In-Stock
991312-05025-00BOLT, HEXAGON SOCKET HEAD$9.49$7.406 In-Stock
1090111-05024-00BOLT, HEX. SOCKET BUTTON$4.50$4.054 In-Stock
1191317-06025-00

(replaces part #
91312-06025-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
1290201-06062-00WASHER, PLATE$11.49$9.42Usually ships in 7-10 business days
13BS5-11166-00-00PIPE, BREATHER 1$76.99$60.05Usually ships in 7-10 business days
1490467-15M14-00

(replaces part #
90467-16195-00)

CLIP$3.55$3.053 In-Stock
