ELECTRICAL 3

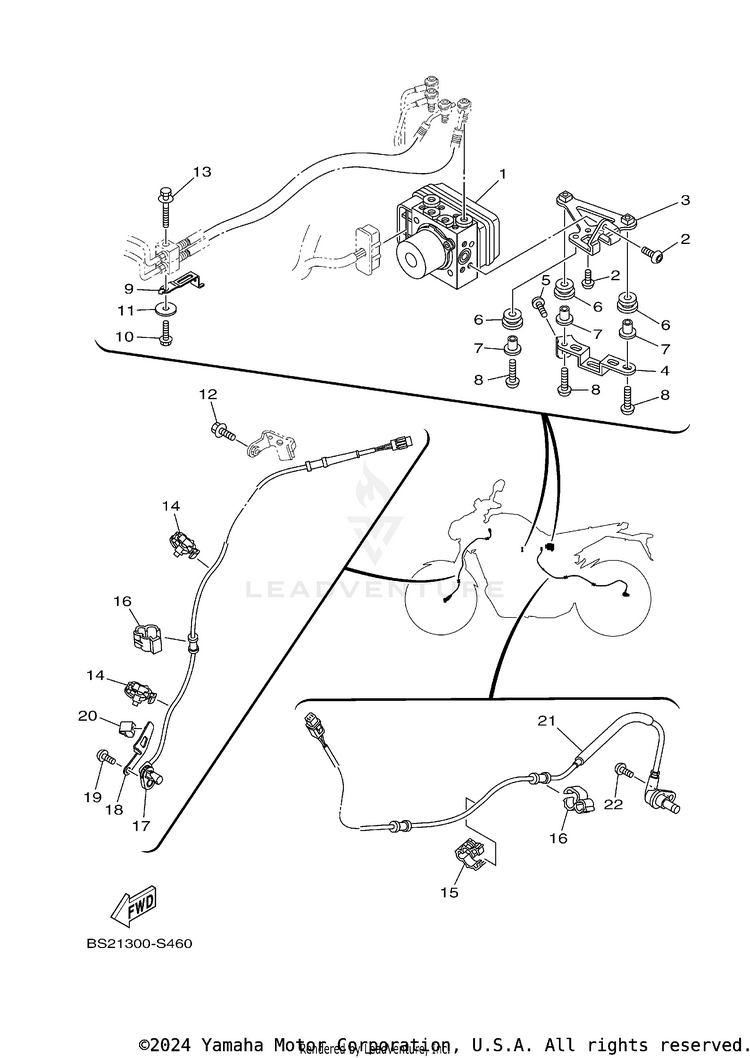

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B50-85930-05-00

(replaces part #
B50-85930-09-00)

HYDRAULIC UNIT ASSY$1,132.99$918.99Usually ships in 7-10 business days
292012-06010-00BOLT, BUTTON HEAD$4.65$4.0010+ In-Stock
32DR-85991-00-00BRACKET, UNIT$12.99$10.65Usually ships in 7-10 business days
42DR-85542-00-00BRACKET$11.49$9.42Usually ships in 7-10 business days
592012-06010-00

(replaces part #
90111-06085-00)

BOLT, BUTTON HEAD$4.65$4.0010+ In-Stock
690480-13567-00GROMMET$5.49$4.2810+ In-Stock
790387-06160-00COLLAR$4.35$3.92Usually ships in 7-10 business days
892012-06020-00BOLT, BUTTON HEAD$9.49$7.403 In-Stock
9BS2-85132-00-00BRACKET, REFLECTOR 1$6.49$5.84Usually ships in 7-10 business days
1095022-06025-00BOLT, FLANGE$1.90$1.6310+ In-Stock
1190201-087P8-00WASHER, PLATE$3.05$2.74Usually ships in 7-10 business days
1295817-06020-00

(replaces part #
90105-06557-00)

BOLT, FLANGE$3.50$3.0110+ In-Stock
1390119-06M55-00BOLT, WITH WASHER$4.45$4.00Usually ships in 7-10 business days
1490464-12013-00CLAMP$9.49$8.54Usually ships in 7-10 business days
1590464-14003-00CLAMP$39.99$32.79Usually ships in 7-10 business days
1690464-10233-00CLAMP$8.49$7.64Usually ships in 7-10 business days
17BS2-85970-01-00

(replaces part #
BS2-85970-00-00)

WHEEL SENSOR ASSY, FRONT$129.99$101.39Usually ships in 7-10 business days
18BS2-85542-00-00BRACKET$15.49$12.70Usually ships in 7-10 business days
1992017-06016-00BOLT, HEX. SOCKET BUTTON$9.49$7.4010+ In-Stock
2090464-05188-00CLAMP$5.49$4.94Usually ships in 7-10 business days
212DR-85980-02-00

(replaces part #
2DR-85980-01-00)

WHEEL SENSOR ASSY, R$139.99$109.19Usually ships in 7-10 business days
2292014-06014-00BOLT, BUTTON HEAD$4.05$3.486 In-Stock
