2018 Yamaha V-Max Meter OEM Parts Diagram

Submodel V-MAX - VMX17JCGY - 2018

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

METER

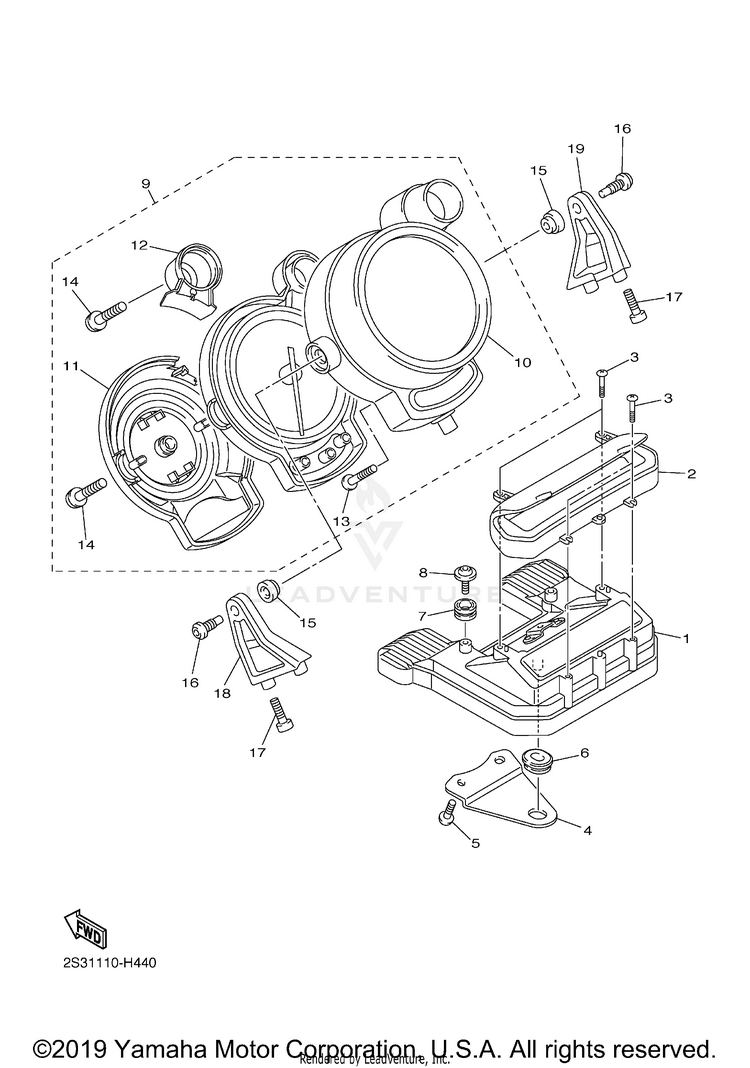

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12S3-8350A-00-00METER COMP. (MILE)$1,161.99$1,016.06Usually ships in 7-10 business days
22S3-83579-00-00COVER, METER 2$31.99$26.23Usually ships in 7-10 business days
397707-30014-00SCREW, TAPPING$0.85$0.76Usually ships in 7-10 business days
42S3-8355X-00-00BRACKET, METER 1$9.49$8.54Usually ships in 7-10 business days
592012-06012-00BOLT, BUTTON HEAD$4.70$4.0410+ In-Stock
690480-01558-00GROMMET$4.65$4.0010+ In-Stock
790480-14017-00GROMMET$5.49$4.94Usually ships in 7-10 business days
890111-06122-00BOLT, HEX. SOCKET BUTTON$6.49$5.84Usually ships in 7-10 business days
92S3-83580-01-00

(replaces part #
2S3-83580-00-00)

SPEEDOMETER ASSY$1,044.99$847.00Usually ships in 7-10 business days
102S3-8353E-00-00CASE, METER UPPER$376.99$312.93Usually ships in 7-10 business days
112S3-83508-00-00COVER, TACHOMETER$269.99$213.58Usually ships in 7-10 business days
122S3-8369W-00-00COVER$85.99$67.07Usually ships in 7-10 business days
134AS-83616-10-00SCREW, TAPPING$2.90$2.61Usually ships in 7-10 business days
142S3-83616-00-00SCREW, TAPPING$7.49$6.74Usually ships in 7-10 business days
1590480-11014-00GROMMET$6.49$5.842 In-Stock
1690111-08068-00BOLT, HEX. SOCKET BUTTON$6.49$5.84Usually ships in 7-10 business days
1791312-06014-00BOLT$5.49$4.2810+ In-Stock
182S3-23486-00-00STAY, PLATE$96.99$75.65Usually ships in 7-10 business days
192S3-23487-00-00STAY, PLATE$96.99$75.65Usually ships in 7-10 business days
