2018 Yamaha V-Max Rear Brake OEM Parts Diagram

Submodel V-MAX - VMX17JCGY - 2018

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

REAR BRAKE

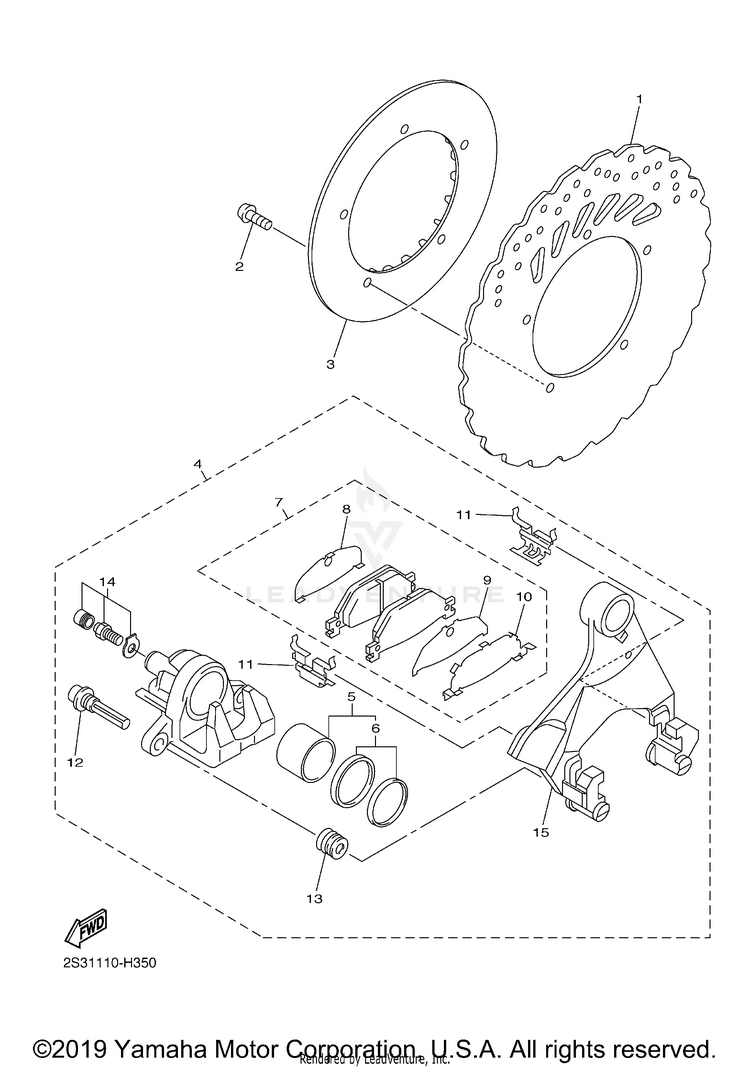

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12S3-2582W-00-00DISC, REAR BRAKE 2$232.99$181.73Usually ships in 7-10 business days
290149-08029-00

(replaces part #
90149-08024-00)

SCREW$5.49$4.286 In-Stock
32S3-2581A-10-00PLATE, DISC$183.99$145.60Usually ships in 7-10 business days
42S3-2580W-01-00CALIPER ASSY, REAR 2$280.99$232.73Usually ships in 7-10 business days
51D7-25802-00-00

(replaces part #
1D7-W0057-00-00)

PISTON ASSY, CALIPER$61.99$48.35Usually ships in 7-10 business days
65JW-25803-00-00

(replaces part #
5JW-W0047-00-00)

CALIPER SEAL KIT$17.99$14.75Usually ships in 7-10 business days
72S3-W0046-00-00BRAKE PAD KIT 2$56.99$44.45Usually ships in 7-10 business days
81B7-25828-00-00SHIM, CALIPER$2.70$2.43Not Shipping
91B7-25827-00-00SHIM, CALIPER$7.49$6.74Not Shipping
102S3-25827-00-00SHIM, CALIPER$18.49$15.16Usually ships in 7-10 business days
111D7-25919-00-00SUPPORT, PAD$19.99$16.39Usually ships in 7-10 business days
123P6-25914-00-00PIN, SLIDE$17.99$14.75Usually ships in 7-10 business days
134TT-25937-00-00BOOT 2$17.99$14.75Usually ships in 7-10 business days
145RU-W0048-00-00BLEED SCREW KIT$17.99$14.75Usually ships in 7-10 business days
152S3-25921-00-00BRACKET, SUPPORT$190.99$148.97Usually ships in 7-10 business days
