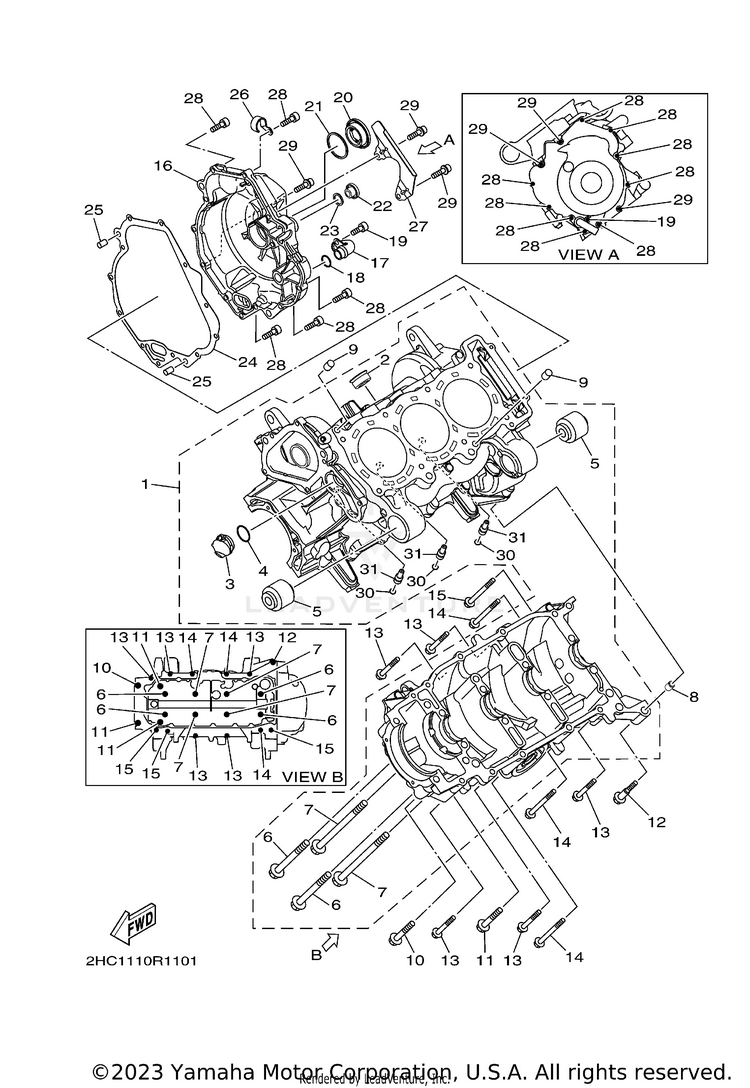

2018 Yamaha YXZ1000R SS Crankcase OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	2HC-15109-07-00 (replaces part # 2HC-15109-08-00)	CRANKCASE ASSY	$2,355.99	$2,240.42	Usually ships in 7-10 business days
2	90340-27129-00	PLUG, STRAIGHT SCREW	$5.99	$5.39	1 In-Stock
3	8ES-15167-00-00	PLUG, BLIND 1	$12.99	$10.13	1 In-Stock
4	93210-24709-00	O-RING	$10.49	$8.18
5	2HC-15541-00-00	COLLAR	$32.99	$27.05	Usually ships in 7-10 business days
6	90119-09004-00	BOLT, WITH WASHER	$12.49	$9.74	10+ In-Stock
7	90119-09011-00	BOLT, WITH WASHER	$46.99	$36.65	8 In-Stock
8	99530-10114-00 (replaces part # 99530-10014-00)	PIN, DOWEL	$2.65	$2.48	10+ In-Stock
9	99530-10114-00	PIN, DOWEL	$2.65	$2.48	10+ In-Stock
10	95817-08055-00 (replaces part # 95812-08055-00)	BOLT, FLANGE	$4.21	$3.62	10+ In-Stock
11	95817-08070-00 (replaces part # 95812-08070-00)	BOLT, FLANGE	$4.90	$4.21	6 In-Stock
12	90109-06185-00	BOLT	$9.49	$8.54	3 In-Stock
13	95812-06055-00	BOLT, FLANGE	$1.90	$1.84	10+ In-Stock
14	95812-06080-00	BOLT, FLANGE	$9.49	$8.54	9 In-Stock
15	95817-06080-00 (replaces part # 90105-06123-00)	BOLT, FLANGE	$5.49	$4.94	3 In-Stock
16	B5H-15421-00-00	COVER, CRANKCASE 2	$109.99	$85.79	Usually ships in 7-10 business days
17	2HC-13115-00-00	CONNECTOR, SUCTION PIPE	$32.99	$25.73	2 In-Stock
18	93210-14003-00	O-RING	$9.49	$7.40	10+ In-Stock
19	91312-06014-00	BOLT	$5.49	$4.28	10+ In-Stock
20	90340-36004-00	PLUG, STRAIGHT SCREW	$20.99	$16.37	8 In-Stock
21	93210-35804-00 (replaces part # 93210-357A3-00)	O-RING	-	$8.17	10+ In-Stock
22	90340-14016-00	PLUG, STRAIGHT SCREW	$19.49	$15.20	8 In-Stock
23	93210-14369-00	O-RING	$8.49	$6.62	10+ In-Stock
24	2HC-15461-00-00	GASKET, CRANKCASE COVER 2	$19.99	$15.59	6 In-Stock
25	99530-08012-00	PIN, DOWEL	$6.99	$5.45	10+ In-Stock
26	90462-08225-00	CLAMP	$9.49	$8.54	Usually ships in 7-10 business days
27	B5H-15191-00-00	PLATE	$14.49	$11.88	Usually ships in 7-10 business days
28	91317-06025-00 (replaces part # 91312-06025-00)	BOLT, HEXAGON SOCKET HEAD	$2.65	$2.28	10+ In-Stock
29	90110-06195-00 (replaces part # 90110-06329-00)	BOLT, HEXAGON SOCKET HEAD	$6.49	$5.84	5 In-Stock
30	93210-04092-00	O-RING	$4.05	$3.48	7 In-Stock
31	4XV-15155-00-00	N/A PER YMC	$5.49	$4.94	Usually ships in 7-10 business days
