2018 Yamaha YXZ1000R SS Frame OEM Parts Diagram

Submodel YXZ100R EPS SS - YXZ10YEXJD - 2018

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME

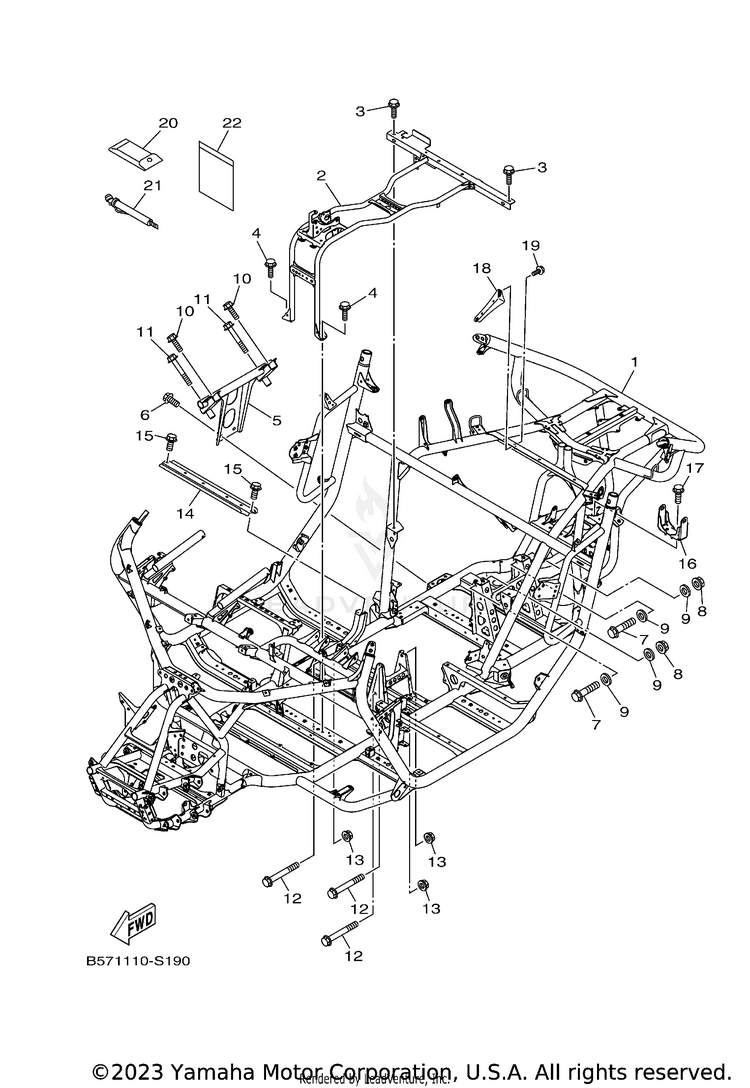

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12HC-F1110-50-00FRAME COMP.$5,271.99$5,271.99Usually ships in 7-10 business days
2B57-F111B-00-00FRAME SUB COMP.$157.99$124.60Usually ships in 7-10 business days
395817-08016-00

(replaces part #
95812-08016-00)

BOLT,FLANGE (JN5)$5.49$4.2810+ In-Stock
490105-08867-00BOLT, FLANGE$1.95$1.765 In-Stock
52HC-F110A-00-00ENG. MOUNT COMP.$50.99$39.77Usually ships in 7-10 business days
695812-10016-00BOLT, FLANGE$10.49$8.1810+ In-Stock
795812-12070-00BOLT, FLANGE$5.49$4.94Usually ships in 7-10 business days
890185-12002-00NUT, SELF-LOCKING$13.49$10.5210+ In-Stock
992990-12200-00

(replaces part #
92902-12200-00)

WASHER, PLAIN$9.49$7.406 In-Stock
1095812-08020-00BOLT, FLANGE$2.80$2.4110+ In-Stock
1195817-08055-00

(replaces part #
95812-08055-00)

BOLT, FLANGE$4.21$3.6210+ In-Stock
1290105-10176-00BOLT, FLANGE$13.49$10.5210+ In-Stock
1395602-10200-00NUT, S/L FLANGE$2.70$2.3210+ In-Stock
142HC-F1349-11-00

(replaces part #
2HC-F1349-10-00)

BRACKET, SEAT$17.99$14.75Usually ships in 7-10 business days
1595817-08025-00

(replaces part #
95812-08025-00)

BOLT, FLANGE$9.49$7.4010+ In-Stock
162HC-F194J-00-00STAY, MUFFLER$19.99$16.39Usually ships in 7-10 business days
1795812-10016-00BOLT, FLANGE$10.49$8.1810+ In-Stock
182HC-F115C-01-00BRACKET$11.99$9.83Usually ships in 7-10 business days
1995817-06016-00

(replaces part #
95812-06016-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
205B4-F8100-00-00TOOL KIT$47.99$39.35Usually ships in 7-10 business days
211XD-F811A-00-00GAUGE, AIR$7.49$6.74Usually ships in 7-10 business days
221P0-F8186-01-00POUCH$2.90$2.492 In-Stock
