2019 Yamaha MT-10 Electrical 1 OEM Parts Diagram

Submodel MT10 - MT10KCB - 2019

Shop Aftermarket Parts

ELECTRICAL 1

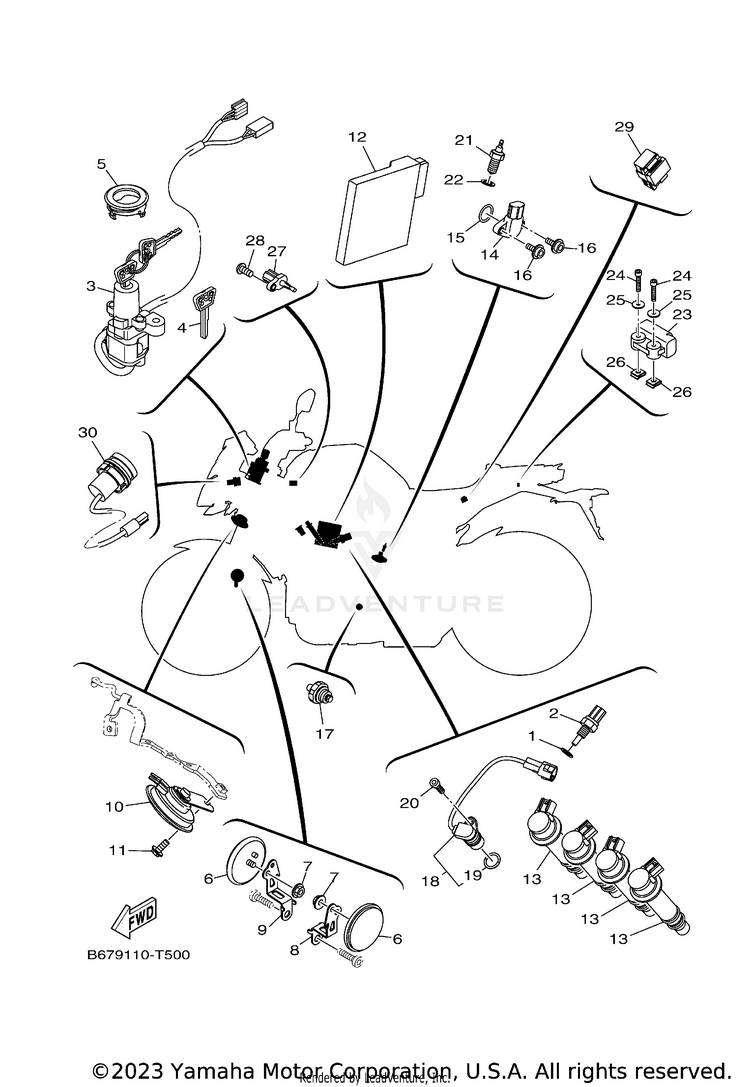

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
190430-10004-00GASKET$7.49$5.8410+ In-Stock
252B-H3591-00-00

(replaces part #
4P9-83591-00-00)

THERMO UNIT$37.99$29.6310+ In-Stock
3B67-82501-11-00

(replaces part #
B67-82501-10-00)

MAIN SWITCH STEERING LOCK$174.99$136.49Usually ships in 7-10 business days
44BH-82511-09-00BLANK KEY | AP$33.99$26.517 In-Stock
536P-82552-00-00CAP, SWITCH$16.49$13.52Usually ships in 7-10 business days
64AG-85111-00-00REFLECTOR, FRONT 1$16.49$13.52Usually ships in 7-10 business days
795702-06500-00NUT, WITH WASHER$2.60$2.2410+ In-Stock
82CR-85112-00-00BRACKET, REFLECTOR 1$24.99$20.49Usually ships in 7-10 business days
92CR-85122-00-00BRACKET, REFLECTOR 2$28.99$23.77Usually ships in 7-10 business days
10B67-83371-00-00HORN$76.99$60.05Usually ships in 7-10 business days
1195817-06012-00

(replaces part #
95812-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
12B67-8591A-51-00

(replaces part #
B67-8591A-50-00)

ENGINE CONTROL UNIT$2,013.99$1,633.90Usually ships in 7-10 business days
13B67-82310-00-00IGNITION COIL ASSY$146.99$114.65Usually ships in 7-10 business days
142CR-85899-10-00SENSOR, GEAR POSITION$123.99$96.71Usually ships in 7-10 business days
1593210-17008-00O-RING$2.65$2.38Usually ships in 7-10 business days
1690110-05038-00

(replaces part #
90110-05067-00)

BOLT, HEXAGON SOCKET HEAD$8.49$6.6210+ In-Stock
171WS-82504-01-00

(replaces part #
1WS-82504-00-00)

OIL PRESSURE SWITCH ASSY$76.99$60.05Usually ships in 7-10 business days
185VY-85896-02-00

(replaces part #
5VY-85896-01-00)

SENSOR, CAM POSITION$155.99$121.67Usually ships in 7-10 business days
194D9-81168-00-00O-RING$7.49$5.845 In-Stock
2091314-06020-00

(replaces part #
90110-06175-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.5710+ In-Stock
213GB-82540-01-00NEUTRAL SWITCH ASSY$63.99$49.9110+ In-Stock
2290430-10148-00GASKET$5.99$4.6710+ In-Stock
235PS-82576-02-00

(replaces part #
5PS-82576-01-00)

SENSOR, LEAN ANGLE$96.99$75.658 In-Stock
2491312-04025-00BOLT, HEXAGON SOCKET HEAD$1.95$1.682 In-Stock
2590201-04030-00WASHER, PLATE$2.40$2.0610+ In-Stock
2690183-04039-00NUT, spring$8.49$7.64Usually ships in 7-10 business days
275YU-85886-00-00SENSOR, AIR TEMPERATURE$37.99$29.6310+ In-Stock
2897780-50116-00

(replaces part #
97702-50516-00)

SCREW, TAPPING$1.49$1.288 In-Stock
295DM-81950-01-00

(replaces part #
5DM-81950-00-00)

RELAY ASSY (G8HN-1C4T-DJ-Y52)$31.99$24.9510+ In-Stock
30B67-8254B-01-00TERMINAL COMP.$70.99$55.37Usually ships in 7-10 business days
