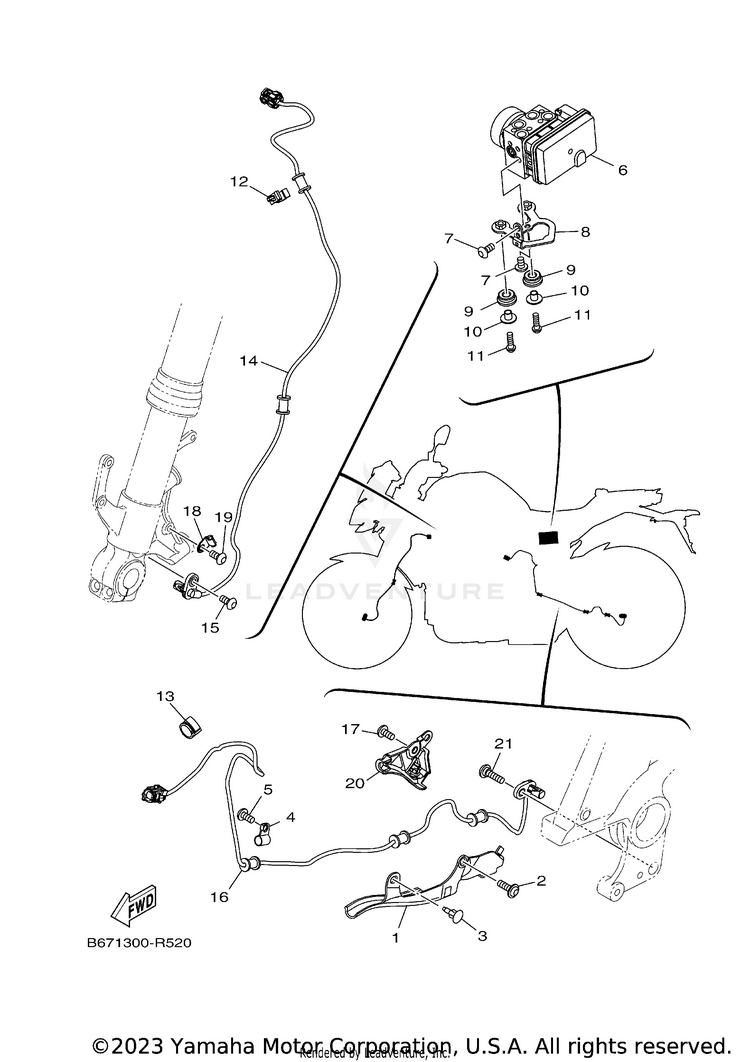

2019 Yamaha MT-10 Electrical 3 OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	2CR-2219X-00-00	COVER	$16.49	$13.52	Usually ships in 7-10 business days
2	92012-06016-00	BOLT, BUTTON HEAD	$9.49	$7.40	7 In-Stock
3	90269-07007-00	RIVET	$4.40	$3.78	7 In-Stock
	AFTERMARKET ALTERNATIVE	$6.99	$4.99	10+ In-Stock
4	B67-2216F-00-00	HOOK	$9.49	$8.54	Usually ships in 7-10 business days
5	92017-06012-00	BOLT, BUTTON HEAD	-	$3.58	4 In-Stock
6	B67-85930-08-00 (replaces part # B67-85930-09-00)	HYDRAULIC UNIT ASSY	$883.99	$771.29	Usually ships in 7-10 business days
7	92012-06010-00	BOLT, BUTTON HEAD	$4.65	$4.00	10+ In-Stock
8	B67-85991-00-00	BRACKET, UNIT	$17.49	$14.34	Usually ships in 7-10 business days
9	90480-13567-00	GROMMET	$5.49	$4.28	10+ In-Stock
10	90387-06160-00	COLLAR	$4.35	$3.92	Usually ships in 7-10 business days
11	92012-06020-00	BOLT, BUTTON HEAD	$9.49	$7.40	3 In-Stock
12	90464-09129-00	CLAMP	$2.30	$2.07	Usually ships in 7-10 business days
13	90464-16003-00	CLAMP	$7.99	$7.19	Usually ships in 7-10 business days
14	2CR-85970-01-00 (replaces part # 2CR-85970-00-00)	WHEEL SENSOR ASSY, F	$145.99	$113.87	Usually ships in 7-10 business days
15	92017-06014-00	BOLT, BUTTON HEAD	$4.60	$3.96	6 In-Stock
16	2CR-85980-01-00 (replaces part # 2CR-85980-00-00)	WHEEL SENSOR ASSY, R	$179.99	$140.39	Usually ships in 7-10 business days
17	92014-06012-00	BOLT, BUTTON HEAD	$3.55	$3.05	5 In-Stock
18	2CR-23317-00-00	HOLDER, CABLE	$10.49	$8.60	Usually ships in 7-10 business days
19	92017-06014-00	BOLT, BUTTON HEAD	$4.60	$3.96	6 In-Stock
20	2CR-27491-01-00 (replaces part # 2CR-27491-00-00)	PROTECTOR	$16.49	$13.52	Usually ships in 7-10 business days
21	90109-06234-00	BOLT	$8.49	$7.64	Usually ships in 7-10 business days
