2019 Yamaha MT-10 Starter OEM Parts Diagram

Submodel MT10 - MT10KCGY - 2019

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTER

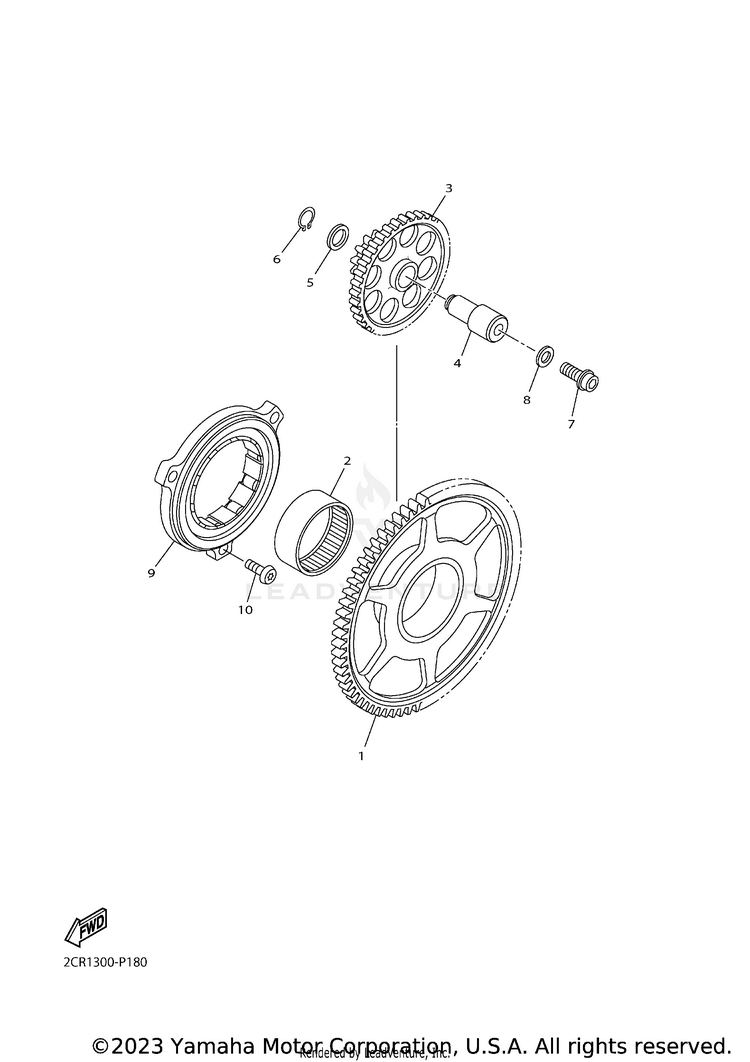

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12CR-15515-00-00GEAR 3$161.99$126.35Usually ships in 7-10 business days
293310-24160-00BEARING$39.99$32.79Usually ships in 7-10 business days
32CR-15517-01-00GEAR, IDLER 2$150.99$117.77Usually ships in 7-10 business days
42CR-15521-00-00SHAFT 1$37.99$31.15Usually ships in 7-10 business days
590201-09013-00WASHER, PLATE$2.75$2.48Usually ships in 7-10 business days
693410-09094-00CIRCLIP$2.80$2.52Usually ships in 7-10 business days
790110-06248-00

(replaces part #
90110-06401-00)

BOLT, HEXAGON SOCKET HEAD$4.05$3.488 In-Stock
890430-06014-00GASKET$8.99$7.0110+ In-Stock
914B-15570-00-00STARTER CLUTCH ASSY$190.99$148.97Usually ships in 7-10 business days
1090149-06156-00

(replaces part #
90149-06158-00)

SCREW$9.49$8.54Usually ships in 7-10 business days
